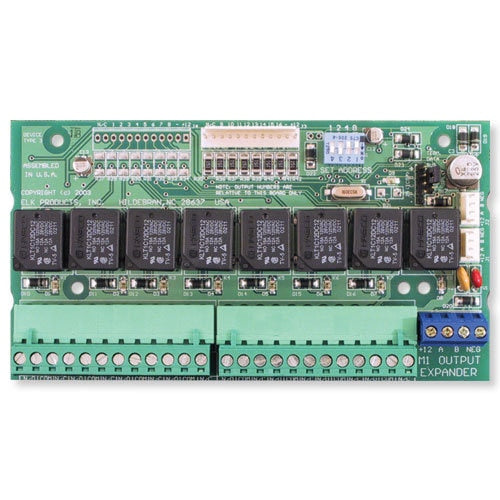

Elk M1 16 Output Expander (8 Relays, 8 Voltage Outputs)
ELKM1XOVR
$188.50
Add More Outputs To The M1 Controller
The ELKM1XOVR adds an additional 8 voltage outputs and 8 relay outputs to the Elk M1 controller. It operates on the 4-wire data bus and features flash memory for field updating of the operating firmware. The M1 (Gold) controller can be expanded to a total of 208 outputs.
- 8 Voltage Outputs
- 8 Single-Pole, Double-Pole Relay Outputs
- Operates on the 4-Wire Data Bus
- DIP Switch Address Settings
- Flash Memory for Firmware Updating
- One (1) – Twelve (12) Conductor "Flying Lead" Wire Harness
- Voltage Outputs may be converted to Relays using M1RB Relay Boards
- Status LED with Diagnostic Display
- Mounts in Enclosure using ELK-SWG Glides, SWP or SWP3 Structured Wire Plates, or Double Sided Foam Tape
M1 Cross Platform Control
