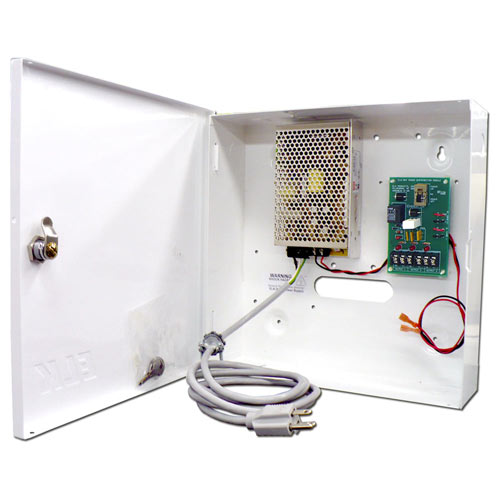

  • Elk DC Power Supply & Battery Charger, 4 Amp, 12 Volt

    ELKP412

    Send Power to 3 Sets of DC Terminals

    The ELK DC Power Supply & Battery Charger (4 Amp, 12 Volt) is a complete switching power supply kit. Three individual PTC-protected outputs deliver 12VDC power to three sets of DC power terminals, perfect for a variety of alarm, surveillance, and access control applications. One LED for each set indicates whether or not voltage is present. The kit also features automatic resetting overload protection, a master On/Off switch, and automatic low battery cut-off to prevent the backup battery from going into a deep discharge.

    • Switching power supply for security applications requiring up to 4 Amps
    • Distributes 12VDC power to 3 sets of DC power terminals
    • LEDs indicate status of each individual terminal set
    • Built-in AC/DC surge suppression and auto-reset overload protection
    • Auto low battery cut-off protects backup battery

    Cont

    • Manufacturer Part #: ELK-P412
    • DC Output: 12 Volts D.C. Regulated
    • AC Input Voltage Range: 85~264 VAC @ 47-63Hz
    • Continuous Current Rating: 4 Amps
    • Low Battery Cutoff: approx. 10 Volts
    • Ripple and Noise: 100mV p-p
    • Enclosure Dimensions: 12(W) x 12(H) x 3.5(D) inches
    • Warranty: Lifetime Limited
