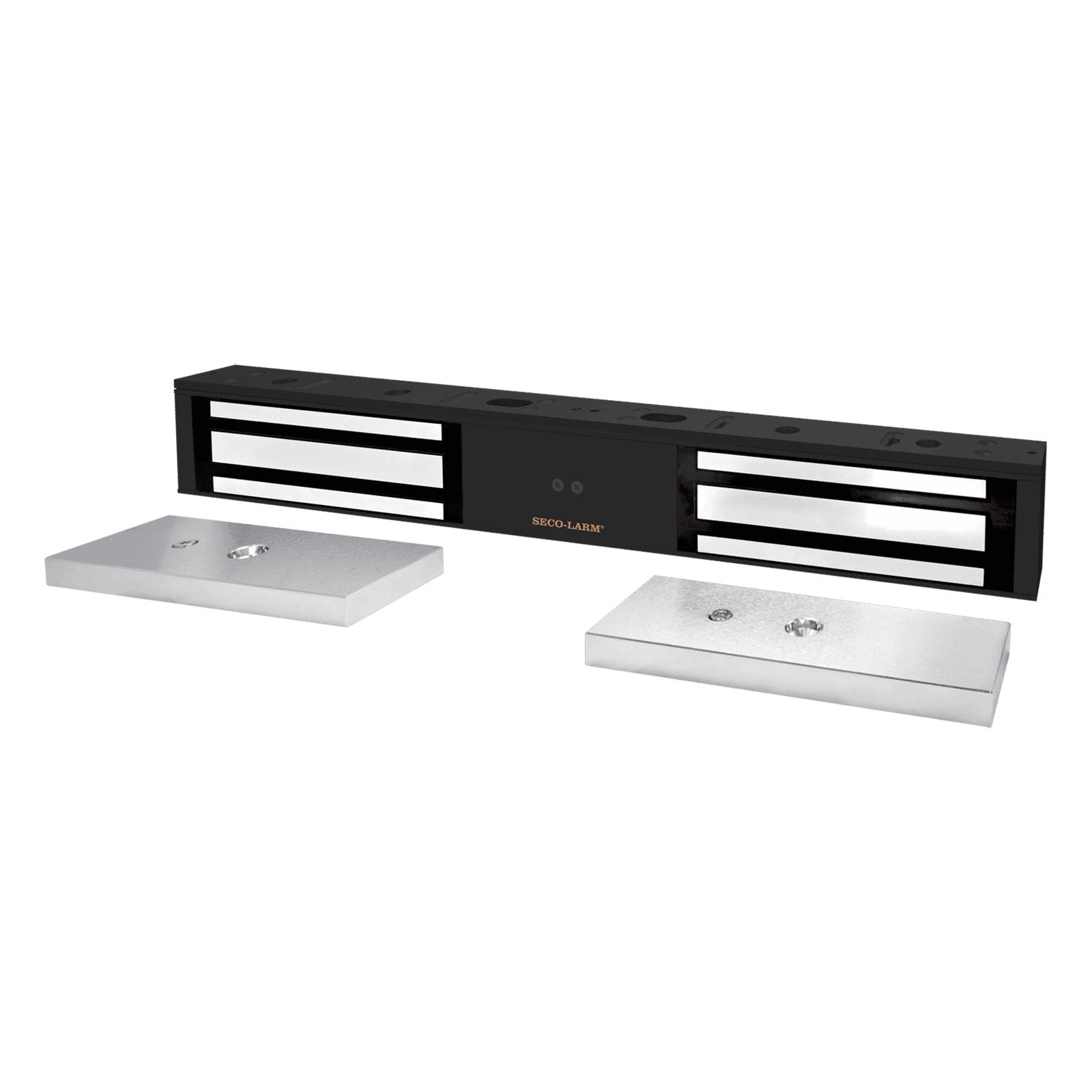

  • Seco-Larm Enforcer Double Door Electromagnetic Lock, Bond Sensor, 1,200 Lbs. Black

    SEE941DB1K2P

    Notify me when this product is available:

    Secure A Double Door With 1,200 Pounds Of Resistance

    Using 1,200 pounds (545kg) of electromagnetic holding force, the Seco-Larm Enforcer Double Door Electromagnetic Lock with Bond Sensor, 1,200 Lbs, Black, is the perfect solution for securing a double door in a standard indoor application. This 1,200-lb magnetic door lock is housed in anodized aluminum (black finish) and comes with various features to monitor the status of the door including a built-in bond sensor with 3A dry relay output and built-in color status LEDs. It also features MOV surge protection to ensure long-term reliability and includes a detachable faceplate, an adjustable mounting bracket, and all the mounting hardware needed to make installation quick and easy.

    • Secures a door with 1,200 pounds (545kg) of holding force
    • Built-in status LEDs and bond sensor with 3A@12VDC dry relay output
    • Reliable security with MOV surge protection
    • Easy wiring
    • Manufacturer Part #: E-941DB-1K2P
    • UPC: 676544021957
    • Color: Black
    • Holding Force: 1200-lb (545kg) per door
    • Operating Voltage: 12/24 VDC (selectable)
    • Current Draw: 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total)
    • Bond Sensor Relay: Yes
    • Status LED: Yes
    • Operating Temperature: 32°~120° F (0°~49° C)

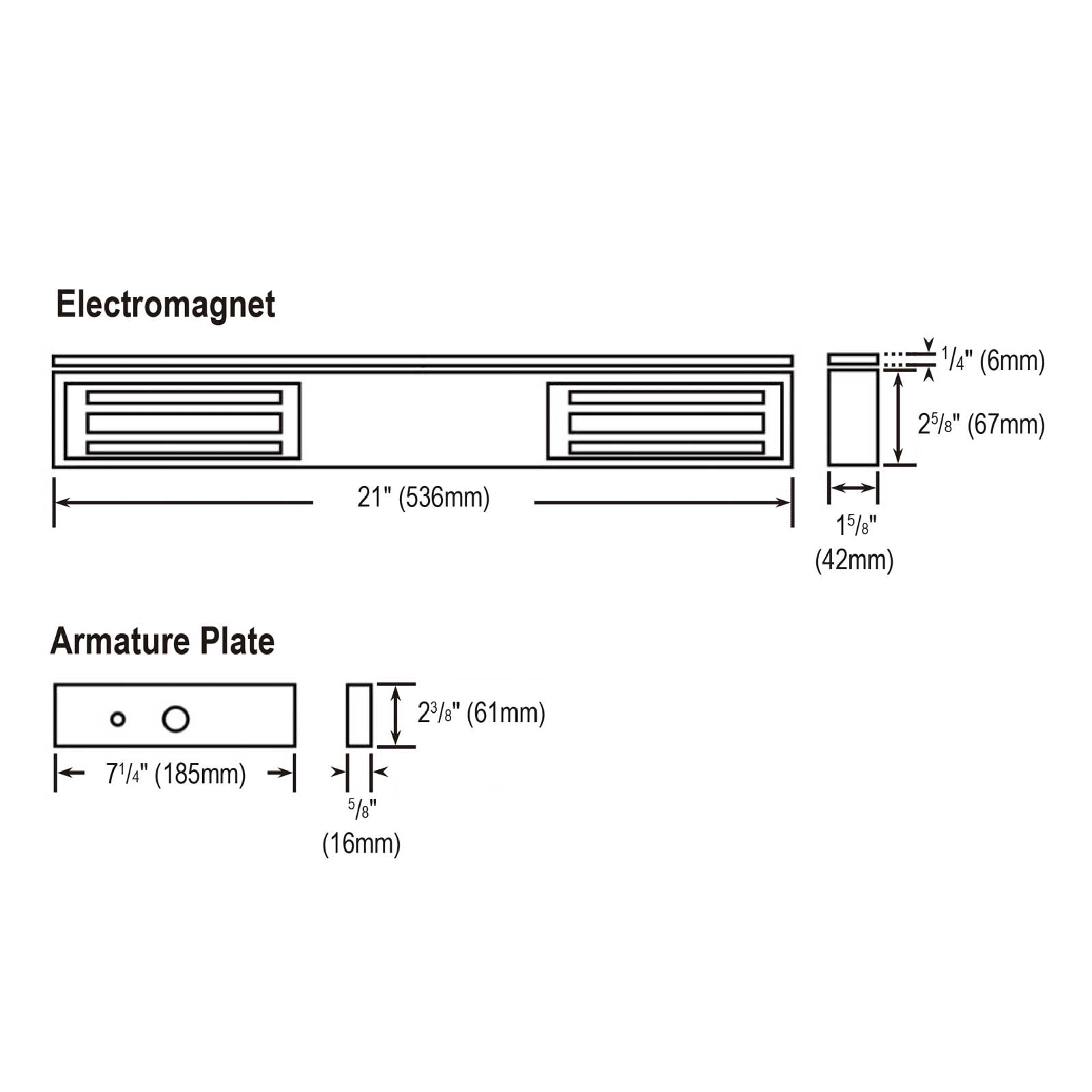

    • Electromagnetic Dimensions: 21" x 2-5/8" x 1-5/8" (536x67x42 mm)
    • Armature Dimensions: 7-1/4"x2-3/8"x5/8" (185x61x16 mm)
    • Destructive Attack: Level I
    • Line Security: Level I
    • Standby Power: Level I
    • Endurance: Level IV
    • Weight: 21-lb 6-oz (10kg)
