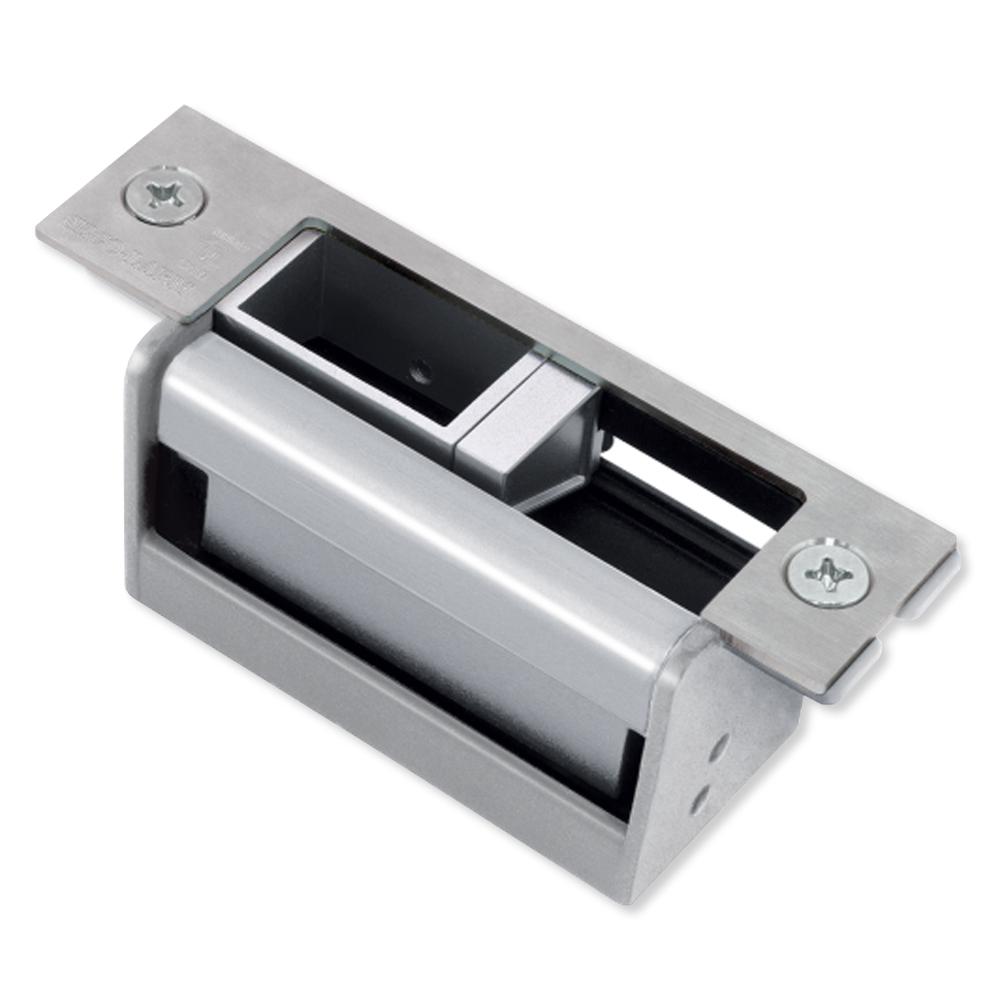

  • Seco-Larm Electric Door Strike with Vertical Adjustment

    SESD996CNUVQ

    Compatible With Almost Any Lock Type

    The Seco-Larm Electric Door Strike with Vertical Adjustment is designed to work with a wide variety of lock types such as cylindrical, mortise, and mortise exit devices. It can be configured for metal, aluminum, or wooden doors and for fail-safe or fail-secure applications. Included is a trim plate to hide gaps during installation and five (5) ANSI-sized stainless steel faceplates to match the door lock type. This electric door strike also has a reversible non-handed design, which allows it to fit either right-handed or left-handed doors.

    • Deadbolt opening with vertical adjustment, sliding shim keeper, and deadlatch ramp accommodates a wide range of locks

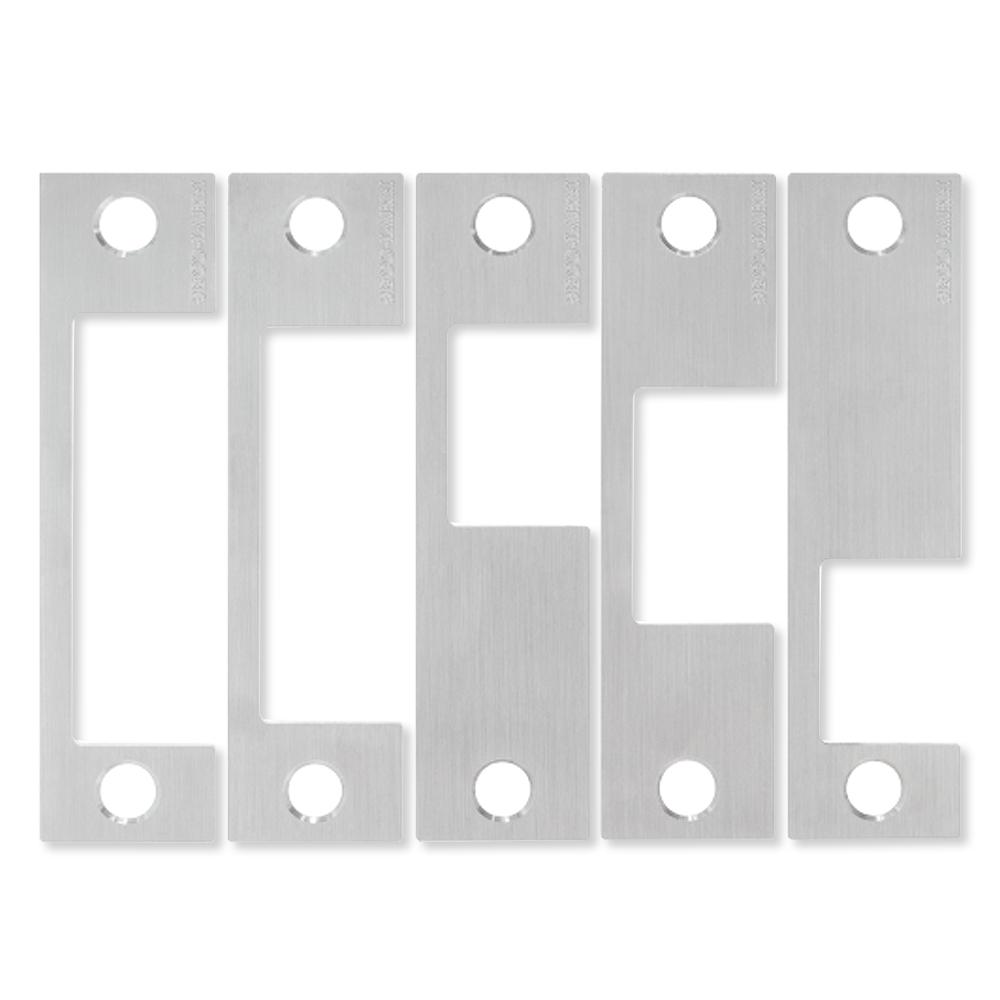

    • Includes 5 different stainless-steel ANSI faceplates
    • Includes a trim plate to hide gaps during installation
    • Can be configured for fail-safe or fail-secure applications
    • Fits right-handed or left-handed metal, alumi
    • Manufacturer Part #: SD-996C-NUVQ
    • Operating Voltage: 12/24 VDC
    • Current Draw: 300mA at 12VDC, 150MA at 24VDC
    • Operating Temperature: 14° to 113°F (-10° to 45°C)
    • Operating Humidity: 0 to 85 percent
    • Static Strength: 1,000 pounds
    • Latch Throw: 1 inch (25mm) max. with 1/8-inch (3mm) door gap
    • Dimensions: 1-13/16 x 1-5/8 x 3-5/16 inches (47 x 42 x 84 mm)
    • Approvals: RoHS, UL, CE
    • Warranty: 3-Year Limited
