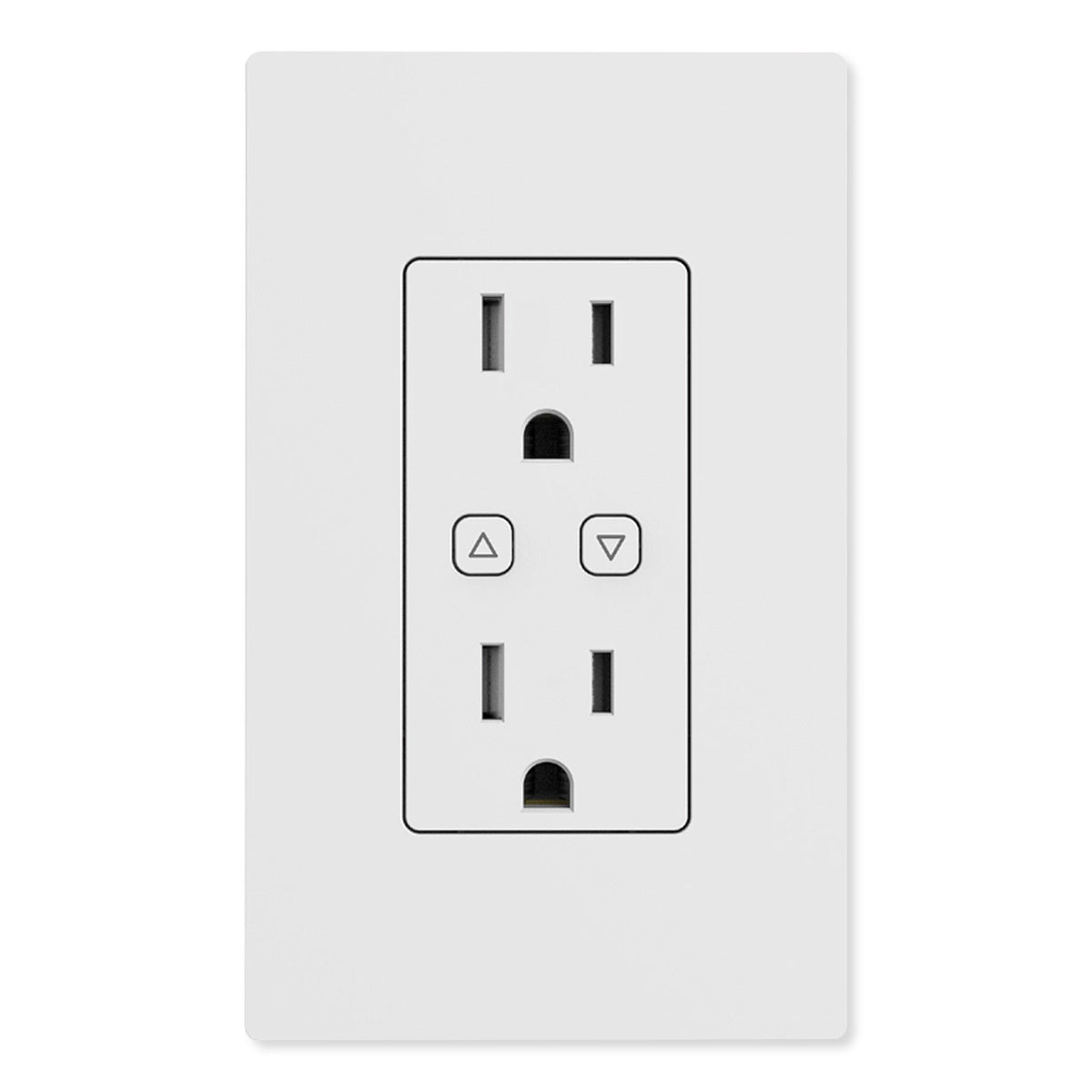

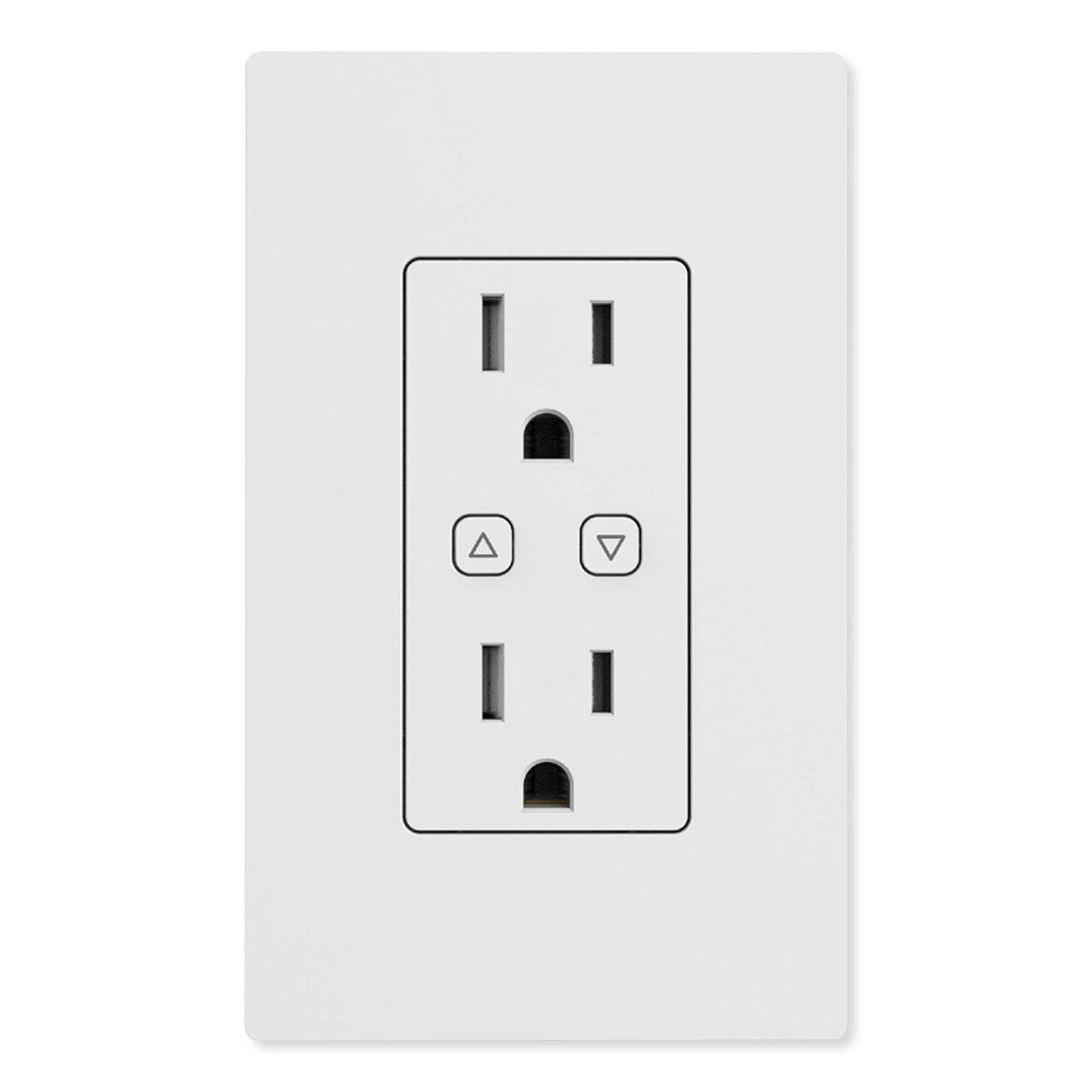

Qolsys IQ Smart Socket PowerG

Convert a Standard Outlet into a Smart Qolsys Controlled Outlet

Add virtually any plug-in device to your PowerG compatible smart system with the Qolsys IQ Smart Socket, PowerG! This smart PowerG compatible outlet allows plug-in devices using a combined amperage of up to 15A to be remotely controlled and included into a PowerG compatible system, such as the Qolsys IQ 4 Hub or IQ4 NS Panel. Devices plugged into either receptacle of the Smart Socket can be controlled by on-demand or automated On/Off commands from a connected switch, the outlet itself, a PowerG controller, or from a smart mobile device via the Alarm.com app. Each receptacle can be independently turned On/Off to protect the Smart Socket and conserve energy usage. Two buttons with built-in LED indicators between the receptacles show the status of plugged in devices and which outlet the button commands and reports the status of. The IQ Smart Socket, PowerG combines a sleek, modern aesthetic with reliable wireless technology to add intuitive smart home control to select plug in devices in your home.

• PowerG connected smart outlet adds remote On/Off control of plugged-in devices
• Supports up to 1800W@120V resistive load per outlet, and 120VAC, 60Hz,15A max load between both outlets
• Integrated buttons show plugged-in device status and can enable/disable power to the outlets
• Easily integrates into PowerG networks and sends/receives PowerG signals up to 2000 ft
• Integrate the Socket into automated scenes or scheduled routines
• Compatible with PowerG enabled IQ Panel 4, IQ4 Hub and IQ4 NS Panels running V4.4.1 and higher and IQ PRO panels running V4.3.0n and higher

Alarm.Com App

Every Qolsys security and automation system is monitored by Alarm.com and can be controlled remotely with your smartphone or tablet using the Alarm.com mobile app (Android, iOS, Windows, and Blackberry). Monitor and control your smart home in real-time and from anywhere to arm or disarm your security system, control individual devices, lock or unlock your smart doors, watch live video from your cameras, activate preprogrammed scenes or scheduled routines and much more!

Installation Details

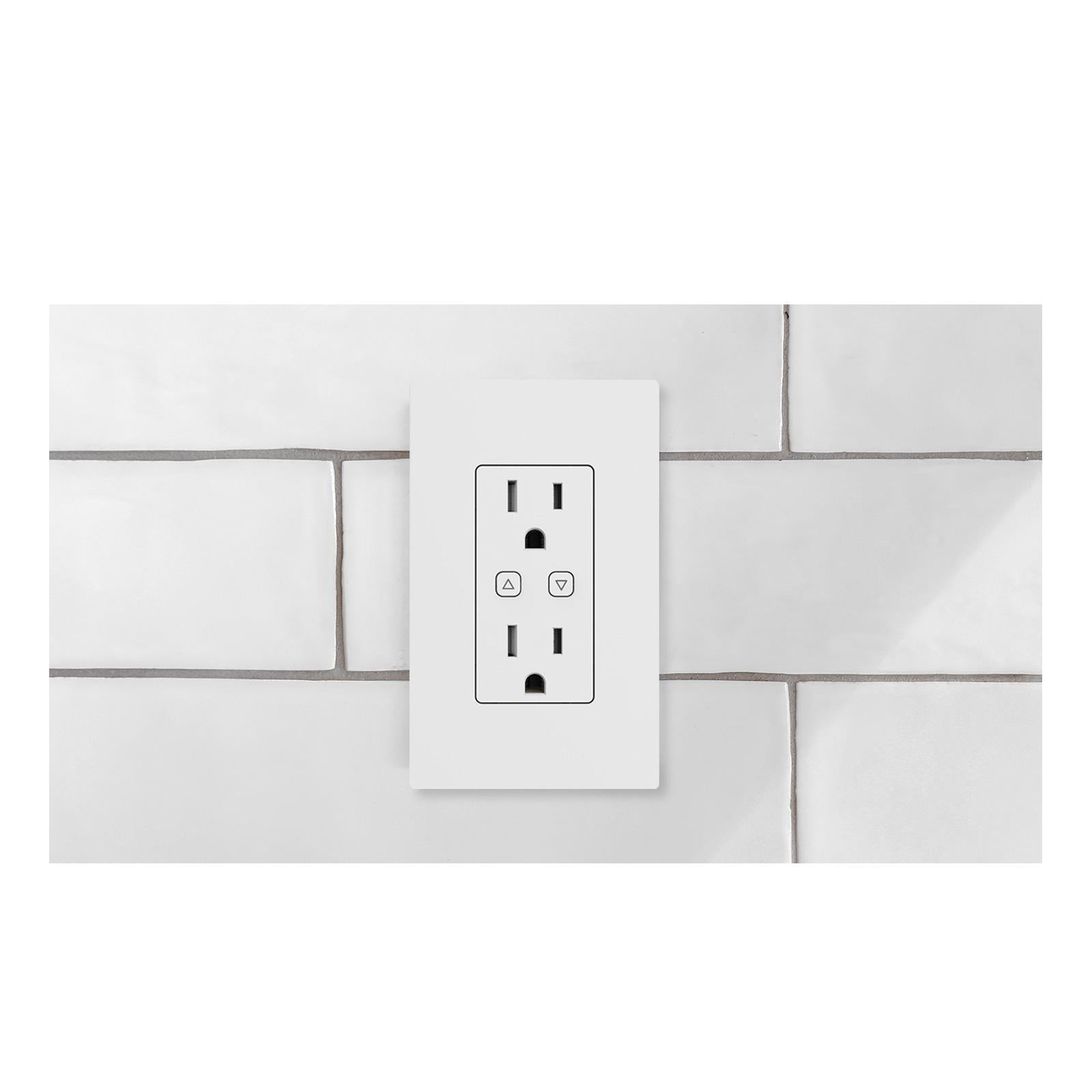

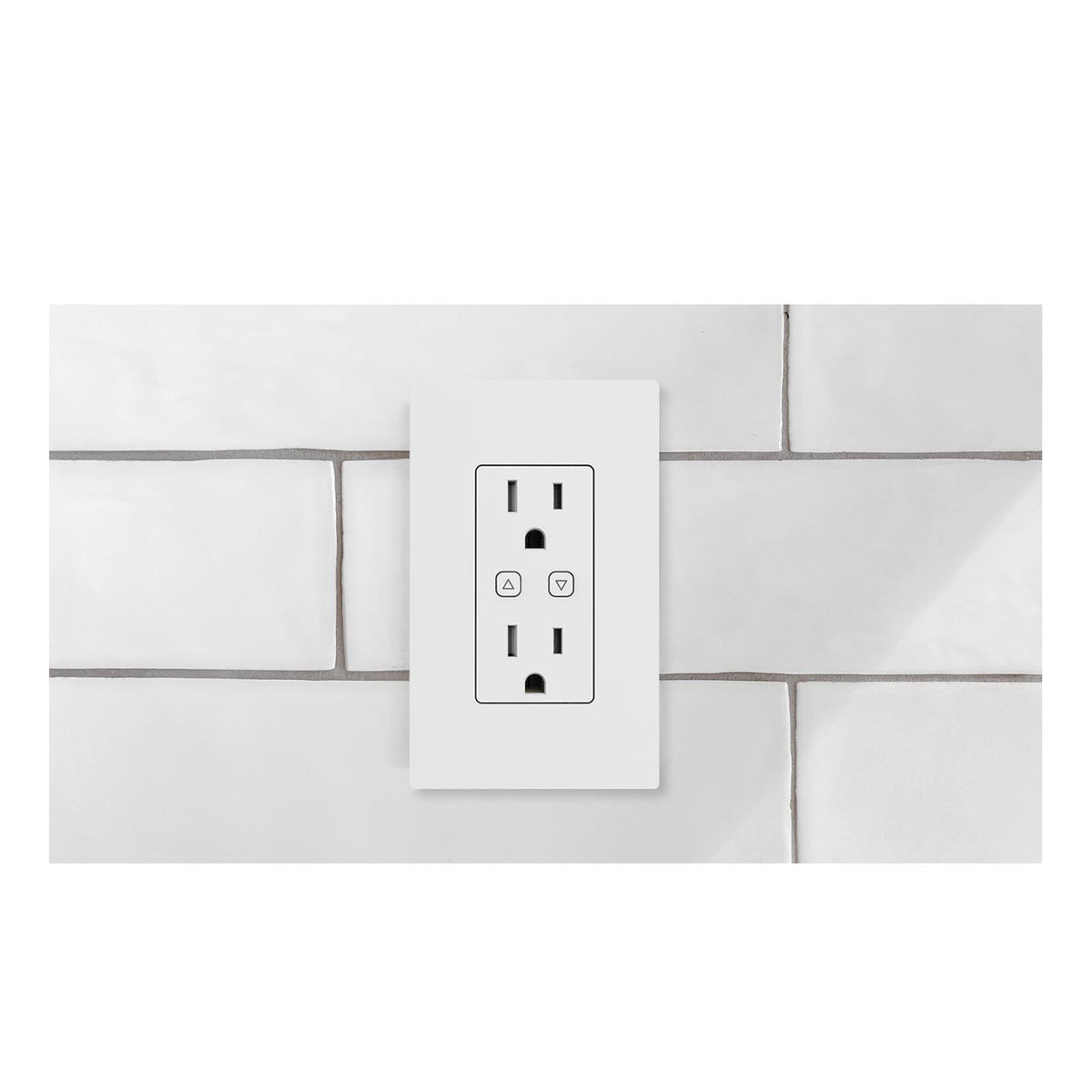

The IQ Smart Socket fits into a single-gang installation and replaces an existing outlet. Easily add the Socket into your Qolsys system through buttons inputs on the socket listed in the instructions or by scanning the QR code printed on the box label. Neutral wiring is required for installation.

Contents

• IQ Smart Socket

Notes

• The device is designed for indoor use in dry locations only.
• The total current limit of the device is 15 Amps. Do not exceed this limit, as it can damage the outlet and pose a safety hazard. To avoid overloading the outlet, ensure that the combined current of all connected devices does not exceed 15 Amps.

Qolsys: All In One. Always Connected.

Founded in 2010 with the mission to improve lives through technology, Qolsys develops innovative life safety, security, and home control devices built to set a higher standard for the industry. Qolsys products are flexible, intuitive, and reliable. As Qolsys says, "There's never been a better time to get connected."
