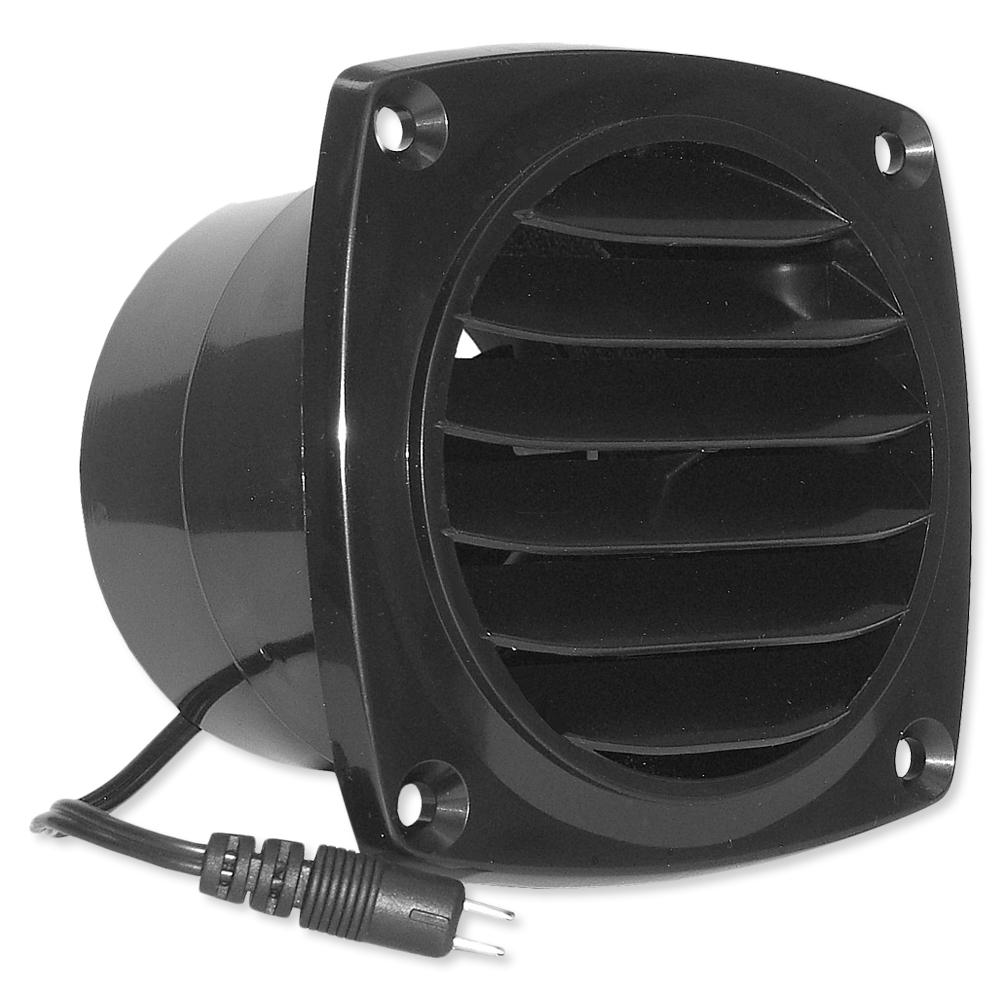

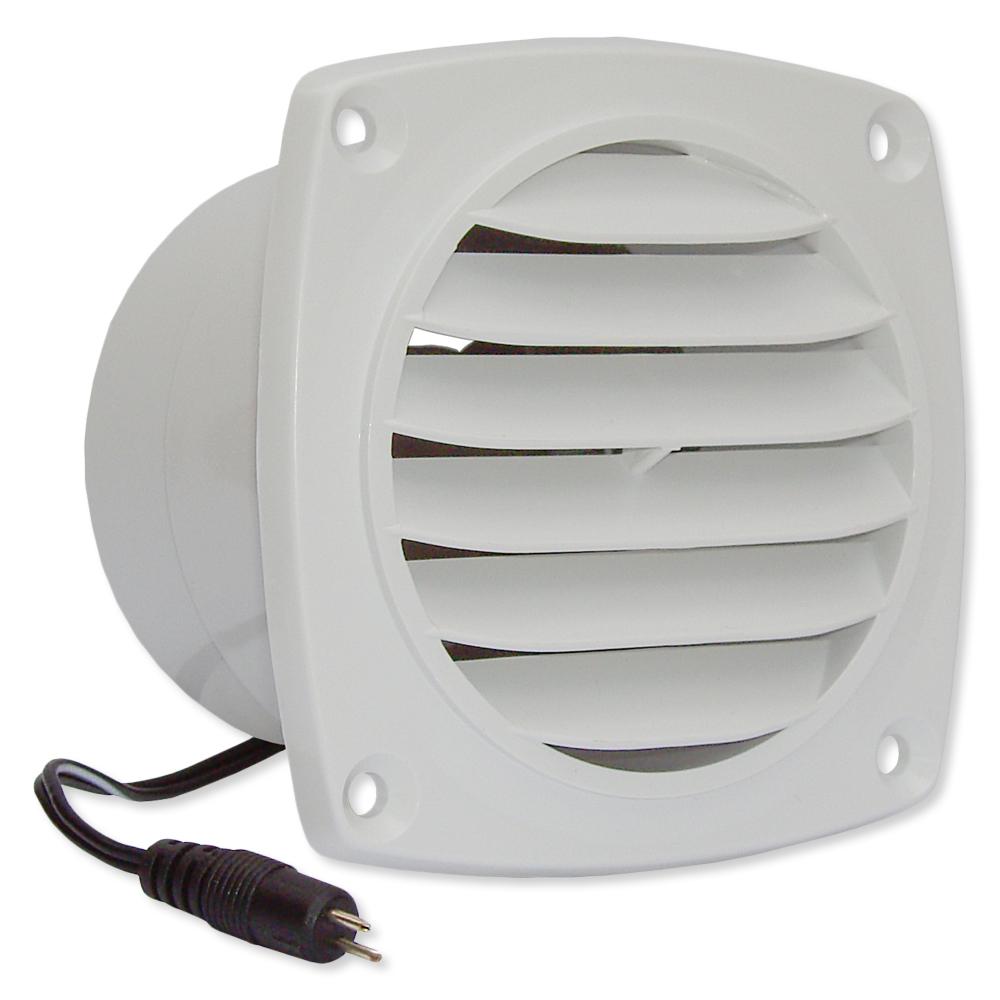

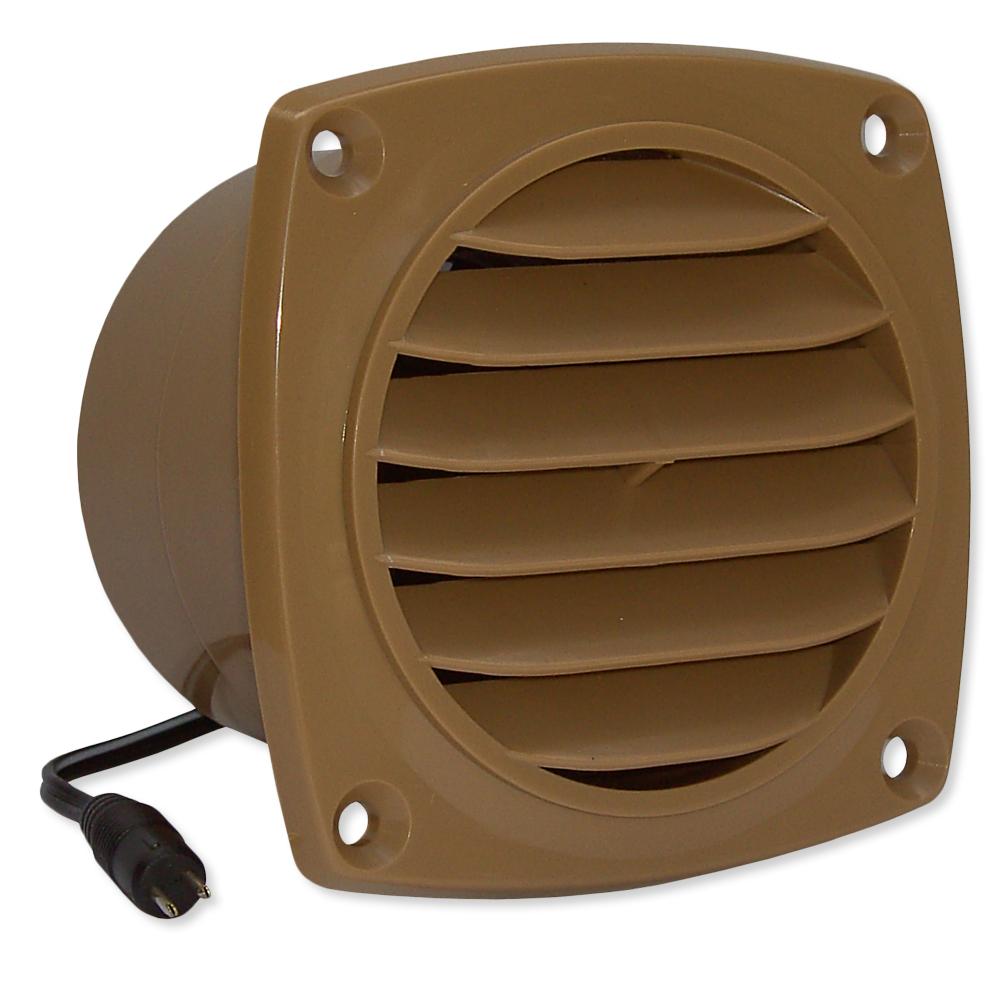

  • Cool Components Cabinet Vent

    CCVSCVBLK

    Color
    Black
    Tan
    White

    Notify me when this product is available:

    Easily Installed In A Cabinet By Drilling A Hole

    The Cool Components Cabinet Vent Unit is ideal for venting cabinets and enclosures and is self contained so no tubing or other contraptions. It features a top-quality brushless fan for low noise and long life. The fan unit can be configured to pull air out of a cabinet (default configuration) or push air into the cabinet (by reversing the fan). The unit is powered with DC voltage and when used with our Universal Power Supplies, can be run completely silent or more aggressively depending on the application.

    NOTE: This Item Does Not Include a Power Supply But Does Require a Power Source.

    IMPORTANT NOTE: Cool Components products are not available to ship outside the U.S.

    Cool Components Cooling Products

    • Quiet and Efficient Operation
    • Aggressively Circulates Air in a Cabinet or Enclosure
    • Quick and Easy Installation
    • Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application
    • Compatible with the Temperature Controllers for Advanced Control (TC-BSC and TC-ALT)

    General Specifications

    • Dimensions: W - 3 5/8" x L - 3 5/8" x D - 2 5/8"
    • Construction: PVC w/ Gloss Finish (Black, White and Tan)
    • Cooling System: 1 Brushless Levitation Fan w/Superior Bearing System (Est. 50,000hr)
    • Air Flow: 10.2 CFM (Max)
    • Noise: Silent to ~22 dba (Max)
    • Req'd Hole Size: 3 1/8" or 3 1/4" (Max)

    Power Specifications

    • Multiple Units Can Be Powered with a Single PS-300 Power Supply
    • Connection:
