    Home / Chief Manufacturing / Chief THINSTALL Dual Swing Arm Wall Display Mount, 37-58 In.

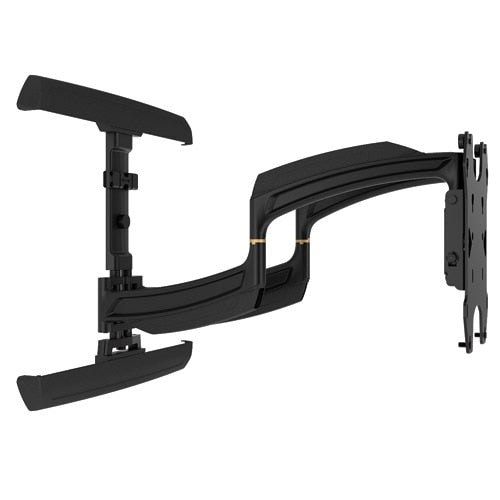

    Chief THINSTALL Dual Swing Arm Wall Display Mount, 37-58 In.

    Chief THINSTALL Dual Swing Arm Wall Display Mount, 37-58 In.

    CMTS525TU

    $620.80

    Notify me when this product is available:

    Extends Outward Up To 25 Inches

    The Chief Medium THINSTALL Dual Swing Arm Wall Mount, 37-58" features an ultra-low profile that collapses down to 1.5 inches (38 mm), creating an exceptionally flush installation for any type of TV, including LED, LCD and Plasma. The mount is easily installed by a single person. Simply mount the top rail and slide on the assembly to create the perfect TV mount solution.

    • Lightweight, low-profile wall mount for TVs 37-58 inches
    • Extends outward up to 25 inches with 15 degrees of tilt
    • Integrated cable management makes it easy to route power and signal cables
    • Post-installation height adjustment for perfect screen placement and alignment
    • Steel stud mounting possible with series PAC115, using two studs only

    The mount extends outward up to 25 inches to maximize the viewing area. Pull out your TV when everyone needs to see, then push it back against the wall. I

    • Certifications: UL Listed
    • Color: Black
    • Lateral Shift: 16 inches (406.4mm)
    • Manual Height Adjustment: 1 inch (25mm)
    • Max. Extension: 25 inches (635 mm)
    • Max. Screen Thickness: 5 inches (127mm)
    • Min. Depth: 1.5 inches (38.1 mm)
    • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 800 x 400mm
    • Orientation: Landscape
    • Dimensions: 20.7(H) x 29.5(W) x 1.5(D) inches (527 x 749 x 38 mm)
    • Pivot (numerical value): ±90° (depending on screen width)
    • Post-Installation Leveling (Roll): Yes
    • Solution Type: Universal
    • Tilt: + 0° , – 15°
    • Typical Screen Sizes: 37 – 58 inches
    • Wal

    »Chief TS525TU Thinstall Swing Arm Display Mount Spec Sheet (.pdf)»Chief TS525TU Thinstall Swing Arm Display Mount Technical Drawing (.pdf)»Chief TS525TU Thinstall Swing Arm Display Mount Installation Manual (.pdf)
