    Home / Chief Manufacturing / Chief Large Low-Profile In-Wall Swing Arm Mount, 22 in.

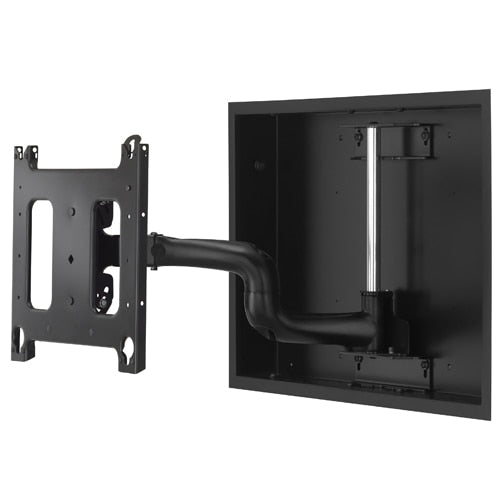

    Chief Large Low-Profile In-Wall Swing Arm Mount, 22 in.

    Chief Large Low-Profile In-Wall Swing Arm Mount, 22 in.

    CMPWRIWUB

    $556.66

    Notify me when this product is available:

    Ultra Low-Profile, 1/2-Inch Off Wall

    Make your large flat screen TV appear one with the wall by mounting it with the Chief Large Low-Profile In-Wall Swing Arm Mount (22 in.). This unique mount creates an ultra-low profile for the TV, collapsing down to just half an inch off the wall. You can also pull the TV out up to 22 inches and tilt to achieve the ideal viewing angle. Centris fingertip tilt technology holds your chosen angle until you readjust.

    • Mounts flat panel screens measuring 37 to 55 inches
    • Extends outward up to 22 inches with 15 degrees of tilt
    • Collapses down to just half an inch off the wall
    • Ships fully assembled to save on installation time
    • Installs into PAC501 to create an ultra low-profile installation
    • Provides integrated security, just add a padlock

    The mount is designed for easy, safe installation. ClickConnect technology provides an audible click when your flat sc

    • Manufacturer Part #: PWRIWUB
    • Certifications: UL
    • Color: Black
    • Lateral Shift: 11.5 inches (292mm)
    • Maximum Screen Thickness: 22 inches (558.8mm)
    • Minimum Depth: 0.5 inches (12.7mm)
    • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm – 800 x 517mm
    • Notes: Requires PAC501B. PACHFK1 available. Depth and Extension do not include interface bracket (adds 0.5 – 1.5")
    • Orientation: Landscape, Portrait
    • Overall Dimensions: 20.0(H) x 30.0(W) x 4.5(D) inches (508 x 762 x 114mm)
    • Post-Installation Leveling (Roll): Yes
    • Weight: 45.8 pounds
    • Solution Type: Universal
    • Tilt: +2 degrees, -15 degrees
    • Typical Screen Sizes:

    »Chief PWRIWUB Large Low-Profile In-Wall Swing Arm Mount Spec Sheet (.pdf)»Chief PWRIWUB Large Low-Profile In-Wall Swing Arm Mount Installation Manual (.pdf)»Chief PWRIWUB Large Low-Profile In-Wall Swing Arm Mount Technical Drawing (.pdf)
