    Home / Chief Manufacturing / Chief FUSION Fixed Wall Display Mount, 37-63 In.

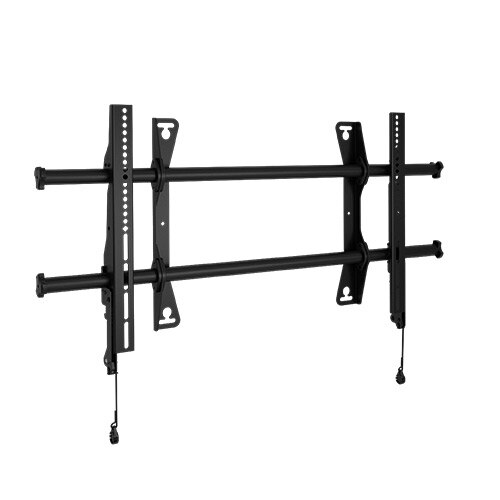

    Chief FUSION Fixed Wall Display Mount, 37-63 In.

    Chief FUSION Fixed Wall Display Mount, 37-63 In.

    CMLSA1U

    $167.47

    Notify me when this product is available:

    Mount a Large Flat Screen Display Without Tilt

    The Chief FUSION Fixed Wall Display Mount (37-63 In) is used to mount a 37-63" flat screen TV in a fixed landscape position. As a fixed mount, this model does not allow manual tilting of the display by the user. However, because the mount doesn't need room to tilt, the display can be mounted as close to the wall as possible.

    • Mounts a 37-63" flat screen TV up to 200 pounds in a fixed position
    • Allows post-installation "centerless" lateral shift up to 17.4 inches
    • Lock-down screws on the sliding bar keep the mount stable
    • Built-in cable stand for easy access under the display
    • Quick-Store cords use magnets for easy strap storage and access
    • Required installation hardware included

    Upgraded from the original FUSION series, the new and improved FUSION line of display mounts offer faster installation, improved stability

    • Manufacturer Part #: LSA1U
    • Color: Black
    • Lateral Shift: 17.4 inches (441 mm)
    • Minimum Depth: 2 inches (51 mm)
    • Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 870 x 400mm
    • Orientation: Landscape
    • Overall Dimensions: 17.93(H) x 34.75(W) x 2.0(D) inches (455 x 883 x 51 mm)
    • Shipping Weight: 16.31 pounds
    • Solution Type: Universal
    • Typical Screen Sizes: 37 to 63 inches
    • Wall Stud Compatibility: 16-32 inches
    • Weight Capacity: 200 pounds (90.9kg)
    • Certifications: UL Listed
    • Warranty: 10 Years

    »Chief LSA1U Fusion Fixed Wall Display Mount Installation Manual (.pdf)»Chief LSA1U Fusion Fixed Wall Display Mount Technical Drawing (.pdf)
