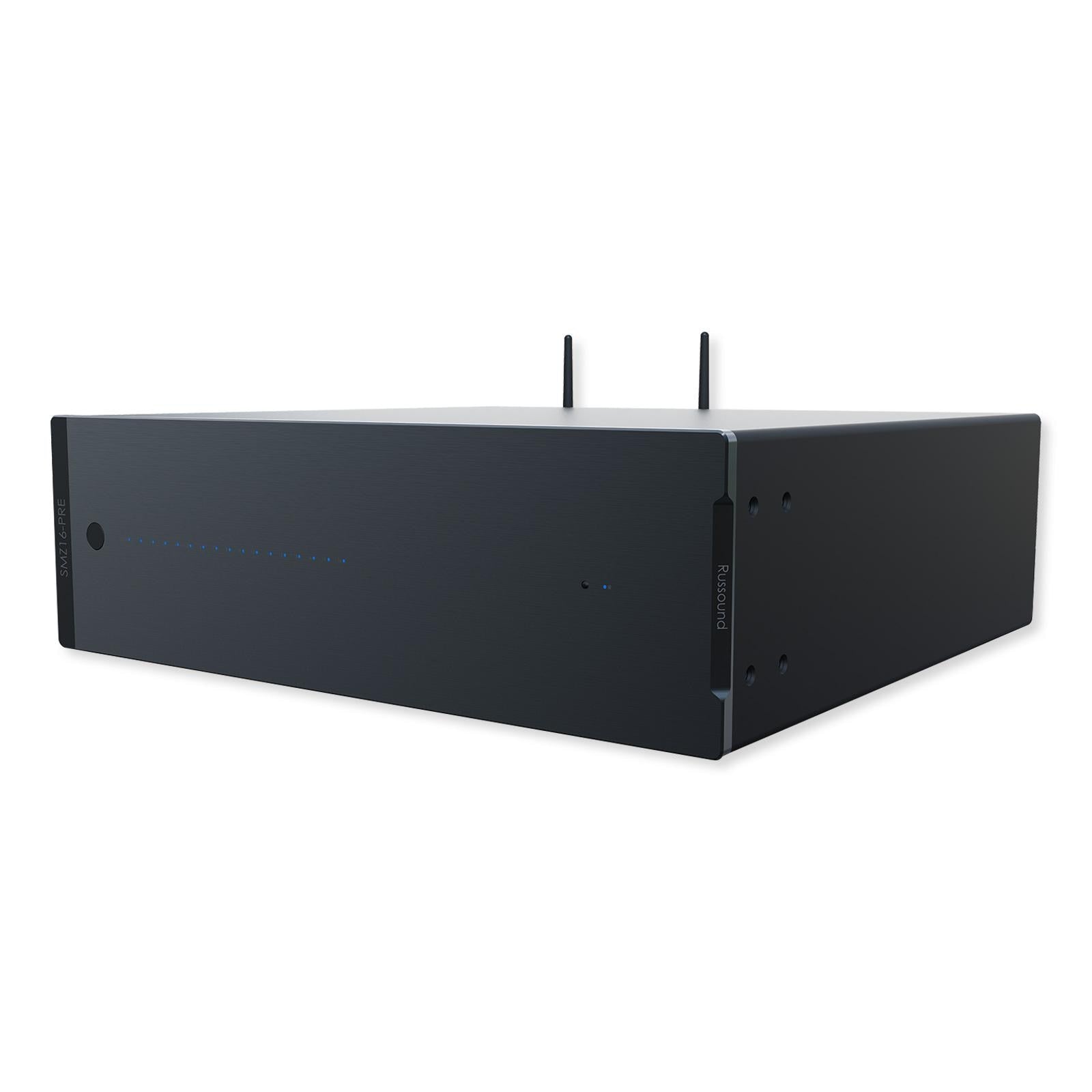

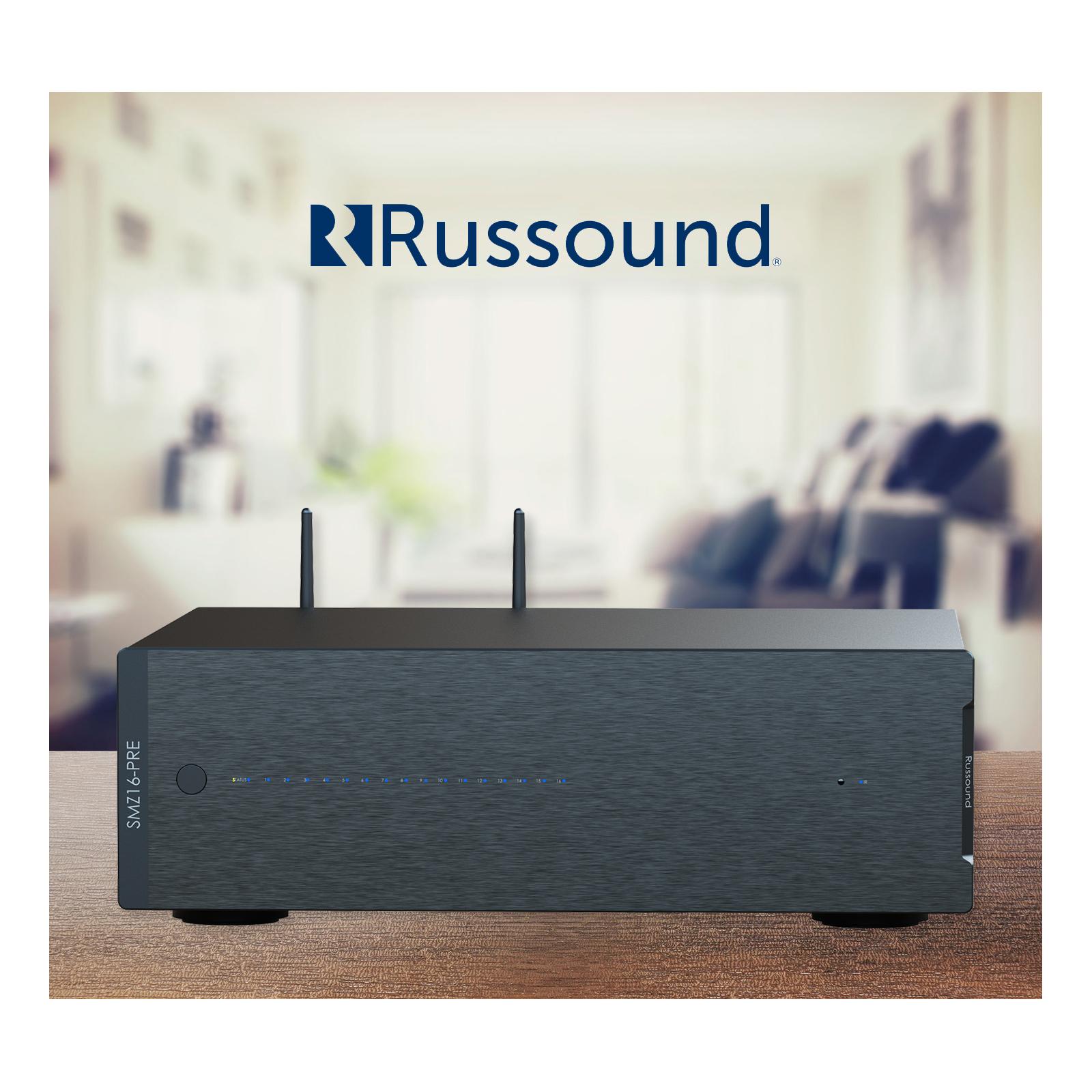

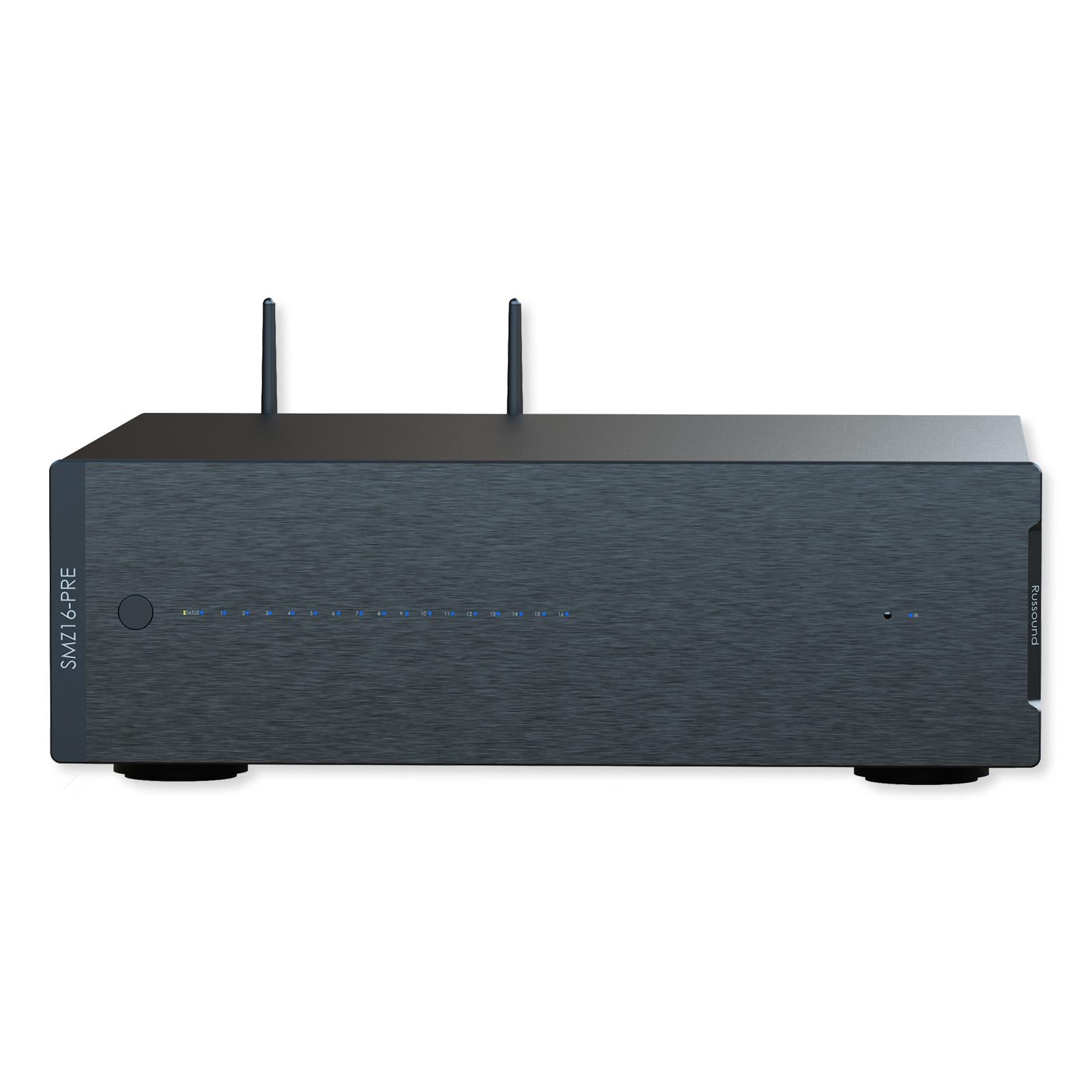

Russound 16x16 Matrix Pre-Amplifier with Built-in Streamer

Play Audio From Wired or Wireless Sources Across 8 Zones

Create a multi-room audio system capable of utilizing wired and wireless audio sources for your home or business with the Russound 16-Channel Matrix Pre-Amplifier with Built-In Streamer! This distributed audio controller amplifier utilizes premium audio amplification and wireless streaming technologies from 16 connected sources to 16 audio zones to offer superior sound quality to a home theater or commercial audio installation. The Amplifier contains Russound's latest audio streaming technology which supports Apple AirPlay, Google Cast, Spotify Connect, and Bluetooth to allow virtually any smart device to wirelessly connect to the Amplifier to play their favorite audio through one or more zones. Control the Controller Amplifier from a XTS7 Wall-Mounted Color Touchscreen, IPK-1 Single-Gang IP Keypad, or the Russound app.

• Pre-Amplifier with Built-in Hi-Res Audio Streamer distributes audio from 16 wired and wireless sources across 16 zones
• Supports Ethernet, stereo analog, digital optical, digital coax, HDMI ARC, and USB audio sources
• Wirelessly stream audio via Wi-Fi or Bluetooth using Apple AirPlay, Google Cast, or Spotify Connect and easily connects with popular audio streaming services
• HDMI ARC Input connects to a TV or video source with low latency synchronization to avoid lip synch issues
• Included IR emitters allows you to control various audio sources and zones with existing remote controllers and transmitters
• Premium industrial design provides a clean look on a shelf or in a 19" rack
• Integrated DSP – 7 Band Parametric Graphical EQ with built-in presets for Russound Speakers
• Controllable from the XTS7 Wall-Mounted Color Touchscreen, IPK-1 Single-Gang IP Keypad, and the Russound app
• Expandable up to 48 zones with 5 additional SMZ8's and up to a 16x48 matrix with 5 additional SMZ16-PRE

Each Russound Amplifier and Preamplifier offers the following standard features: party modes, alarm and sleep timers, do not disturb zone designation, source and zone linking, all-on/all-off participation, and other customization settings.

The SMZ16 offers unpowered source loop outputs and line level outputs for all 16 zones and can be configured for fixed or variable output. This makes the pre-amplifier perfect for outdoor areas or larger indoor rooms where more audio power is required from a dedicated amplifier.

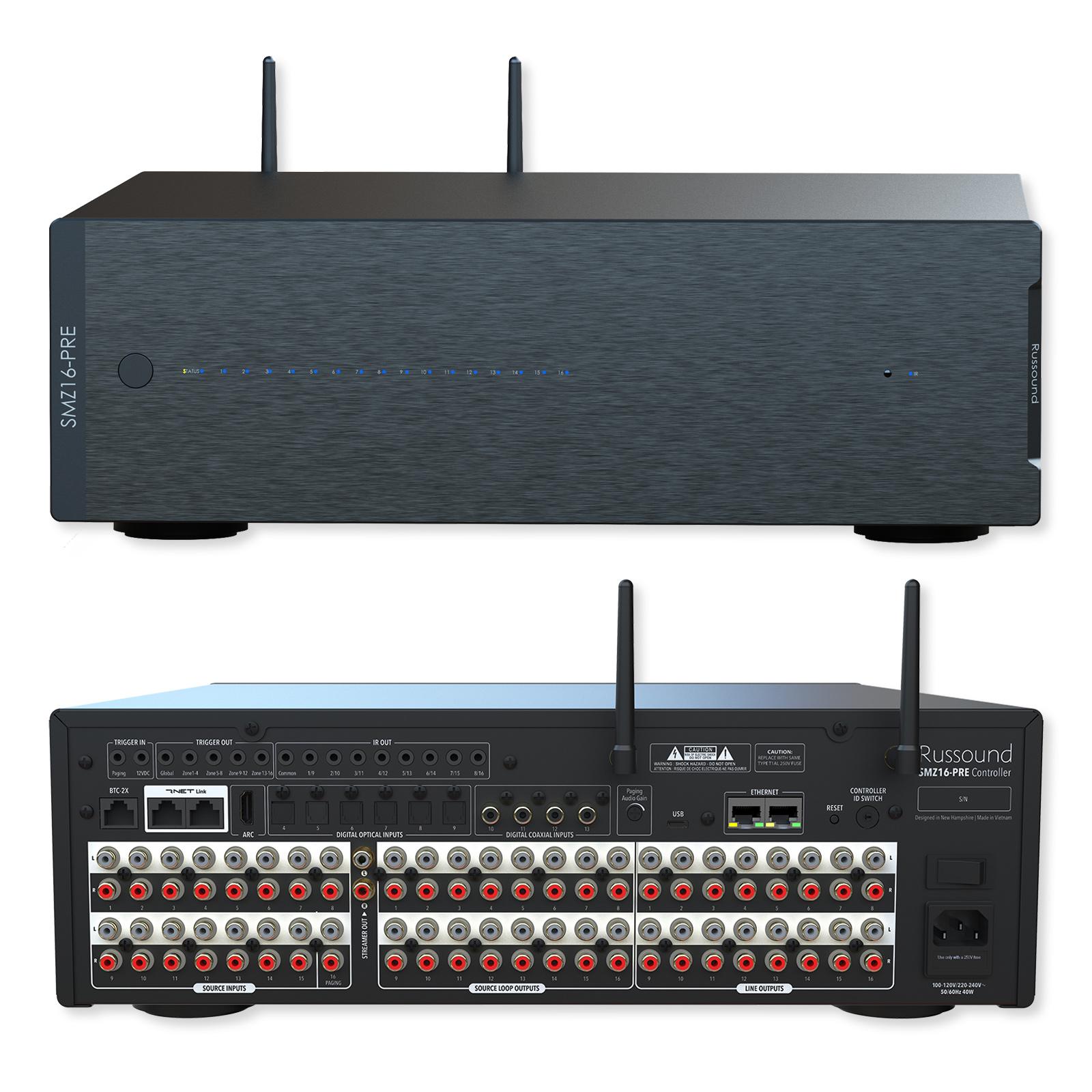

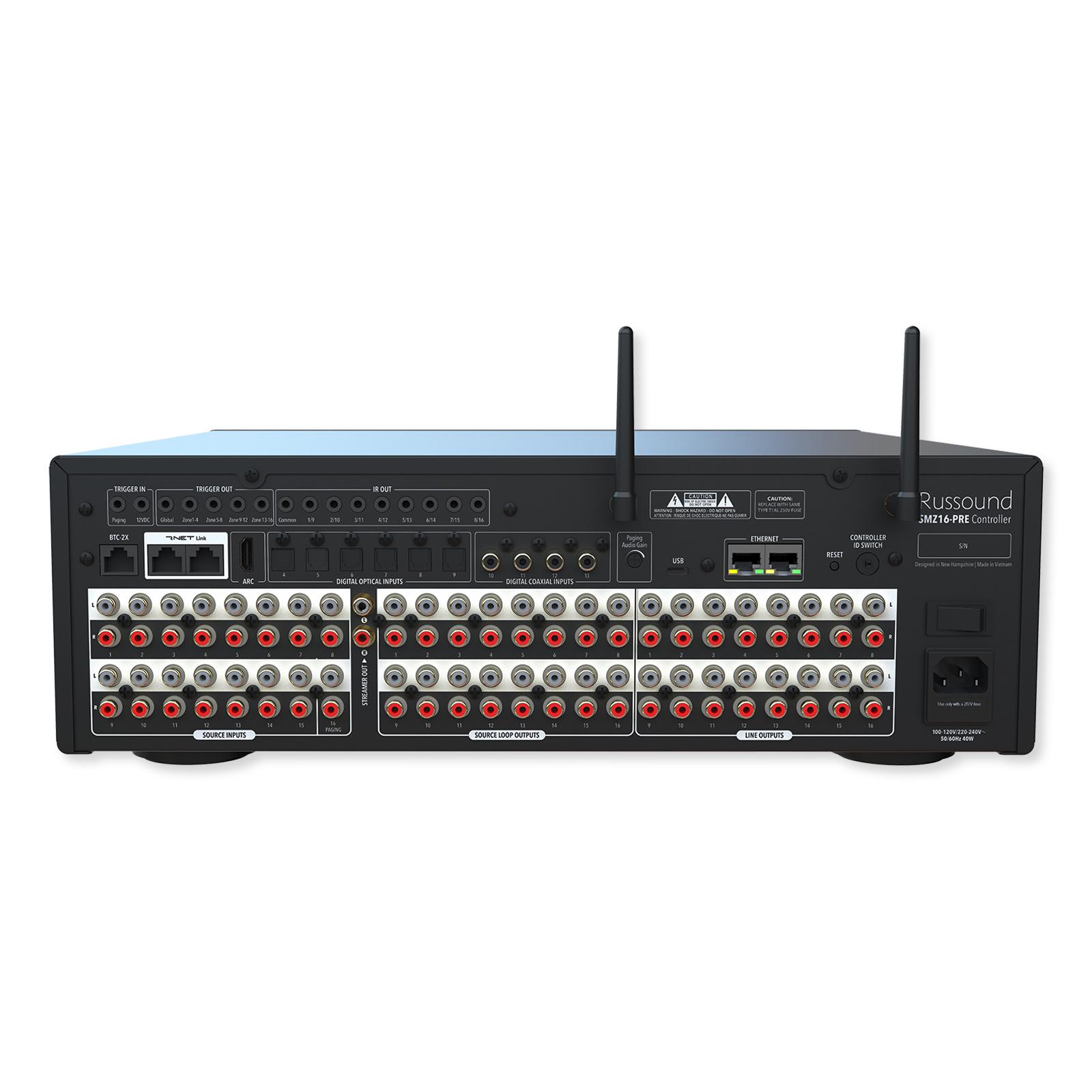

The SMZ16 amplifier supports up to 16 audio sources in any combination of its available analog, digital, or wireless streaming connections to deliver high quality audio to up to 16 zones in a home or commercial building, or up to 48 zones when networked with 5 additional Russound SMZ amplifiers. Supported physical input connections include Ethernet, stereo analog, digital optical, digital coax, HDMI ARC, or USB. The Amplifier also supports wireless audio streaming through its built-in audio streamer and pair of Wi-Fi/Bluetooth antenna. The built-in audio streamer is defaulted to be Source 1, leaving the other sources available. If desired, the built-in streamer can be bypassed, and a different audio source used instead of it.

The SMZ16's Bluetooth range can be increased by 500 ft with the Russound BTC-2X Bluetooth Remote Transceiver or the Russound BSK-2 Bluetooth Source Kit through dedicated ethernet and R-NET Ports. Two other ethernet ports with a built-in switch can be used for a wired ethernet connection or to network with an additional Russound amplifier.

MyRussound™ App

The intuitive MyRussound™ App controls the entire Russound system from smart tablets and smartphones. The MyRussound app takes advantage of all of the features available to your Russound devices to simplify control of your Russound audio system no matter the scale or configuration. Control everything from small audio systems of only a few rooms in the home to the most complex audio installations.

Easy, Intuitive Room Grouping

Add, remove, or group any number of rooms for seamless synchronized audio throughout your home. Simply go to the room list and tap the speaker icon of the room that you'd like to share or withhold audio with other rooms in your home.

Faster and More Responsive Browsing

Quickly and easily find and select the song, artist, album that you're looking for within the always available navigation bar.

Improved Favorites Access

Easily access support for customizable room-based and app-based favorites. Create favorites and shortcuts for individual zones or the whole system.

Quick access to Schedules, Alarms and Sleep Timers

Set up innovative scheduling features, alarms and sleep timers that give you the ability to add advanced automation to your listening routines. Scheduling is available quickly from anywhere in the app via the always available navigation bar.

Installation Details

The SMZ16 can be rack mounted into a standard media cabinet with included hardware or placed onto a desktop surface. Speakers are connected to the SMZ8 using the supplied removable, screw-down speaker connectors. Each of these connectors is designated for the speaker set of a particular amplified zone.

Contents

• SMZ16-PRE Controller Amplifier
• (2) removable Wi-Fi/Bluetooth Antennas
• (3) IR Emitters with 6ft cables
• 6 ft (1.82 m) power cord
• Set of rack mount ears with mounting screws
• Owner's Manual

NOTE: This product is part of the Russound Certified Installer Required Program and can only be installed and configured by a Russound Certified Installer. Become an RCI Dealer today!
