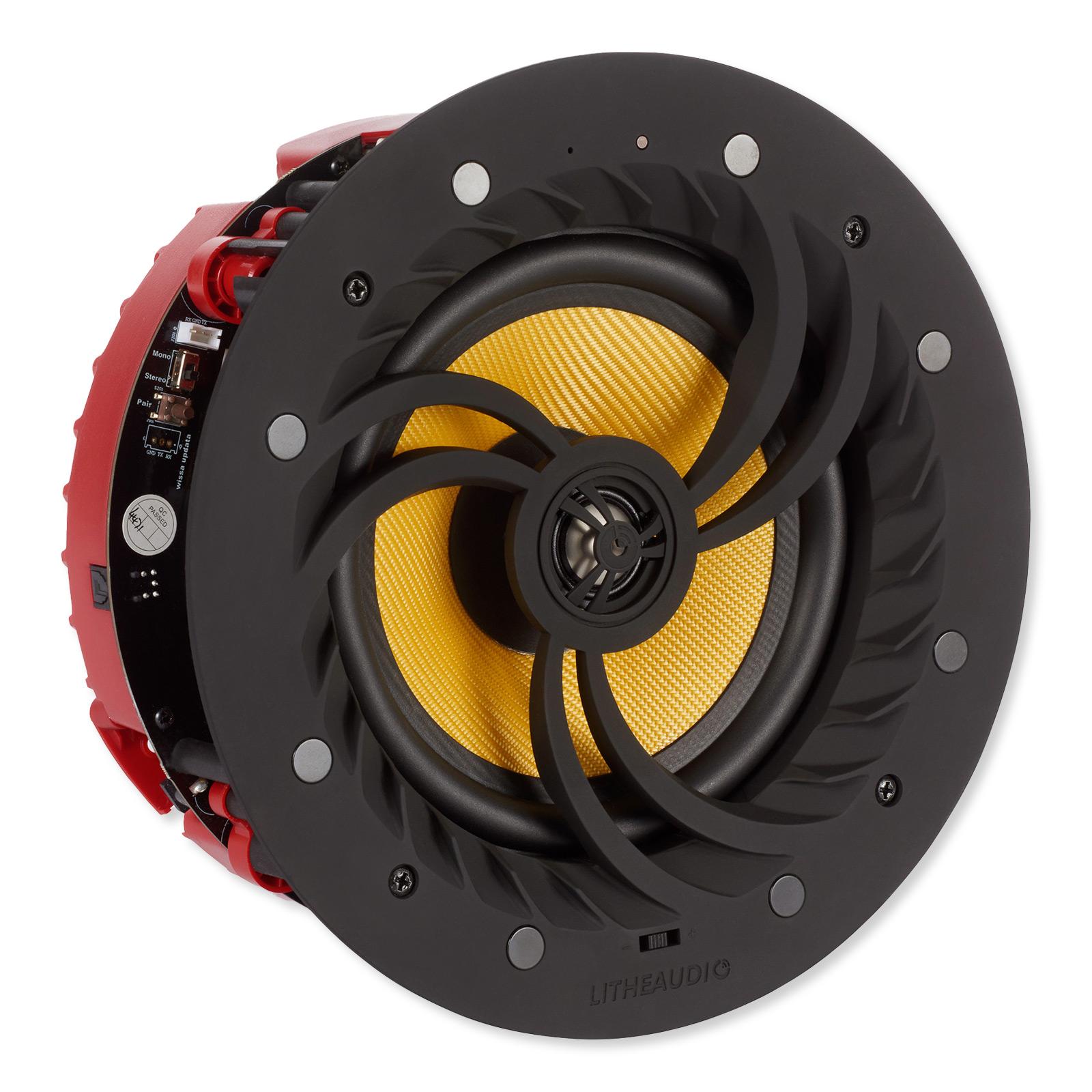

Lithe Audio Pro Series Wi-Fi Ceiling Speaker, Single Master

Install A Speaker, Amplifier, and Receiver Into One Location

Add an all-in-one wireless ceiling speaker anywhere within your home audio entertainment system with the Lithe Audio Pro Series Wi-Fi Ceiling Speaker (Single). As a member of Lithe Audio's PRO Series product line, this Wi-Fi and Bluetooth connected speaker is designed with a built-in amplifier and Wi-Fi receiver to provide everything needed to enjoy high resolution audio from a single location in your home with up to 30 audio zones or speakers for multi-channel or whole home audio setups. Its built-in 60W RMS Class D amplifier, woven glass fiber cone, and titanium tweeter can deliver audio at 192 KHz at 24 bits, allowing the speaker to emit the highest possible quality from any connected source. The Pro Series Wi-Fi Ceiling Speaker supports wireless input via Wi-Fi and Bluetooth, as well as wired connections via Ethernet, optical, or passive speaker gauge wire. The speaker is fully certified with Apple AirPlay 2, Google Chromecast, and Spotify Connect for wireless audio streaming of popular sources such as Spotify, Pandora, Napster, Deezer, Tidal, Amazon Music, and more!

• Master single speaker with built-in 60W RMS Class D amplifier and Wi-Fi receiver for all-in-one premium audio solution
• 2.4GHz and 5GHz Wi-Fi and Bluetooth connectivity enables wireless streaming from paired devices, plus wired Ethernet and optical connections
• Apple AirPlay 2, Google Chromecast, and Spotify Connect certified
• Scalable with audio configurations between 2.0 to 7.1 Channels with Lithe Audio and third-party speakers

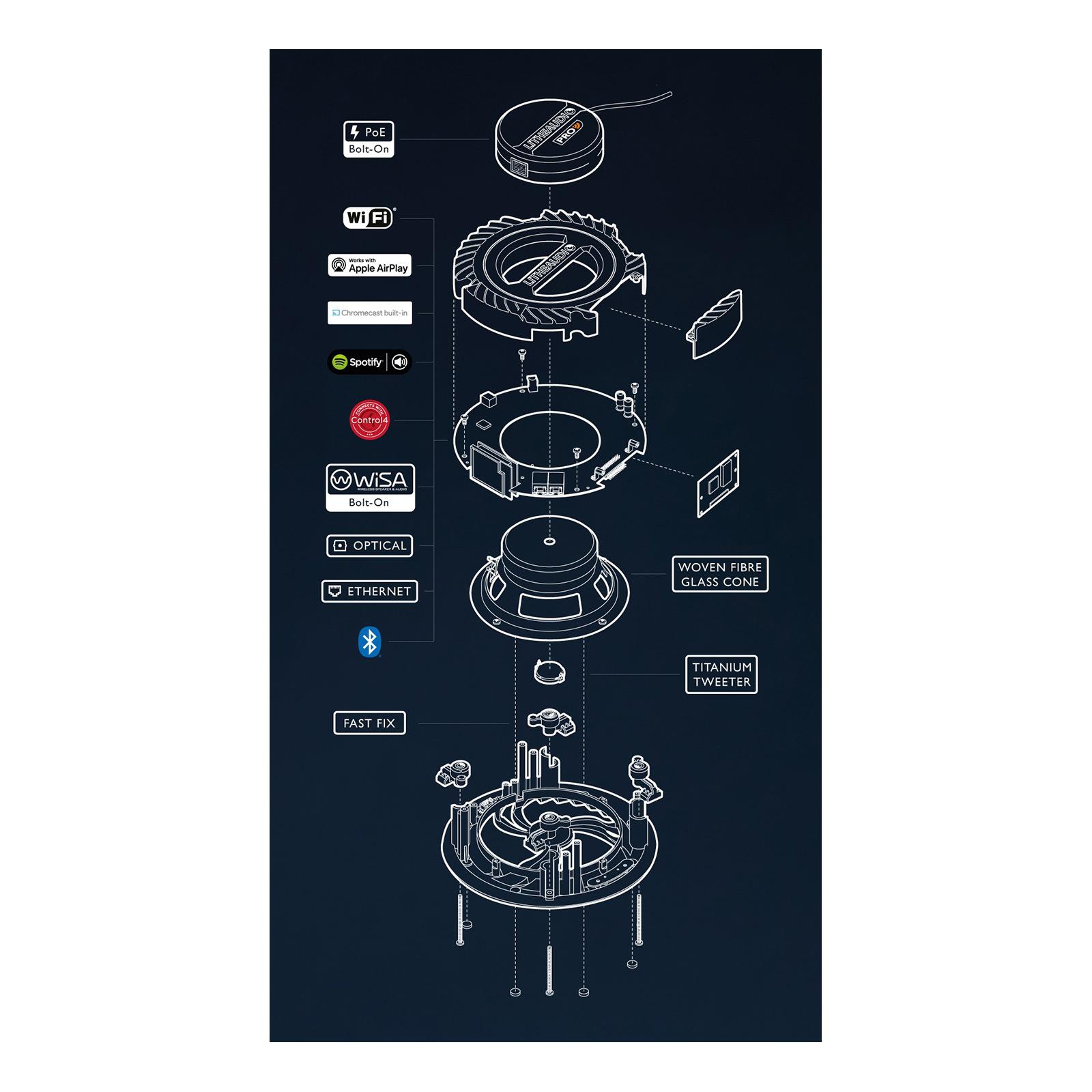

• Woven glass fiber cone and titanium cone produce high quality audio and pin sharp clarity
• Setup, pair devices and audio zones and adjust settings via the Lithe Audio mobile app for Android or iOS devices
• Optional WiSA compatibility for Dolby Atmos support, WiSA module (06521) sold separately
• Supports Control4, ELAN, KNX, FIBARO & Loxone Drivers
• Integrates into smart home systems and is controllable with 3rd party remotes including AVA, ELAN, and more!
• Voice control compatibility with Amazon Alexa and Google Assistant

Lithe Audio and ELAN Smart Home Integration

Lithe Audio Pro Series and Wi-Fi Active ceiling speakers are compatible with the Nice/ELAN smart home platform. This FREE driver software enables Lithe Audio Pro Series Speakers and Indoor Wi-Fi Ceiling Speakers (iO1 series not supported) to be controlled by an ELAN smart home system. This breakthrough integration brings every feature of Lithe Audio Wi-Fi speakers into ELAN smart home systems, enhancing the already premium smart home platform with superior audio quality and performance. Up to 5 pairs of Lithe Audio Wi-Fi speakers can be integrated into an ELAN system.

The driver supports the ability to browse between connected streaming sources from your ELAN controllers or mobile app. This driver also embeds chimes, tones and emergency alert sounds directly within the internal memory of the Pro Series speakers to deliver audio alerts across the ELAN system, even without any internet connection. By embedding chimes and sounds in the internal memory of the speakers, latency and timeouts are virtually eliminated within local networks that incorporate multimedia audio setups and home security or automated alerts into one system. For example, a pair of speakers in the kitchen or in multiple rooms can emit a doorbell announcement, or be used to signal a triggered automation or security function. Click here to download the driver from Lithe Audio.

Installation Details

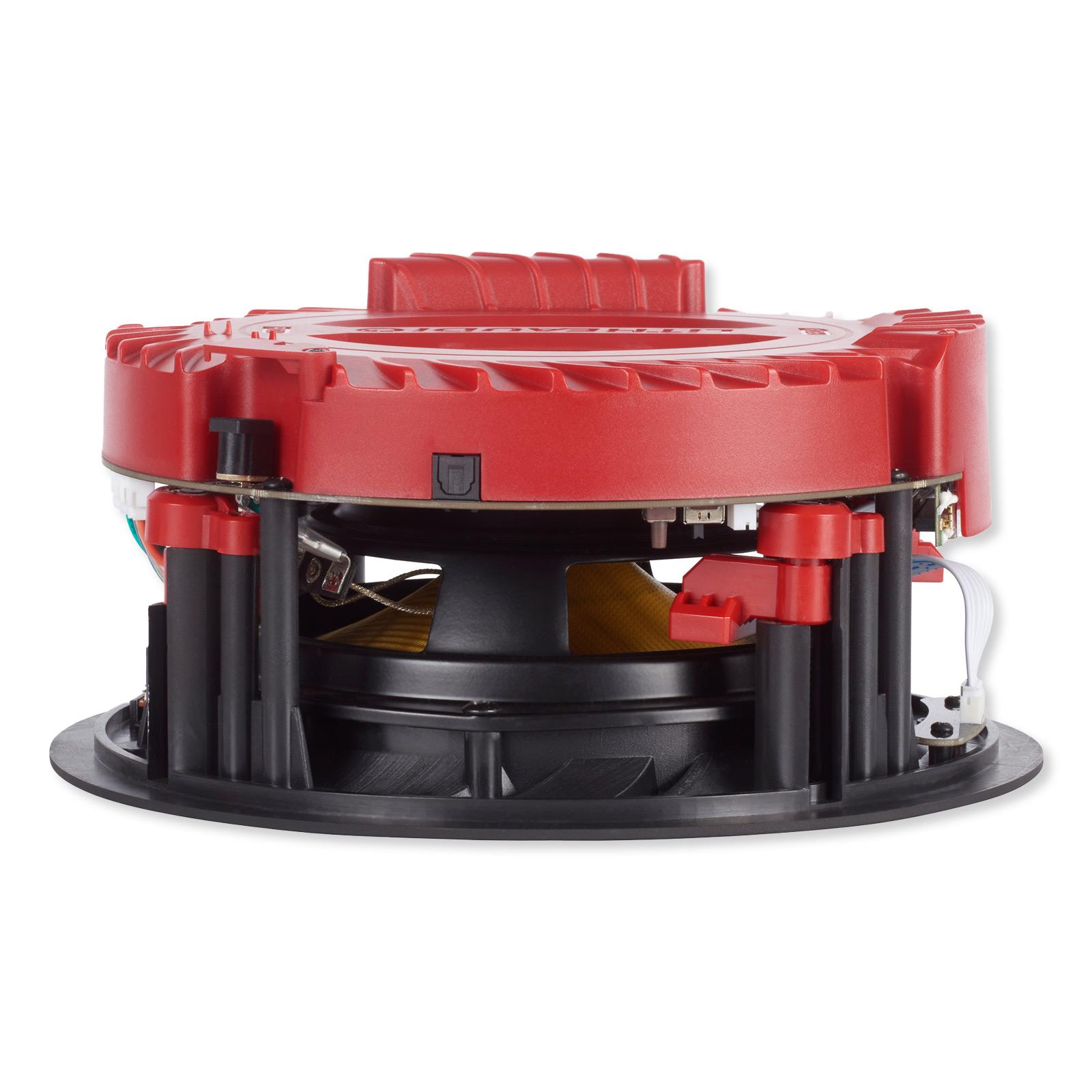

The Pro Series Bluetooth & Wi-Fi Ceiling Speaker fits into ceilings with included mounting hardware and uses lighting circuits as its primary power supply out of the box. Simply cut holes in the desired locations in your ceiling, connect the speaker to the included Power Driver and your existing lighting circuit, and secure the speaker. The Pro Series Ceiling Speaker also supports Power over Ethernet (PoE) connection through the Lithe Audio PoE Adaptor Module (sold separately). The speaker is configured from the Lithe Audio app, from where you connect the speaker to your Wi-Fi network, adjust settings, and connect other Lithe Audio speakers into audio zones. Once initial setup is complete, the speakers can also be selected via Google Home, or Apple Airplay, or Chromecast compatible sources.

Lithe Audio App

The Lithe Audio app, for iOS and Android devices, lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up because it will automatically detect all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled. Lithe Audio Speakers are ideal for the entire family. With support for multiple users, everyone can be their own DJ using their Apple or Android smartphone.

Contents

• Pro Series Bluetooth & Wi-Fi Ceiling Speaker
• Power Driver
• Cutting Template
• Instruction Manual

Notes:

• (KNX compatibility requires the APPMODULE KNX module supplied by BAB Technology, not available at HCI)
• No additional amplifiers, audio switches or matrices, controllers, or routers necessary.
• For larger homes where Wi-Fi signals from a single router are not stable, using wireless access points or mesh routers to strengthen the network is recommended.
• Hard wired ethernet connection can also minimize signal loss.

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.
