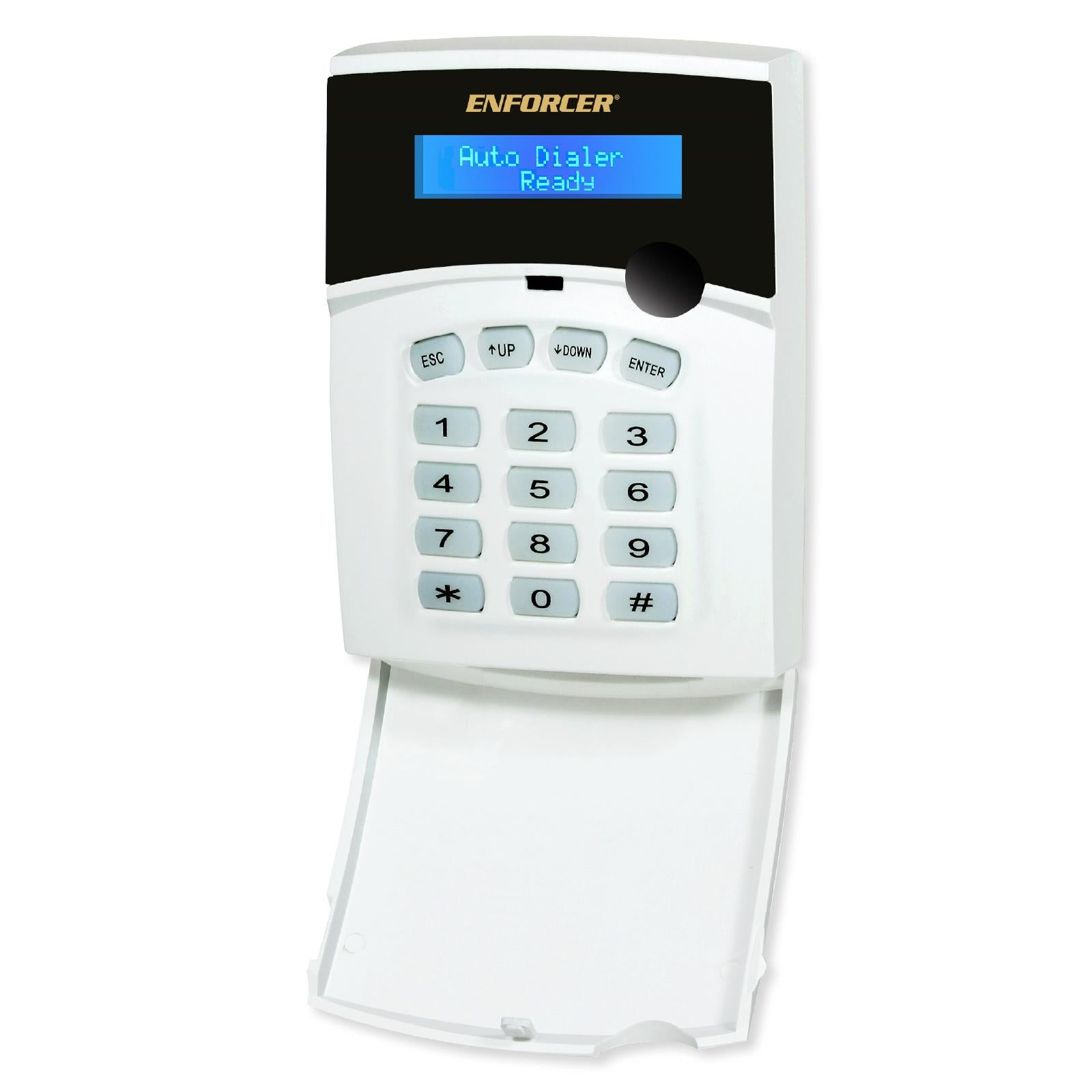

Seco-Lam Enforcer Automatic Voice Dialer, 6 Phone Numbers & 3 Trigger Inputs

Up To 6 Emergency Numbers Can Be Dialed

Know immediately when your security system is triggered by an alarm with the Seco-Larm Enforcer Automatic Voice Dialer. This voice dialer can call up to 6 emergency numbers and deliver a recorded message (up to 18 seconds long) and repeat the message twice. Each number can be called 3 times and the receiver is allowed to stop the dialing process or trigger an auxiliary relay output that's connected to an external device (door lock, siren, strobe light, etc.) It even features an LCD display that indicates the status (ready or alarm), showing which input and number were dialed.

• Automatically dials up to 6 phone numbers when triggered
• Remotely listen in and trigger or turn off the auxiliary relay
• The last 6 seconds of the alarm message can be customizable for each input
• Flash memory is built-in and helps protect against data loss due to power failure
• Wires into any standard alarm/security system

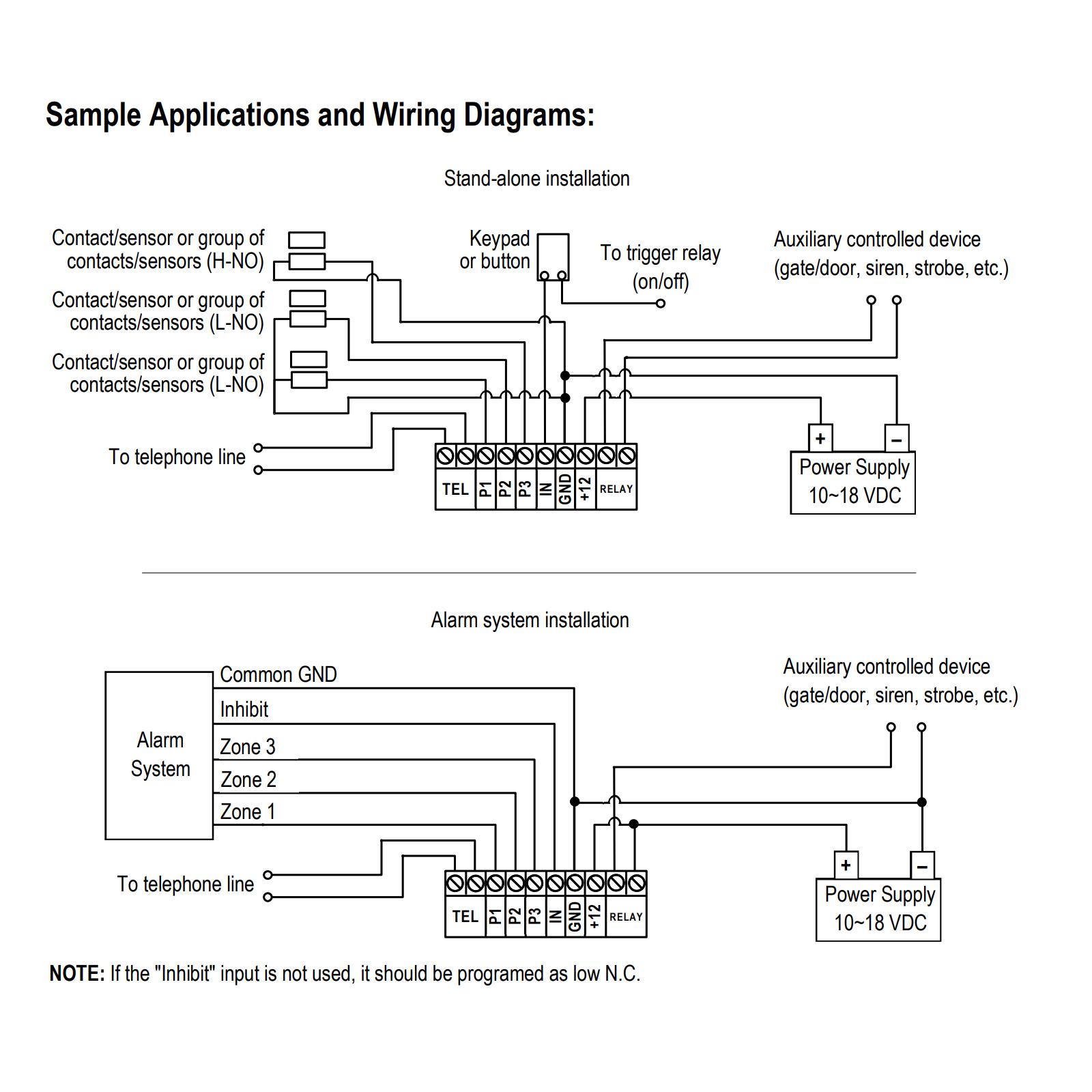

Wiring Diagram

Contents

• Voice Dialer Unit
• (2) Wall Mount Screws
• (2) Plastic Wall Anchors
• Manual

Notes

• For single-line analog or VOIP telephone systems. The E-922CPQ may work with some digital phone systems (single-line or PBX), depending on the system.
• If the "Inhibit" input is not used, it should be programmed as low N.C.
