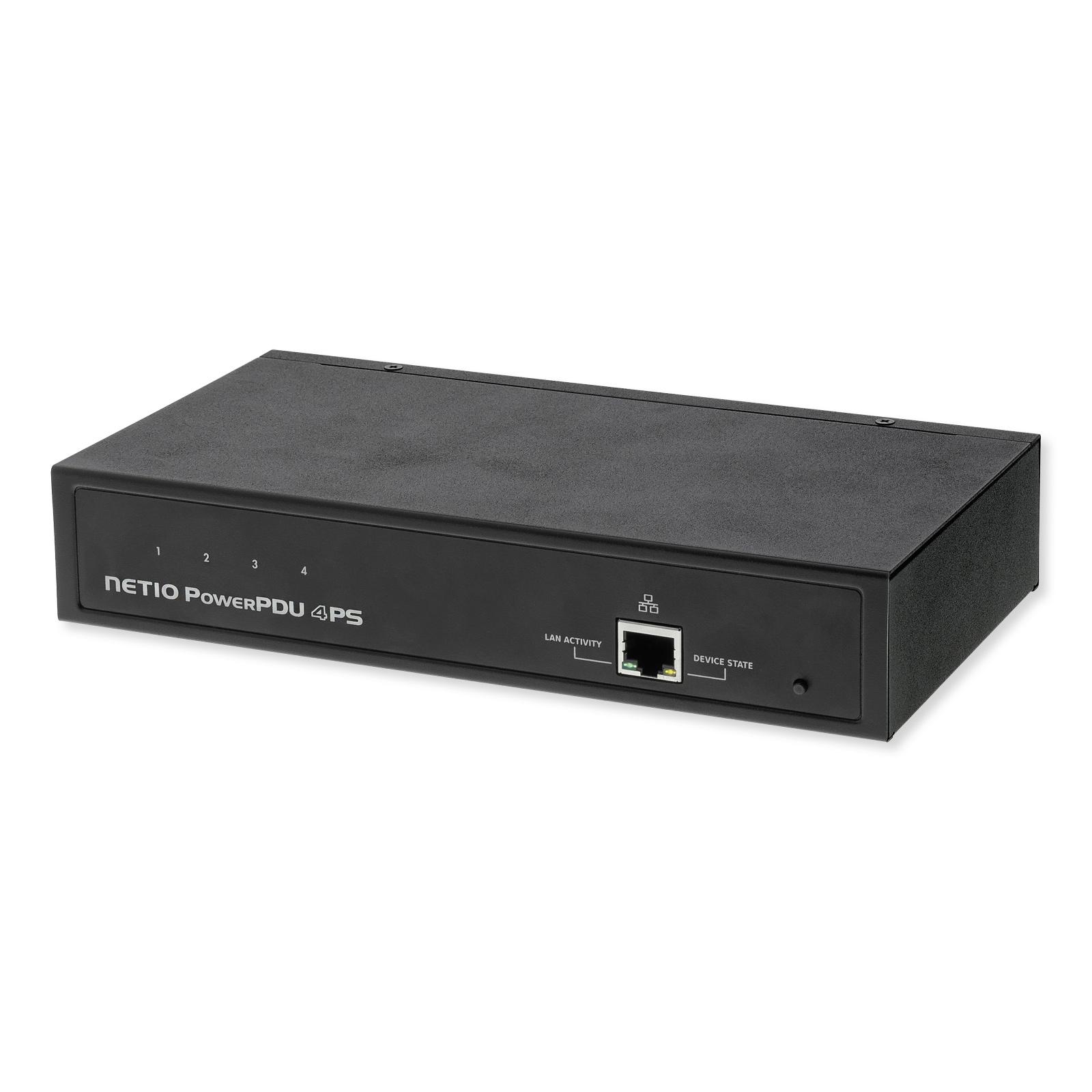

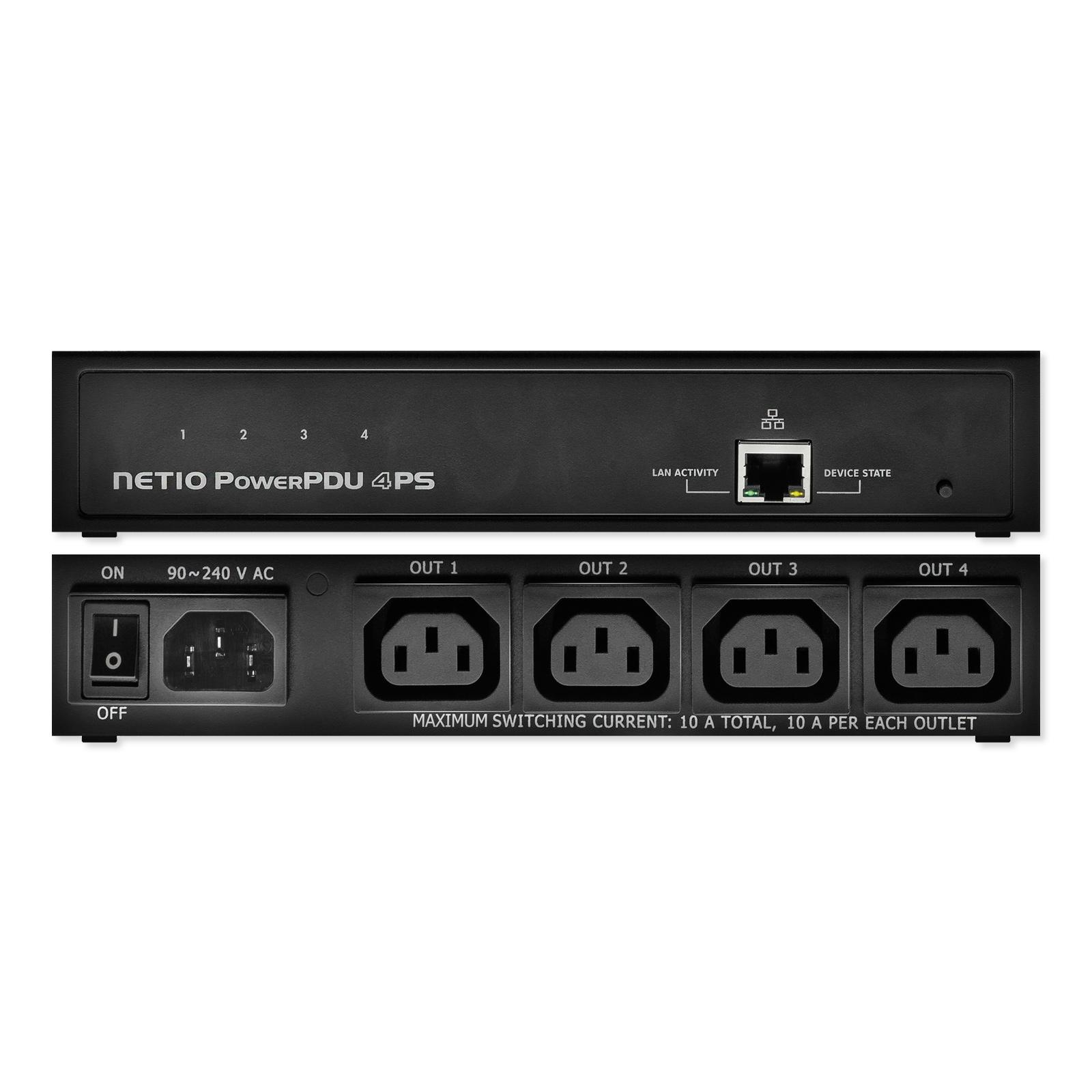

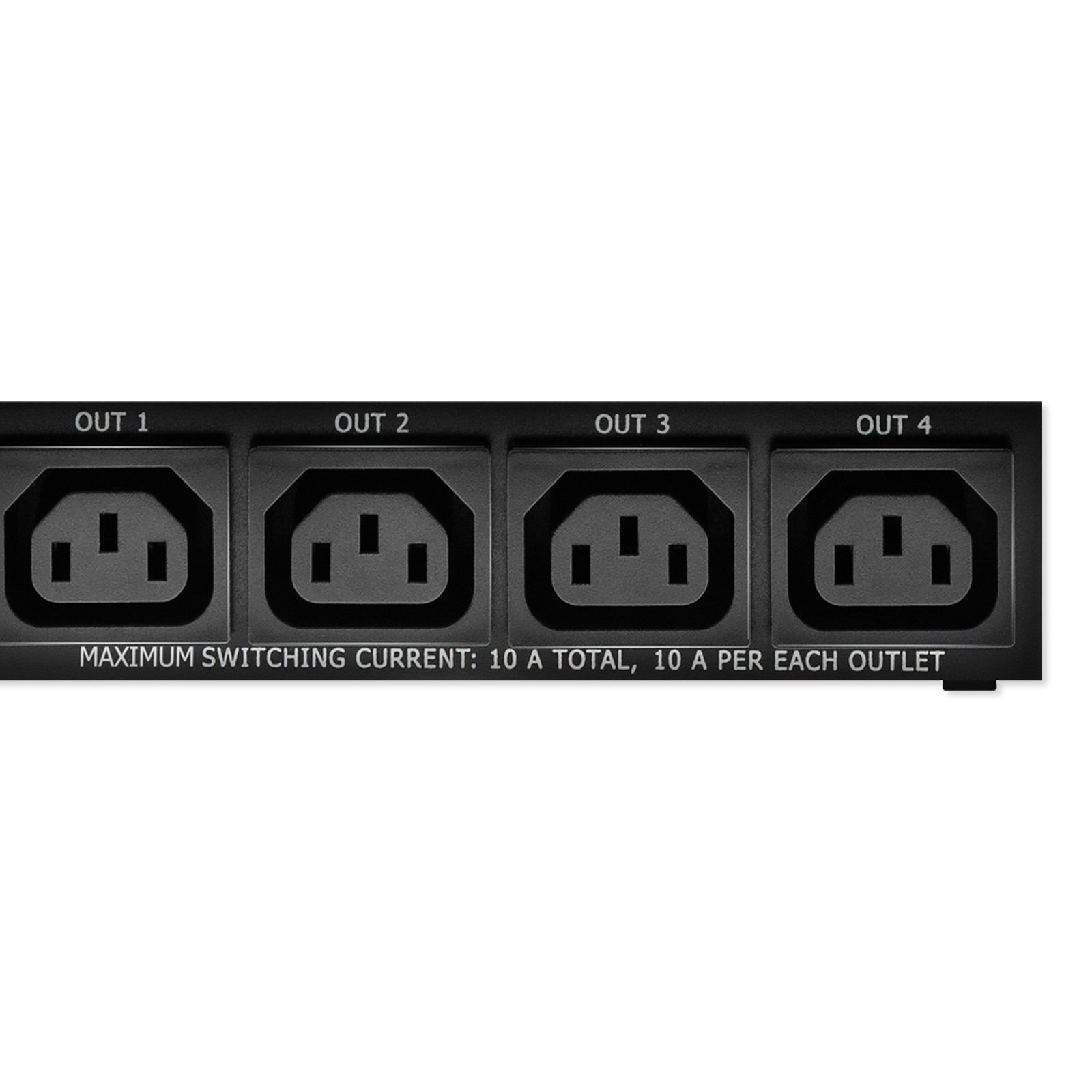

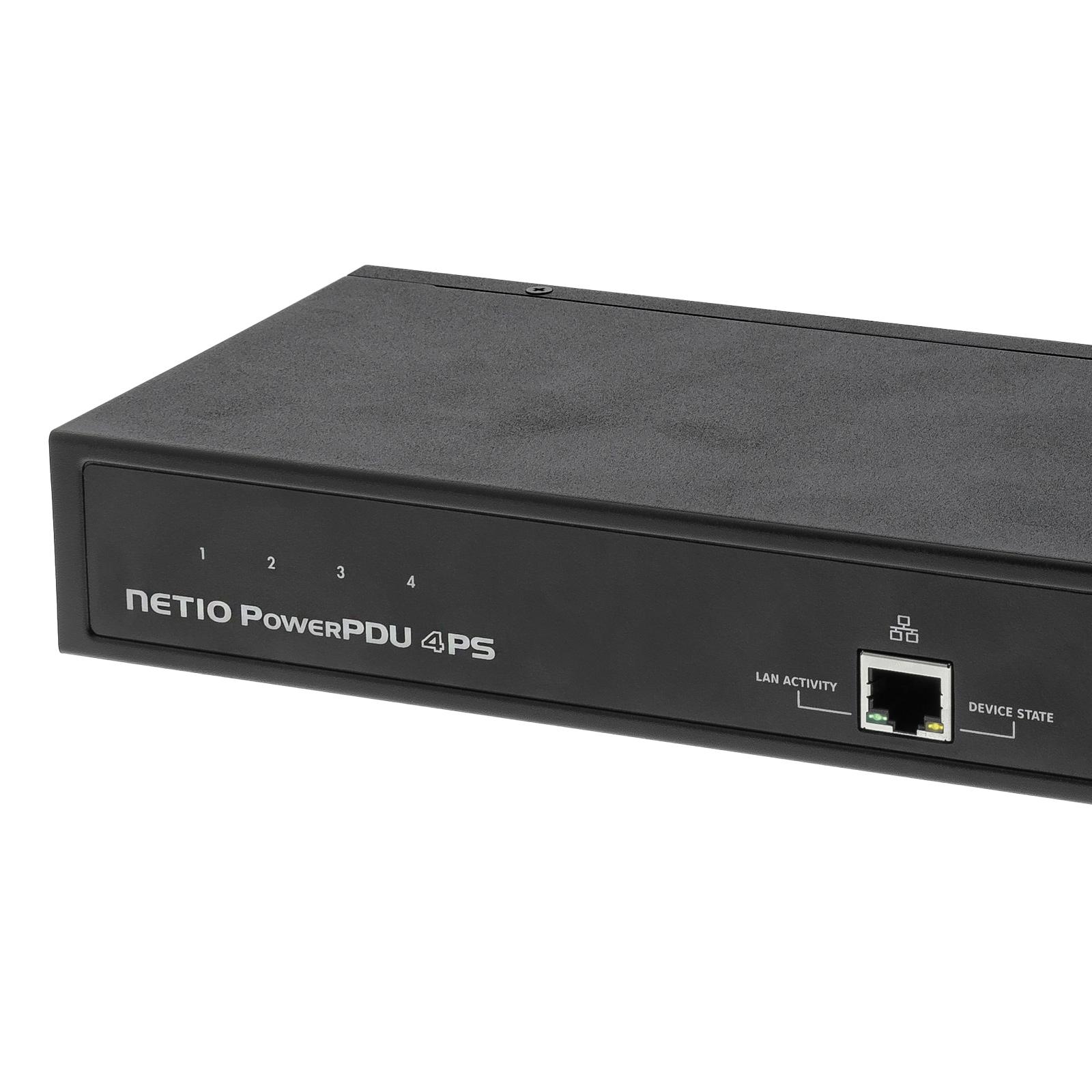

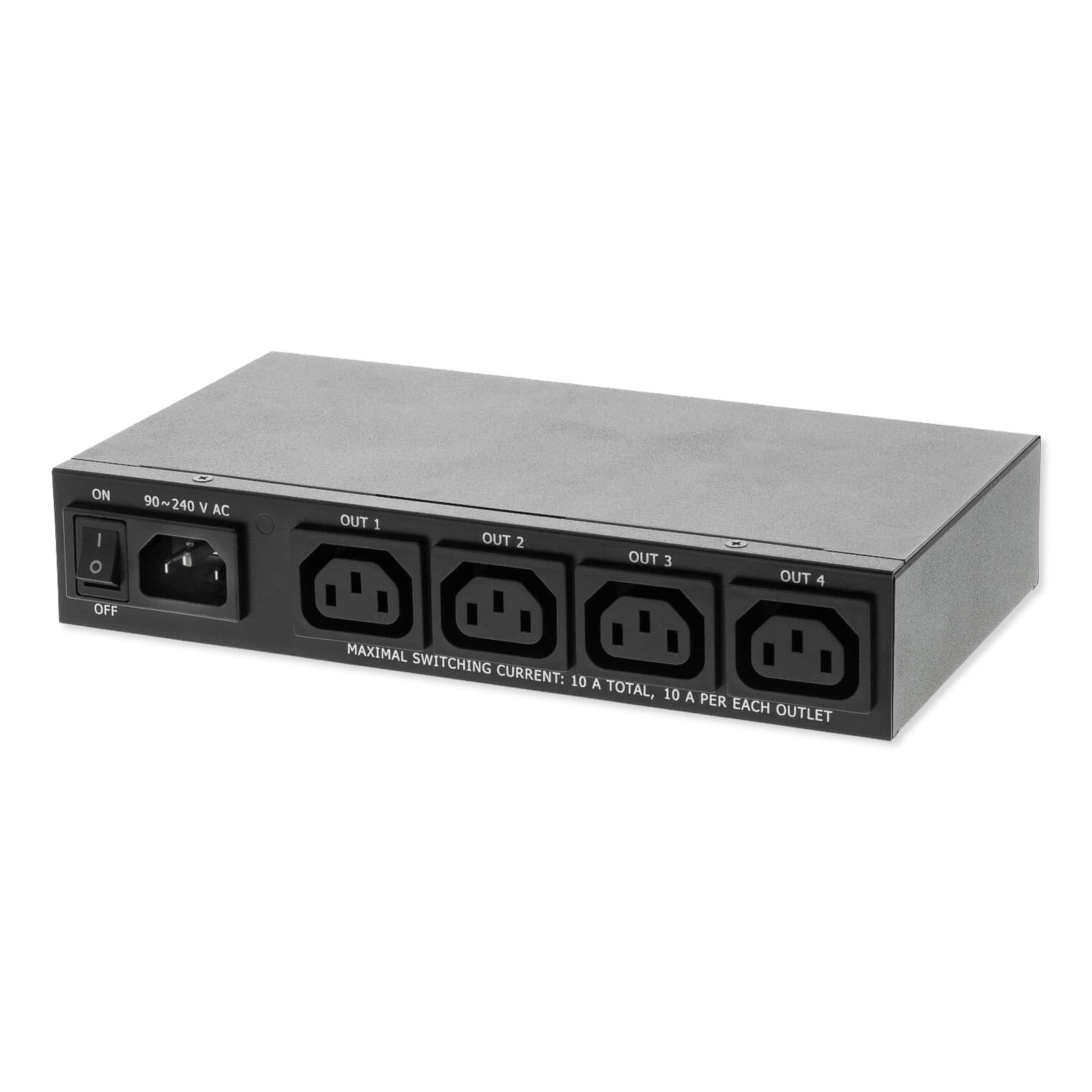

NETIO PowerPDU 4PS Smart Power Distribution Unit, 4 IEC-320 C13 Outputs

Control And Monitor Each Outlet Separately Over A Network

Keep your equipment powered, protected, and controlled with the NETIO PowerPDU 4PS Smart PDU Power Distribution Unit, 4 Outputs. This network-controlled PDU gives you the ability to control four outlets individually, letting you switch each device On or Off from a remote location. It offers power consumption monitoring, a weekday-based scheduling system, independent On/Off control for each output, seamless integration with third-party systems, and secure access via a web interface, mobile app, or the NETIO Cloud platform. Specifically built for industrial applications, it operates from –20 °C to +65 °C, supports web-based firmware updates, and keeps each socket's state even after a power loss. It also allows you to configure a power-on delay for each output so that the outputs switch to On in a sequence after a power outage to reduce the chance of circuit breakers tripping or overloading when power is restored.

• Each outlet can be controlled and monitored separately over a network
• Scheduler allows for switching individual sockets On/Off at a specific time and day in the week
• Connected devices can be restarted remotely via a web interface, cloud service, mobile app, or open APIs
• Supports Open API M2M Protocols such as JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, and more
• Control any of the outputs or count S0 pulses (from external electricity meter) using a digital input (DI)
• Other features include WatchDog Ping, WatchDog Power, ZCS (Zero Current Switching), Power-Up State, and HTTPS support

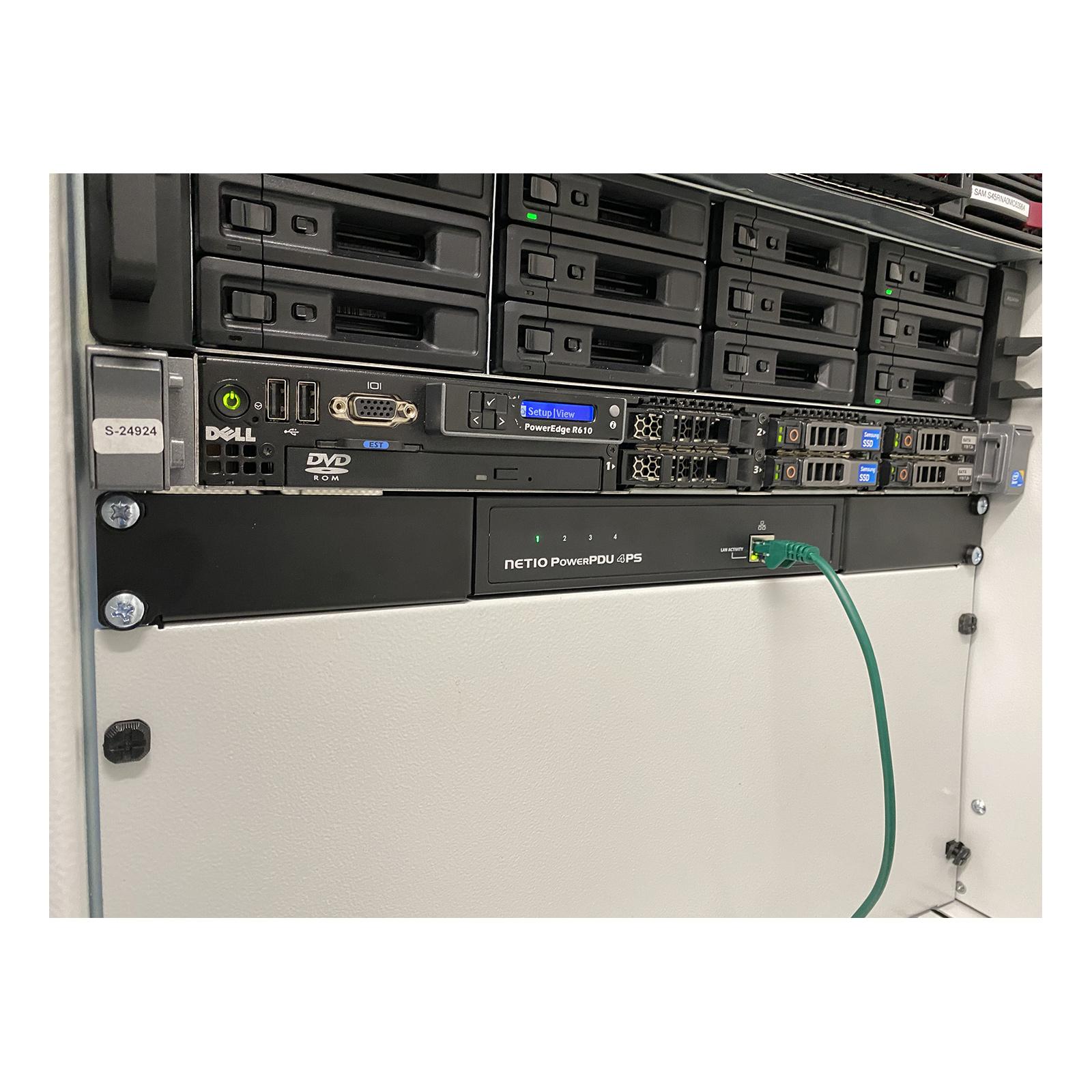

The NETIO PowerPDU 4PS Smart PDU is built for easy installation in 19" rack cabinets in either horizontal or vertical installations, or as a 1U device. It's perfect for Server Rooms or Data Centers to power servers, network switches, routers, and storage units. In AV setups, it can manage devices like cameras, projectors, or displays and can automatically turn them on each morning at a set time with a 2-second delay between each device to prevent power surges. Besides professional installations, it can also be used at home to power home automation and security equipment, keeping your smart home network running smoothly. With remote On/Off control for each outlet, you can manage connected devices from anywhere, ensuring your home network has the power when it needs it.

NETIO Mobile 2

Control your NETIO devices from your mobile device through the NETIO Mobile 2 mobile application for iOS and Android. The NETIO Mobile 2 app allows you to control multiple NETIO smart PDUs, strips, sockets and cables from your mobile device when sharing a local Wi-Fi network. If you have a subscription with the NETIO Cloud Service (sold separately) you can stay connected to your devices from anywhere, instead of having to be connected within the same Wi-Fi network.

From the NETIO Mobile App users can:

• Add/remove NETIO devices to your account
• Control individual power outputs or an entire NETIO PDU– ON, OFF, or RESET
• Read power consumption data (A, W, Wh)
• Activate / deactivate scheduled functions per each output
• Group outlets or NETIO devices together for synchronized control
• Output grouping – default group per one device can be changed individually
• Group control - Switch the whole group of outputs On / Off
• Group control - Activate / deactivate scheduled function for individual outputs, individual devices, or groups of devices
• Sorting of outputs within groups (by function or location)

NETIO Cloud

NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. From one screen you can control dozens of electrical devices.

Through NETIO Cloud, users can review the power consumption of devices plugged into a PDU outlet or send On/Off/Restart (power cycle) commands to individual or groups of PDU power outlets. Multiple NETIO PDUs can be connected to one account and users can control PDU output(s) from the NETIO Mobile app for iOS & Android or the NETIO Cloud Service web dashboard.

From the NETIO Cloud UI users can:

• Utilize all functions of the NETIO Mobile app
• Create multi-user profiles for sharing devices in one account
• Define User Rights (roles) for remote access control
• Receive PDU Connection Alert feature sends email notifications for PDU disconnections due to connection or power failure
• Group and sub-group structure of PDU devices and outlets
• Search for available outlets and groups of outlets or devices
• Download Historical Power Measurement Data
• Receive remote firmware upgrades

Contents

• Netio PowerPDU 4PS Smart PDU
• Manual

NOTE: Requires connection to a Wi-Fi network.

Smart PDUs Controlled Over LAN And Wi-Fi

Based out of the Czech Republic, NETIO Products Company is a proud producer of smart power strips and power cables that keep you and your equipment always connected. Their Internet connected power supplies support a wide variety of installations and utilize various API's and integrations to bring smart energy monitoring into any sized network or project.
