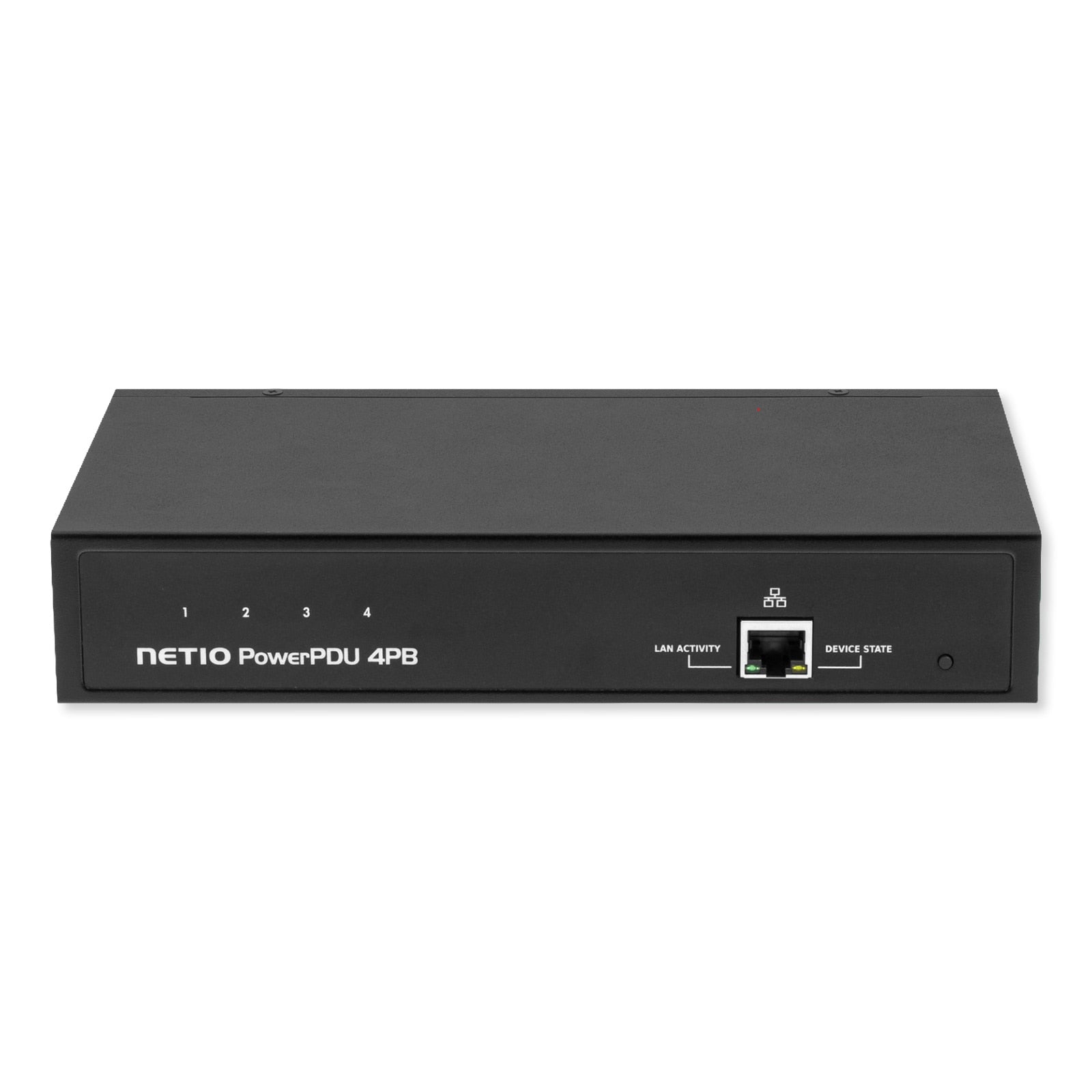

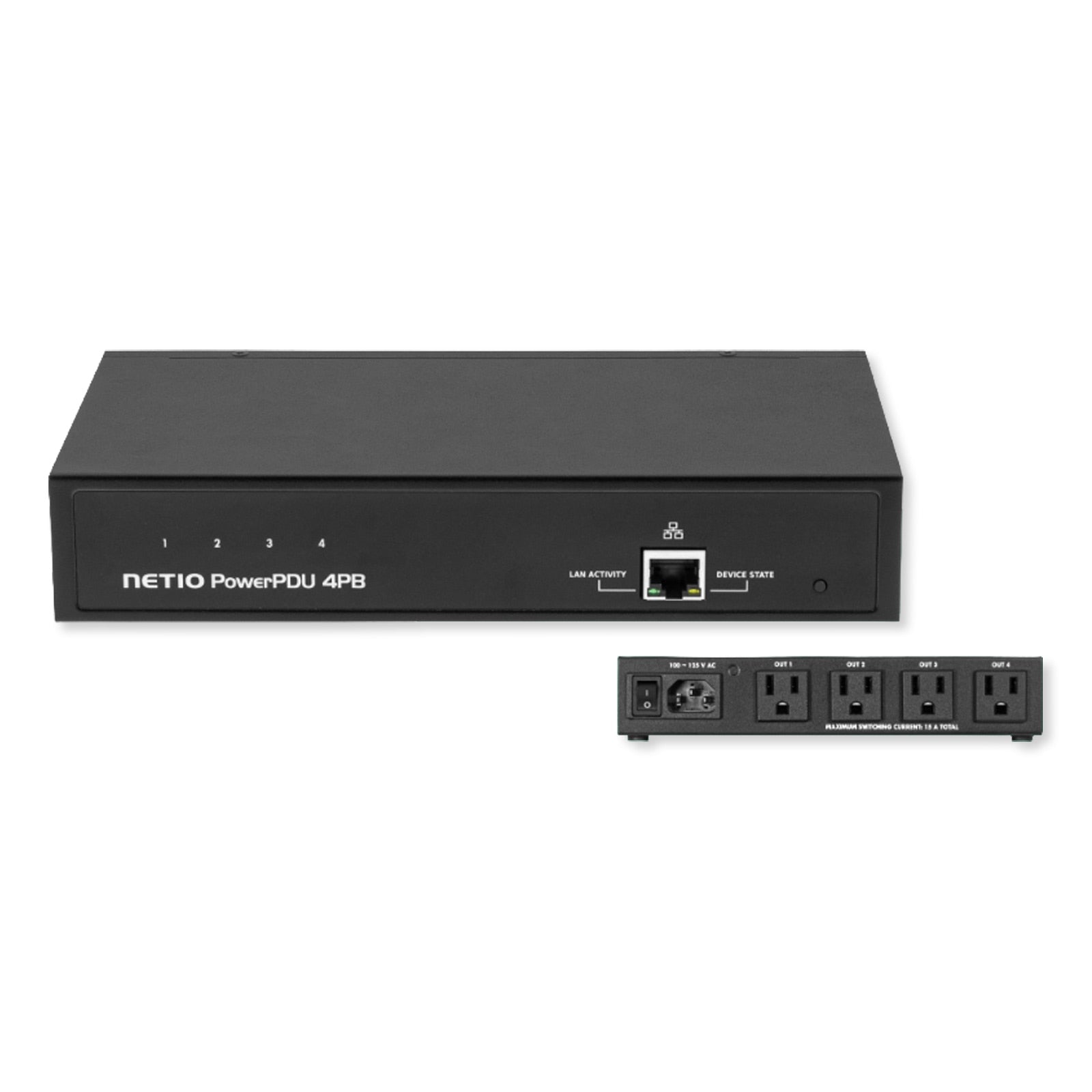

NETIO PowerPDU 4PB Smart Power Distribution Unit, 4 NEMA 5-15R Outlets

Connect 4 Devices to Your Wi-Fi Network for Remote Monitoring

Add remote monitoring and automated power management to your home or business with the NETIO PowerPDU 4PB Smart Power Distribution Unit, 4 NEMA 5-15R Outlets. The NETIO PowerPDU is a professional-grade power distribution unit (PDU) that features individually metered power outputs that offer precise energy monitoring and remote On/Off control of connected devices. The Power PDU connects to a local network via Ethernet to allow for remote monitoring and integration into IT management systems, home automation platforms, and private control networks through ready made AV drivers or open API integration with various connectivity and network protocols. Receive real time energy consumption information and remotely turn On/Off or power cycle a single or group of outlets from your mobile device or remote computer via the NETIO Cloud service, web dashboard, or with the NETIO mobile app.

• Power distribution unit (PDU) with four NEMA 5-15R metered and remote controllable power outputs
• Each outlet can be switched On/Off/Reset, scheduled to turn On/Off/Reset, and send power consumption data from the NETIO Mobile 2 app and/or NETIO Cloud service
• Individually control and monitor outlets or group together for synchronized operation
• Secure LAN connectivity with multiple supported API protocols (JSON, XML, SNMP, Modbus/TCP, MQTT, Telnet, and more) guards from remote intrusion
• Type 3 surge protection, IP 30 protection, and durable industrial-grade design
• 3rd party integrations with FIBARO, Flic, Control4, ELAN, Savant, elgato, and more

NETIO PowerPDUs are designed for IT managers, AV professionals, and automation integrators who require advanced remote power control and monitoring. Built-in electrical metering allows users and admins to track real-time consumption, set alerts, and manage load distribution across systems. The NETIO PowerPDU 4PB uses proprietary Zero Current Switching (ZCS) technology that dramatically reduces wear on internal relays when cycling power to high-inrush equipment like servers or AV gear. The device supports an extensive list of open API protocols that allow users to easily integrate the PDU with major automation platforms such as Crestron, Control4, Savant, RTI, Utelogy, and Atlona.

NETIO Mobile 2

Control your NETIO devices from your mobile device through the NETIO Mobile 2 mobile application for iOS and Android. The NETIO Mobile 2 app allows you to control multiple NETIO smart PDUs, strips, sockets and cables from your mobile device when sharing a local Wi-Fi network. If you have a subscription with the NETIO Cloud Service (sold separately) you can stay connected to your devices from anywhere, instead of having to be connected within the same Wi-Fi network.

From the NETIO Mobile App users can:

• Add/remove NETIO devices to your account
• Control individual power outputs or an entire NETIO PDU– ON, OFF, or RESET
• Read power consumption data (A, W, Wh)
• Activate / deactivate scheduled functions per each output
• Group outlets or NETIO devices together for synchronized control
• Output grouping – default group per one device can be changed individually
• Group control - Switch the whole group of outputs On / Off
• Group control - Activate / deactivate scheduled function for individual outputs, individual devices, or groups of devices
• Sorting of outputs within groups (by function or location)

NETIO Cloud

NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. From one screen you can control dozens of electrical devices.

Through NETIO Cloud, users can review the power consumption of devices plugged into a PDU outlet or send On/Off/Restart (power cycle) commands to individual or groups of PDU power outlets. Multiple NETIO PDUs can be connected to one account and users can control PDU output(s) from the NETIO Mobile app for iOS & Android or the NETIO Cloud Service web dashboard.

From the NETIO Cloud UI users can:

• Utilize all functions of the NETIO Mobile app
• Create multi-user profiles for sharing devices in one account
• Define User Rights (roles) for remote access control
• Receive PDU Connection Alert feature sends email notifications for PDU disconnections due to connection or power failure
• Group and sub-group structure of PDU devices and outlets
• Search for available outlets and groups of outlets or devices
• Download Historical Power Measurement Data
• Receive remote firmware upgrades

Installation Details

NETIO Power PDUs plug into a standard grounded outlet with the included power cord and connect to the Internet via Ethernet/LAN connection. Power PDUs fit into 1U racks or can be placed atop a flat surface. Simply place the PDU in your rack or designated area, connect it to your router or access point, plug in your equipment to the outlets, and configure settings via the web interface for immediate operation.

Contents

• NETIO PowerPDU 4PB Smart PDU
• Power Cable
• Manual

Notes

• Requires wired LAN connection; wireless functionality is not supported.
• NETIO Cloud service requires subscription and internet access; available separately.
• Maximum outlet capacity: up to 15 A per outlet (UL rating 12 A) on 100–125 V lines.
• For high-inrush devices, enable ZCS to protect relays and reduce electrical stress.
• Professional installation is recommended for rack integration and optimal performance.

Smart PDUs Controlled Over LAN And Wi-Fi

Based out of the Czech Republic, NETIO Products Company is a proud producer of smart power strips and power cables that keep you and your equipment always connected. Their Internet connected power supplies support a wide variety of installations and utilize various API's and integrations to bring smart energy monitoring into any sized network or project.
