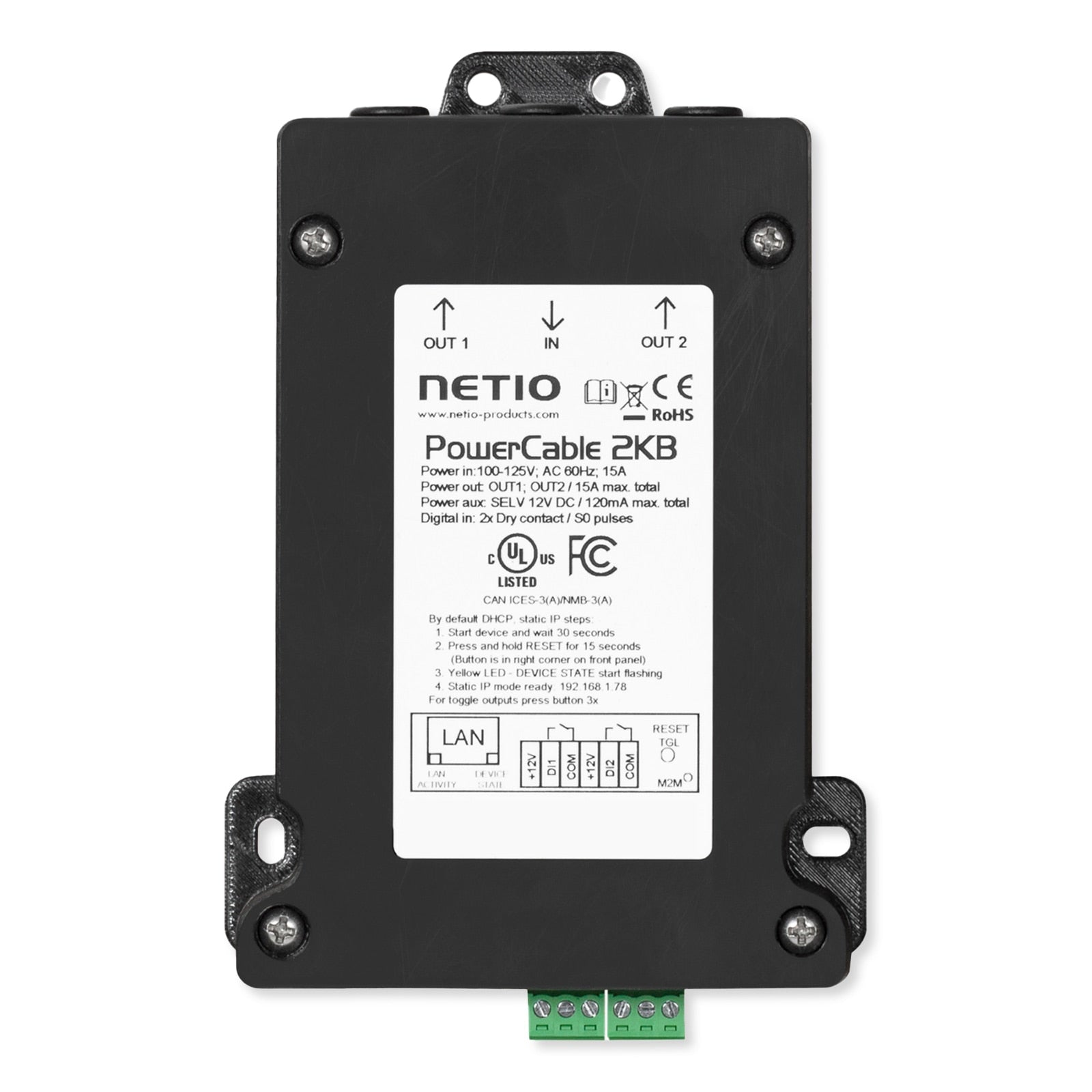

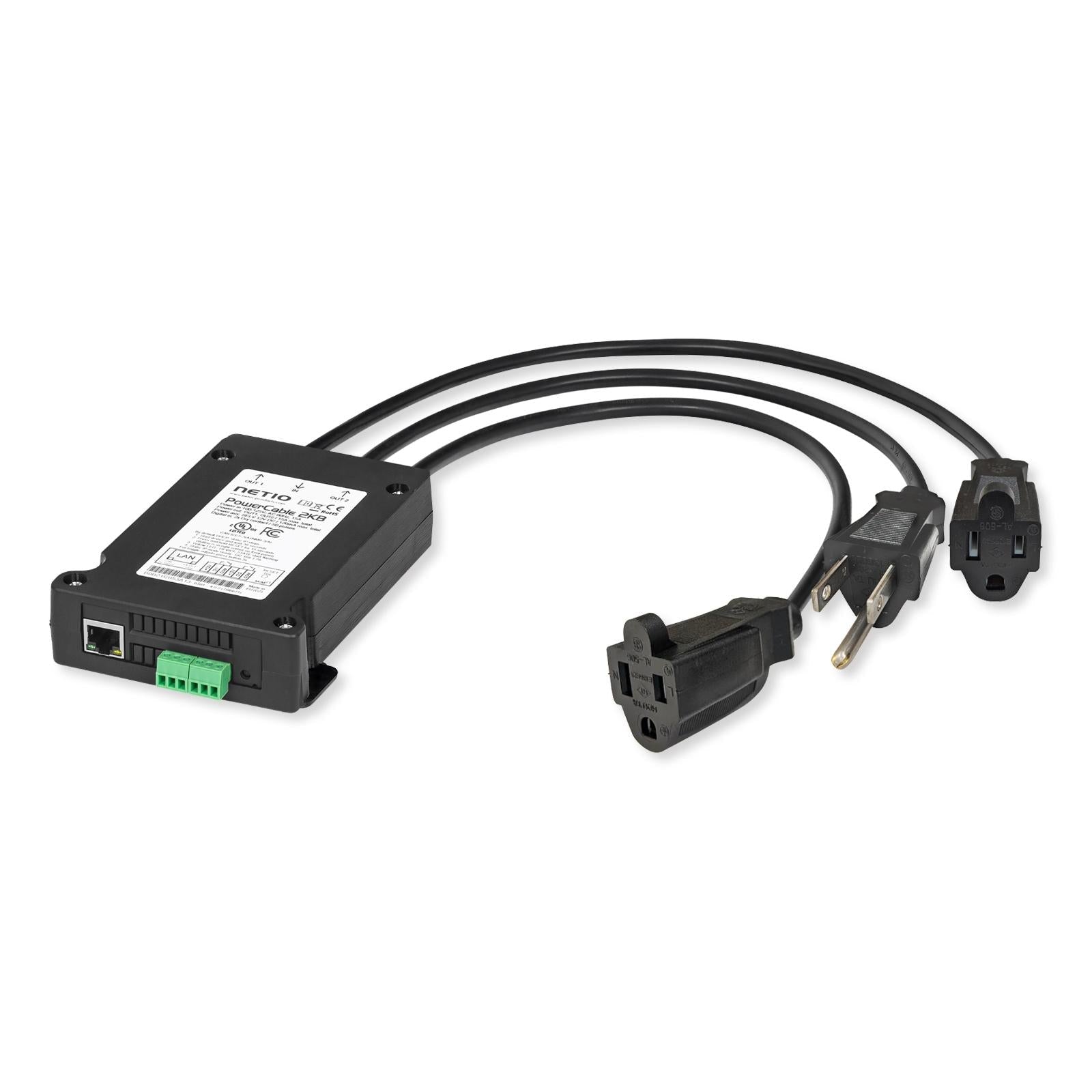

NETIO PowerCable 2KB Smart Flat Power Distribution Unit

Remote On/Off Control For Two Individual Devices With Power Metering

Provide power, protection, and On/Off control to two plug-in devices with the NETIO PowerCable 2KB Smart Flat Power Distribution Unit. Unlike NETIO's line of PowerPDUs that are meant for mounting within a rack cabinet, the PowerCable 2KB has a flat form factor to make it easier to be installed in limited spaces, such as behind a TV, on a small shelf, or in an entertainment cabinet. This flat PDU comes with 2 power outlets that can individually measure power usage (A, Wh, TPF, W, V, Hz) and can help track energy usage for each connected device. It also features 2 Digital Inputs, which can be used to read the state of external detectors such as a door contact or relay output. Zero Current Switching (ZCW) is also featured to help extend the lifespan of relay contacts when controlling 'problematic' devices, such as LED lights or electric motors. It also comes with LAN Ethernet and Wi-Fi connectivity and other features such as WatchDog Ping and Power, Open API support, Power-Up State, and HTTPS security.

• 2 individual outlets can be controlled and monitored separately over a network
• Remote energy monitoring can help determine the power usage of plugged in devices
• Scheduler allows for switching individual sockets On/Off at a specific time and day in the week
• Connected devices can be restarted remotely via a web interface, cloud service, mobile app, or open APIs
• Supports Open API M2M Protocols such as JSON or XML over HTTP, SNMP v1 or v3, Modbus/TCP, MQTT, URL-API and others
• Control any of the outputs or count S0 pulses (from external electricity meter) using a digital input (DI)

The NETIO PowerCable 2KB PDU can be used for various applications. It can be used at home to power home automation and security equipment to help keep your smart home network running smoothly. With remote On/Off control for each outlet, you can manage connected devices from anywhere, ensuring your home network has the power when it needs it. It's great for IT/Networking installations to power routers, network switches, or modems, which you can reboot from a remote location, saving you the time it takes to physically reboot your system. It can also be used for AV/Broadcasting purposes to power media servers, lighting controllers, or monitors. And with the Scheduler functionality, you can have each independent outlet automatically turn On or Off at specified times and days of week.

NETIO Mobile 2

Control your NETIO devices from your mobile device through the NETIO Mobile 2 mobile application for iOS and Android. The NETIO Mobile 2 app allows you to control multiple NETIO smart PDUs, strips, sockets and cables from your mobile device when sharing a local Wi-Fi network. If you have a subscription with the NETIO Cloud Service (sold separately) you can stay connected to your devices from anywhere, instead of having to be connected within the same Wi-Fi network.

From the NETIO Mobile App users can:

• Add/remove NETIO devices to your account
• Control individual power outputs or an entire NETIO PDU– ON, OFF, or RESET
• Read power consumption data (A, W, Wh)
• Activate / deactivate scheduled functions per each output
• Group outlets or NETIO devices together for synchronized control
• Output grouping – default group per one device can be changed individually
• Group control - Switch the whole group of outputs On / Off
• Group control - Activate / deactivate scheduled function for individual outputs, individual devices, or groups of devices
• Sorting of outputs within groups (by function or location)

NETIO Cloud

NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. From one screen you can control dozens of electrical devices.

Through NETIO Cloud, users can review the power consumption of devices plugged into a PDU outlet or send On/Off/Restart (power cycle) commands to individual or groups of PDU power outlets. Multiple NETIO PDUs can be connected to one account and users can control PDU output(s) from the NETIO Mobile app for iOS & Android or the NETIO Cloud Service web dashboard.

From the NETIO Cloud UI users can:

• Utilize all functions of the NETIO Mobile app
• Create multi-user profiles for sharing devices in one account
• Define User Rights (roles) for remote access control
• Receive PDU Connection Alert feature sends email notifications for PDU disconnections due to connection or power failure
• Group and sub-group structure of PDU devices and outlets
• Search for available outlets and groups of outlets or devices
• Download Historical Power Measurement Data
• Receive remote firmware upgrades

Contents

• NETIO PowerCable 2KB Smart Flat Power Distribution Unit
• Manual

NOTE: Requires connection to a Wi-Fi network.

Smart PDUs Controlled Over LAN And Wi-Fi

Based out of the Czech Republic, NETIO Products Company is a proud producer of smart power strips and power cables that keep you and your equipment always connected. Their Internet connected power supplies support a wide variety of installations and utilize various API's and integrations to bring smart energy monitoring into any sized network or project.
