  • Seco-Larm Enforcer Mini Adjustable Timer Module

    SESA026Q

    After-Market Time Delay For Electronic Locks

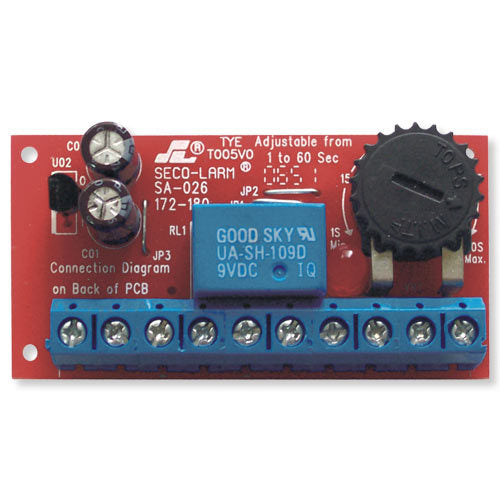

    Ideal for use with electronic locks that don’t have a built-in time delay feature, the Seco-Larm Enforcer Mini Adjustable Timer Module (SA-026Q) is a low-voltage miniature delay timer module that extends the activation time of any momentary contact switch. Time can be delayed by 1~60 seconds through a field-adjustable rotary pot.

    • Adjustable timer from 1~60 seconds via on-board rotary pot
    • Operates using an N.O./N.C. switch trigger
    • Compact design allows easy, versatile installation
    • Built-in buzzer output for audible confirmation
    • Includes double-sided foam tape

    The Timer Module’s compact size makes it easy to install either in a single-gang box or inside a door frame cavity with the included double-sided mounting tape. It operates on 12-24 volts AC or DC.

    Building A Secure Future Since 1971

    So

    • Manufacturer Part #: SA-026Q
    • Operating Voltage: 12~24 volts AC or DC
    • Current: 1.8mA (standby), 75mA (active)
    • Relay Output: Form-C (SPDT) via wires
    • Contact Rating: 3A@24VDC
    • Dimensions: 1-3/16 x 2-9/32 x 5/8 inches (30 x 58 x 16 mm)
    • Approvals: RoHS
    • Warranty: 1 Year
