    Home / Access Controls / Seco-Larm Enforcer Electromagnetic Lock, 300 Lbs.

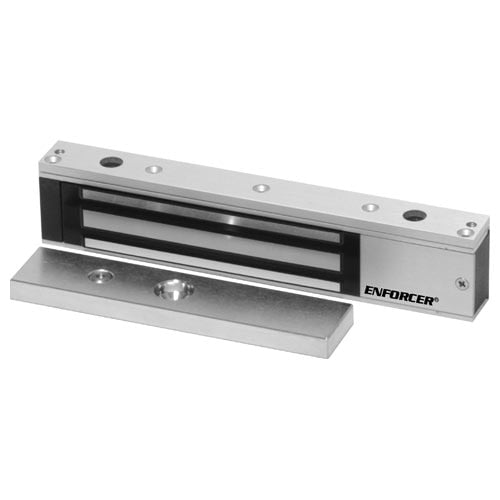

    Seco-Larm Enforcer Electromagnetic Lock, 300 Lbs.

    Seco-Larm Enforcer Electromagnetic Lock, 300 Lbs.

    SEE941SA300RQ

    $90.95

    Notify me when this product is available:

    Reversible For Left Or Right Applications

    With 300 pounds (136kg) of electromagnetic holding force, the Seco-Larm Enforcer Electromagnetic Lock, 300 Lbs. is ideal for securing indoor cabinets, small enclosures, or pedestrian gates. This premium mag-lock is housed in anodized aluminum and features MOV surge protection to ensure long-term reliability. It also comes with a detachable mounting bracket and all mounting hardware, making installation quick and easy.

    • Ideal for cabinets, small enclosure or gates
    • Reversible magnet for left or right-swing doors
    • Reliable security with MOV surge protection
    • Selectable 12/24 VDC operation
    • Detachable mounting bracket for easy installation

    Seco-Larm’s E-941SA series of electromagnetic locks provide an ideal solution for securing a door, cabinet or drawer against unauthorized entry. When the electromagnetic lock is powered, a strong magnetic field is

    Parts List

    • Mounting plate
    • Electromagnet
    • Armature plate
    • Armature screw
    • (2) Steel washers
    • Rubber washer
    • Sexnut bolt
    • (2) Guide pins
    • (5) Long self-tapping screws
    • (2) Hex-head mounting screws
    • (2) Tamper caps
    • (2) Allen wrenches

    Technical Details

    • Holding force: 300 pounds (136kg)
    • Operating voltage: 12VDC, ±10 percent
    • Current draw: 420mA at 12VDC, 210mA at 24VDC
    • Temperature: 14 to 131 degrees F (-10 to 55 degrees C)
    • Magnet size: 7-7/8 x 1-3/8 x 15/16 inches (200 x 35 x 24 mm)
    • Armature size: 6 x 3/8 x 1-1/4 inches (152 x 10 x 32 mm)
    • RoHS compliant: Yes
    • Weight: 3 pounds, 5 ounces (1.5kg)

    »Seco-Larm Enforcer Electromagnetic Lock Template (.pdf)»Seco-Larm Enforcer Electromagnetic Lock Specifications (.pdf)»Seco-Larm Enforcer Electromagnetic Lock Manual (.pdf)
