    Vera VistaCam 702 Indoor Wi-Fi Camera — Full Specifications

    September 08, 2026 2 min read

    Full spec sheet and part callouts for the Vera VistaCam 702 indoor 1080p Wi-Fi camera with 2-way audio and night vision.

    💾 Download Original PDF
    Full text manual (for reference)

    Full specifications and details for the Vera VistaCam 702 — an indoor, 1080p HD Wi-Fi camera with two-way audio, infrared night vision, and motion-activated recording, designed to double as a home automation motion sensor.

    Key Features

    • Indoor camera with full HD 1080p resolution
    • Two-way talk lets you communicate with people in your home
    • Infrared night vision keeps watch when you're asleep (up to 16 feet)
    • 16GB microSD card included (expandable up to 128GB)
    • Motion-activated recording — enables home automation features such as turning on a hallway light to 30% when motion is detected after dark
    • Magnetic base for easy installation — place on a flat surface or mount on a wall

    Camera Detail Callouts

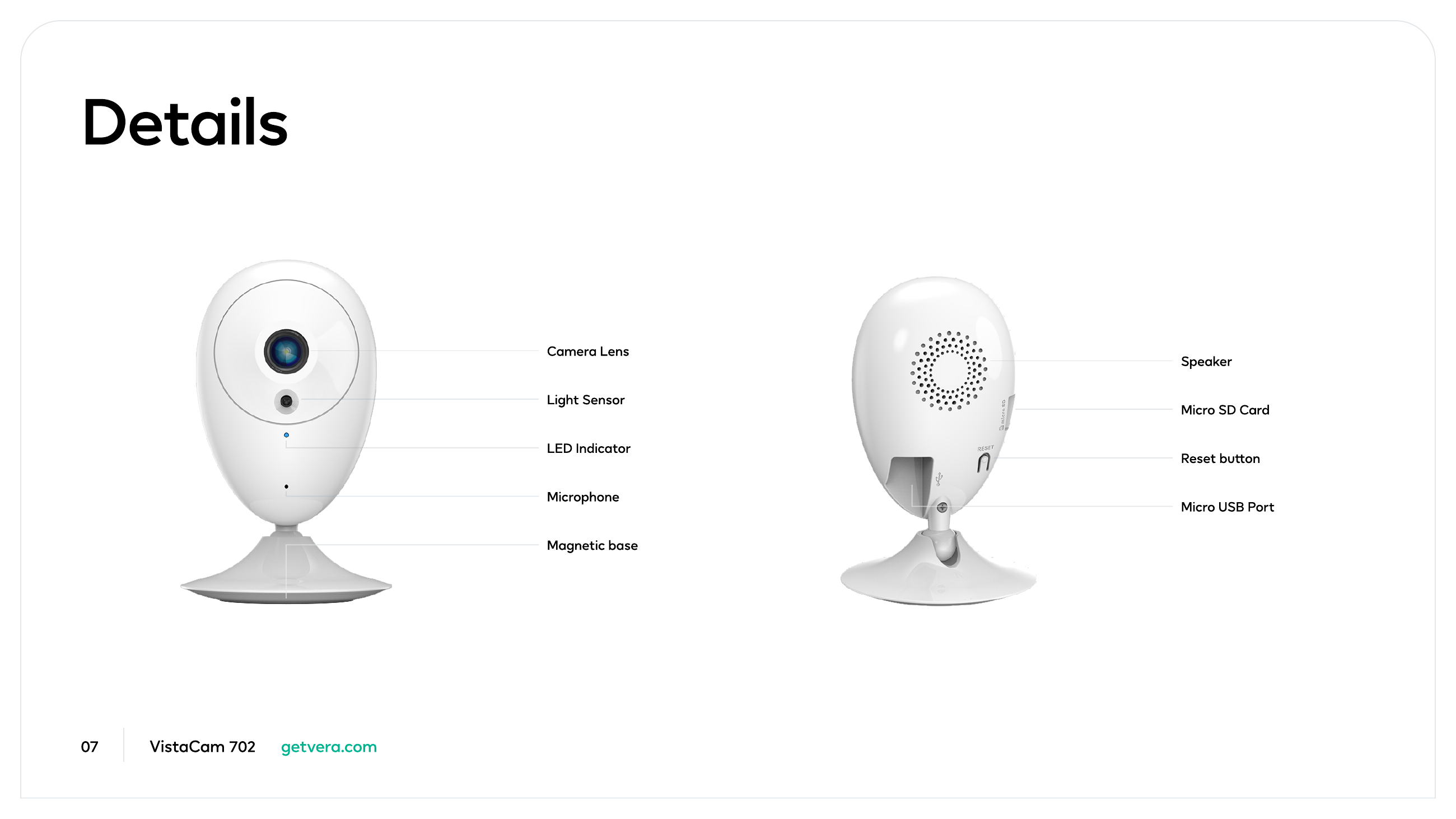

    Vera VistaCam 702 front and back detail callouts showing camera lens, light sensor, LED indicator, microphone, magnetic base, speaker, micro SD card slot, reset button, and micro USB port
    Front view: camera lens, light sensor, LED indicator, microphone, magnetic base. Back view: speaker, micro SD card, reset button, micro USB port.

    Specifications

    Video

    • Recording quality: 1080p HD (1920x1080) at 30fps; also 1080p, 704x480, 528x320
    • Compression: H.264 Main Profile, M-JPEG Video
    • Streaming: Mobile phone 3GPP compatible
    • Video backup storage: 16GB included, up to 128GB
    • Dynamic range: WDR
    • Image settings: Auto adjust exposure, contrast, brightness, sharpness, flip

    Camera

    • Image sensor: 2 megapixels, 1/2.7" HD progressive scan CMOS
    • Minimum illumination: 0 Lux (with IR LED)
    • Lens: Fixed focus lens, F2.0 aperture
    • Pan-Tilt-Zoom: No
    • Motion detection: Mobile phone 3GPP compatible
    • Field of view: 115° horizontal, 135° diagonal
    • Night vision: IR cut filter with auto switch (manual mode optional); 16ft (5m) range standard, up to 25ft (7.5m); light sensor

    Audio

    • Microphone: 36 dB ± 3dB, G.711
    • Speaker: Yes
    • 2-way audio: Yes

    Hardware

    • Processor: HI3518EV200, 540MHz
    • Memory: 16MB NOR Flash, 64MB DDR2 RAM
    • Lights: 1 front-facing multi-color LED
    • Buttons: Reset
    • Expandable storage: Micro SD, 16GB installed, up to 128GB
    • Connectors: Micro USB port (power supply)

    Network

    • Wi-Fi: 802.11b/g/n @ 2.4GHz (WEP, WPA, WPA2 encryption supported)
    • Protocols: DHCP, HTTP, NTP, RTSP, ISAPI
    • Ethernet: No

    Power

    • Input: AC power adapter, 100–240 VAC, 50–60 Hz. Indoor power outlet required.
    • Output: DC 5V/1A

    Size

    • Height: 4.3 in (110mm)
    • Width: 2.28 in (58mm)
    • Depth: 1.49 in (38mm)

    Environment

    • Storage temperature: 14° to 113°F (-10° to 45°C); humidity 95% or less (non-condensing)
    • Operating environment: Indoor use only, not weather resistant; temperature 14° to 113°F (-10° to 45°C); humidity 95% or less (non-condensing)

    What's In the Box

    • VC702 camera
    • Power supply with 10-foot cable
    • Metal mounting plate with adhesive sticker
    • Quick Start Guide
