Uniview IPC2125SR5-ADF28KM-G — 5MP HD Mini IR Fixed Bullet Network Camera Datasheet
5MP PoE bullet camera with LightHunter low-light tech, 120dB WDR, up to 50m smart IR range, and IP67 outdoor rating.
Full text manual (for reference)
Overview
The IPC2125SR5-ADF28(40)KM-G is a 5MP HD Mini IR Fixed Bullet Network Camera featuring a 1/2.7" 5-megapixel CMOS sensor, LightHunter low-light technology, and 120dB true WDR for clear images in strong-light scenes. It's IP67-rated for outdoor use, supports PoE power, and offers up to 50m (164ft) of smart IR range.
Key Features
- High quality image with 5MP, 1/2.7" CMOS sensor
- 5MP (2880x1620) @ 25/20fps; 4MP (2560x1440) @ 25/20fps; 3MP (2304x1296) @ 30/25fps; 2MP (1920x1080) @ 30/25fps
- Ultra 265, H.265, H.264, MJPEG video compression
- LightHunter technology for high image quality in low illumination
- 120dB true WDR technology for clear images in strong-light scenes
- Support for 9:16 Corridor Mode
- Built-in microphone
- Smart IR, up to 50m (164ft) IR distance
- Supports up to 256GB Micro SD card for edge storage
- IP67 protection rating
- Supports PoE power supply (IEEE 802.3af)
- 3-Axis adjustment
Specifications
| Category | Spec | IPC2125SR5-ADF28KM-G |
|---|---|---|
| Camera | Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Camera | Lens | 2.8mm@F1.6 |
| Camera | DORI Distance (Detect/Observe/Recognize/Identify) | 63.0m / 25.2m / 12.6m / 6.3m |
| Camera | Angle of View (H/V/O) | 112.9° / 59.1° / 121.2° |
| Camera | Adjustment Angle | Pan: 0°-360°; Tilt: 0°-90°; Rotate: 0°-360° |
| Camera | Shutter | Auto/Manual, 1~1/100000s |
| Camera | Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR on |
| Camera | Day/Night | IR-cut filter with auto switch (ICR) |
| Camera | S/N Ratio | >56dB |
| Camera | IR Range / Wavelength | Up to 50m (164ft), 850nm |
| Camera | WDR | 120dB |
| Video | Compression | Ultra 265, H.265, H.264, MJPEG |
| Video | Frame Rate (Main Stream) | 5MP (2880x1620) max 25fps; 4MP (2560x1440) max 25fps; 3MP (2304x1296) max 30fps; 1080P max 30fps |
| Video | Video Bit Rate | 128 Kbps ~ 16 Mbps |
| Video | OSD / Privacy Mask / ROI / Motion Detection | Up to 4 OSDs; up to 4 privacy mask areas; up to 8 ROI areas; up to 4 motion detection areas |
| Audio | Compression / Sampling | G.711, 8KHz sampling; audio suppression supported |
| Storage | Edge / Network | Micro SD up to 256GB; ANR, NAS (NFS) |
| Smart | Behavior Detection | Cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection |
| Network | Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP |
| Network | Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Network | Client Software | EZStation, EZView, EZLive |
| Interface | Network / Mic | 10/100M Base-TX Ethernet; built-in mic supported |
| Certifications | Compliance | UL60950-1; FCC Part 15 |
| General | Power | DC 12V±25%, PoE (IEEE 802.3af); max 6.0W consumption |
| General | Dimensions (L x W x H) | 190 x 73 x 71mm (7.5" x 2.9" x 2.8") |
| General | Net Weight | 0.45kg (0.99lb) |
| General | Material | Metal |
| General | Working/Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity ≤95% RH (non-condensing) |
| General | Surge Protection | 4KV |
| General | Ingress Protection | IP67 |

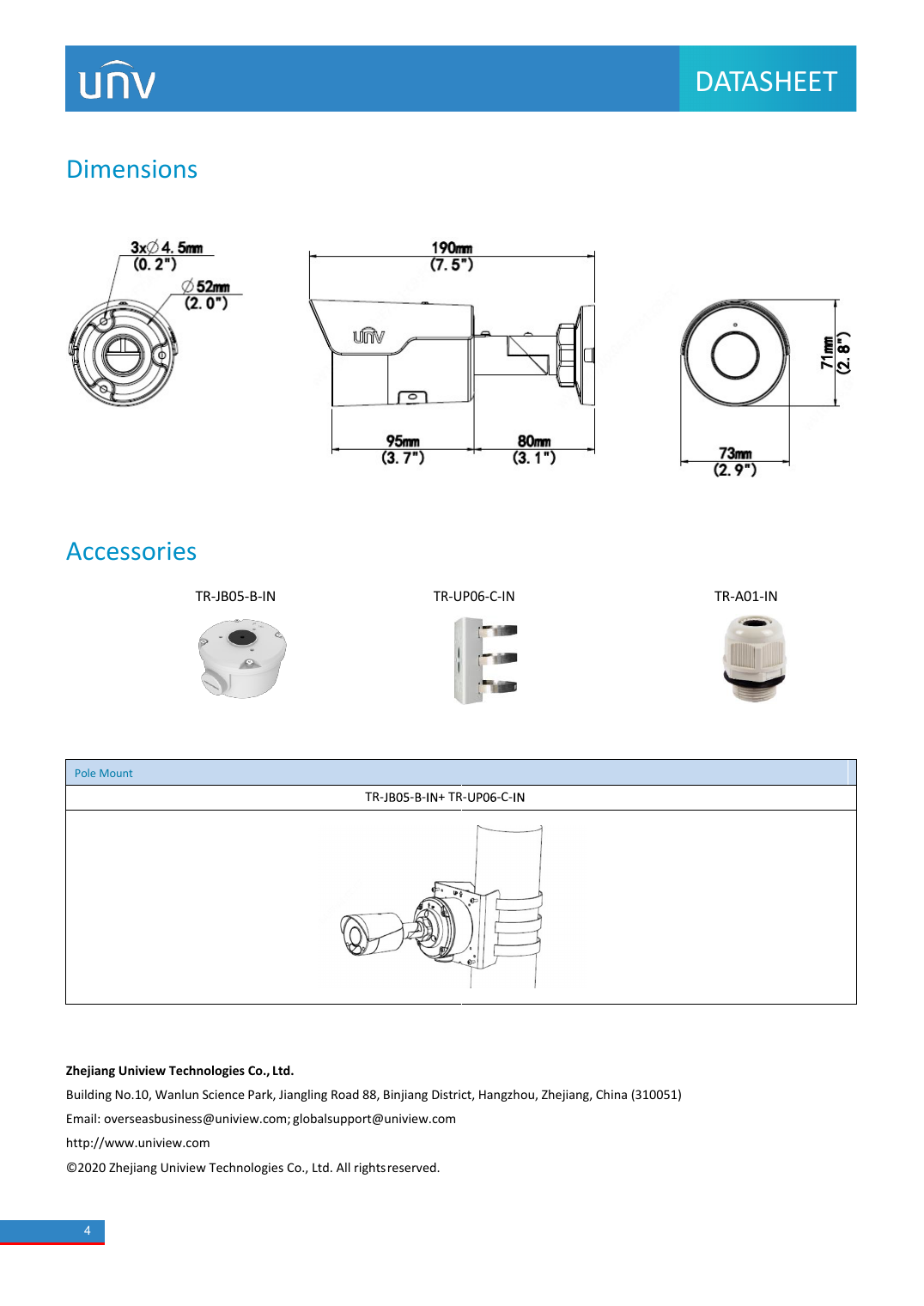

Dimensions & Accessories
Manufacturer
Zhejiang Uniview Technologies Co., Ltd.
Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051)
Email: overseasbusiness@uniview.com, globalsupport@uniview.com | www.uniview.com
