    SECO-LARM VC-2VAQ — BNC-to-VGA Converter VESA Mount Bracket Diagram

    September 08, 2026 1 min read

    VESA mount bracket installation diagram for the SECO-LARM VC-2VAQ BNC-to-VGA converter, showing how to mount the converter to the rear of an LCD monitor using the included bracket.

    💾 Download Original PDF 🛒 View Product
    Full text manual (for reference)

    VESA mount bracket installation diagram for the SECO-LARM VC-2VAQ BNC-to-VGA converter — shows how to mount the converter to the rear of an LCD monitor using the included bracket.

    Overview

    This diagram covers mounting the BNC-to-VGA converter's included bracket to the standard VESA mount points on the back of an LCD monitor, plus an alternate mounting position for use alongside an existing monitor arm.

    Mounting Diagram

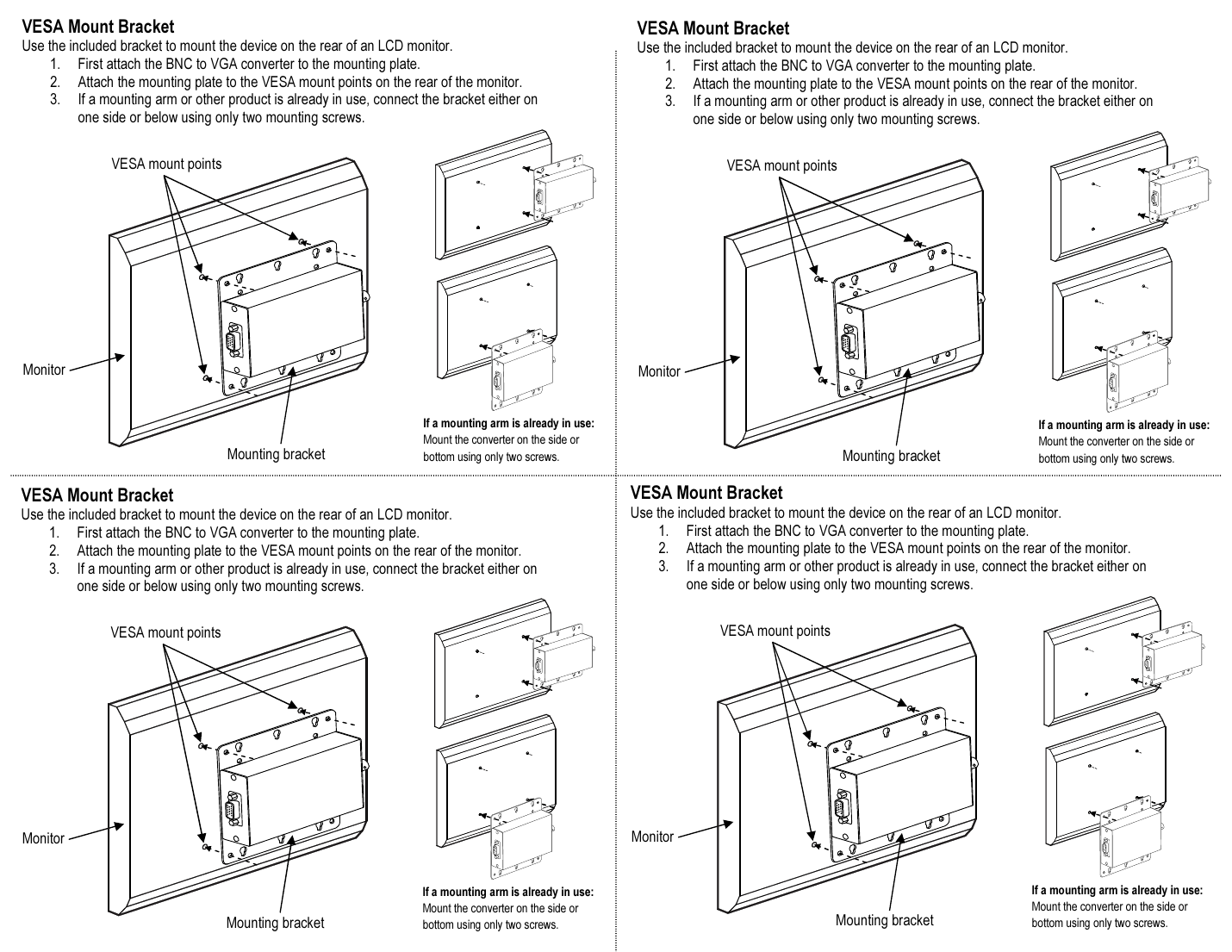

    SECO-LARM VC-2VAQ VESA mount bracket installation diagram showing BNC to VGA converter mounted to rear of LCD monitor
    VESA mount bracket installation, with alternate side/bottom mounting position when a monitor arm is already in use

    Installation Steps

    1. First attach the BNC to VGA converter to the mounting plate.
    2. Attach the mounting plate to the VESA mount points on the rear of the monitor.
    3. If a mounting arm or other product is already in use, connect the bracket either on one side or below using only two mounting screws.
