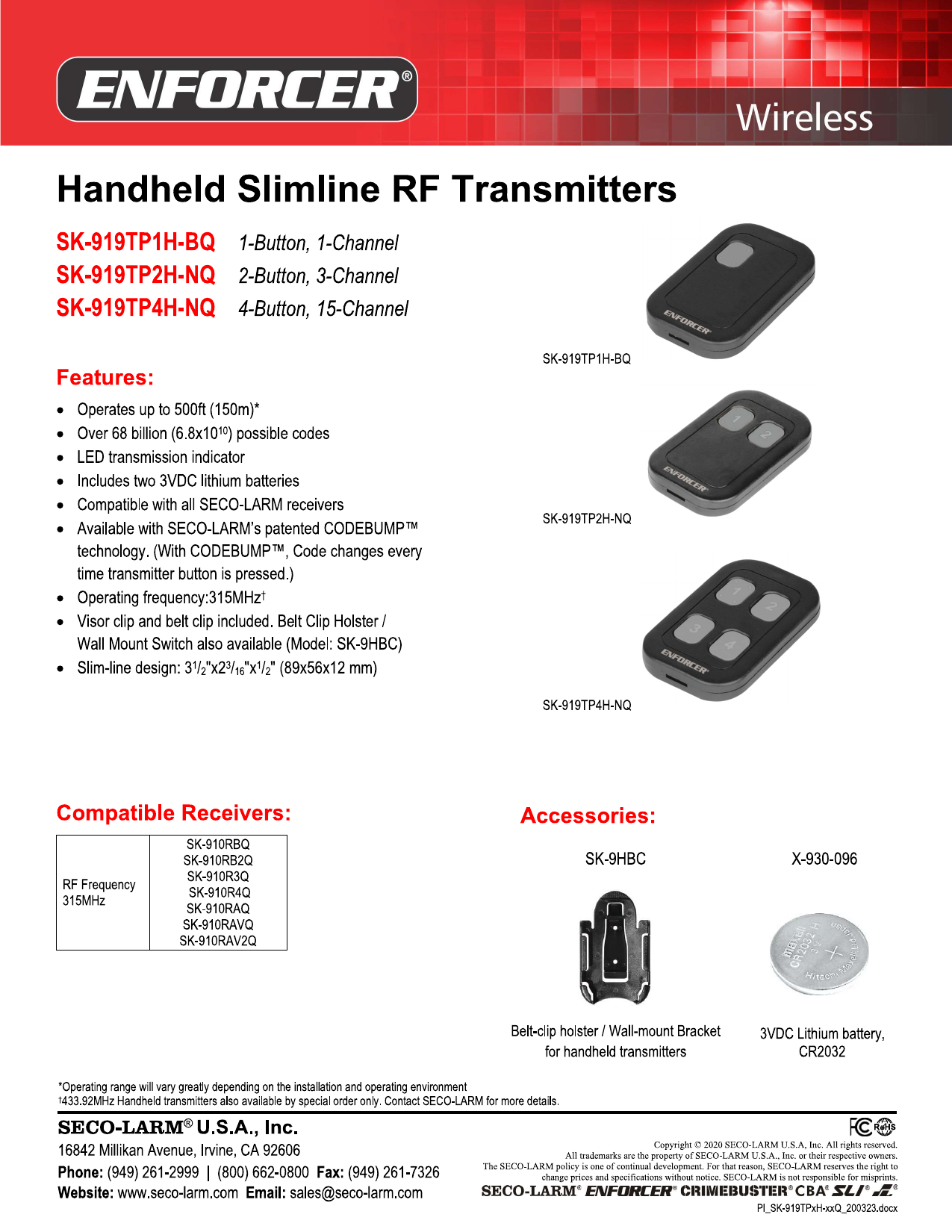

SECO-LARM SK-919TPxH-xQ — Handheld Slimline RF Transmitters Specifications

Product specification sheet for the SECO-LARM ENFORCER® Wireless Handheld Slimline RF Transmitters: SK-919TP1H-BQ (1-button), SK-919TP2H-NQ (2-button), and SK-919TP4H-NQ (4-button).

Overview

These slim-line handheld RF transmitters operate at 315MHz and are compatible with all SECO-LARM receivers. Each model offers a different button count and channel capacity, with over 68 billion possible codes for security. Optional CODEBUMP™ technology changes the transmitted code every time a button is pressed.

Models

Features

• Operates up to 500ft (150m)*
• Over 68 billion (6.8x10¹⁰) possible codes
• LED transmission indicator
• Includes two 3VDC lithium batteries
• Compatible with all SECO-LARM receivers
• Available with SECO-LARM's patented CODEBUMP™ technology (code changes on every button press)
• Operating frequency: 315MHz†
• Visor clip and belt clip included; optional Belt Clip Holster / Wall Mount Switch (Model: SK-9HBC)
• Slim-line design: 3½″ x 2-3/16″ x ½″ (89 x 56 x 12 mm)

*Operating range will vary greatly depending on the installation and operating environment.
†433.92MHz handheld transmitters also available by special order only — contact SECO-LARM for details.

Compatible Receivers (315MHz)

• SK-910RBQ
• SK-910RB2Q
• SK-910R3Q
• SK-910R4Q
• SK-910RAQ
• SK-910RAVQ
• SK-910RAV2Q

Accessories

• SK-9HBC — Belt-clip holster / wall-mount bracket for handheld transmitters
• X-930-096 — 3VDC lithium battery, CR2032

Warranty

Manufactured by SECO-LARM U.S.A., Inc., 16842 Millikan Avenue, Irvine, CA 92606. Phone: (949) 261-2999 / (800) 662-0800. Refer to SECO-LARM's standard product warranty terms.
