SECO-LARM RM-R100x Room Occupancy Monitor — Specifications
Specification sheet for the SECO-LARM RM-R100x Room Occupancy Monitor family — a wireless sensor/indicator system for fitting rooms and restrooms.
Full text manual (for reference)
Specification sheet for the SECO-LARM RM-R100x Room Occupancy Monitor family — a wireless sensor/indicator system for signaling whether a fitting room, restroom, or similar space is occupied or vacant.
Overview
The Room Occupancy Monitor (ROM) indicates whether a room — like a restroom or fitting room — is occupied or vacant. It's programmable to detect occupancy via a PIR sensor (movement), phototransistor (light), or door sensor input (magnetic contact switch), and can flash to alert staff to check on an occupant after a set amount of time. Each sensor can transmit to an unlimited number of indicators, letting staff and customers monitor room status from a distance.
Key Features
- Monitors fitting rooms, restrooms, and similar spaces
- Increases sales, safety, customer flow, and satisfaction; reduces crowding, theft, and embarrassing situations
- Programmable input: PIR sensor (movement), phototransistor (light), or door sensor (magnetic contact switch)
- Programmable reminder flash after a set time (3, 5, 10, 15, 20, or 30 minutes) to alert staff to check on an occupant
- Optional Help Button (RM-R100-TBQ) — indicator flashes and beeps when pressed (beep available on RM-R100-KB1Q only)
- Each sensor can transmit to an unlimited number of indicators
- Easy installation via Micro USB or terminal block (5~12 VDC)
- Service button available
Ordering Information
| Model | Description |
|---|---|
| RM-R100-KB1Q | 1-Room Occupancy Monitor Kit — includes sensor, 1-Room Indicator, Micro USB cables, and decals. This kit also enables the Help Button beep-alert feature. |
| RM-R100-RB1Q | Additional 1-Room Indicator — programmable to flash after a preset time (3/5/10/15/20/30 min); flashes and beeps if Help Button is pressed; multiple decals included; Micro USB or terminal block (5~12VDC). |
| RM-R100-R2Q | Additional 2-Room Indicator — monitors two rooms (requires an additional Room Occupancy Monitor sensor); same preset-time flashing and decal support. |
| RM-R100-TBQ | Help Button — lets an occupant signal for help without leaving the room; wall-mount or desktop use; powered by a 9VDC battery (included); includes multiple message plates or supports a custom printed message. |
| RM-R100-TH2Q | Indicator Controller — allows easy resetting of 1-Room and 2-Room Indicators after a Wall-Mount Help Button is used; includes belt clip. |
Application Examples
- 1-Fitting Room: One sensor + one indicator monitors a single fitting room.
- 2-Fitting Room: Requires two full Room Occupancy Monitor kits to recreate.

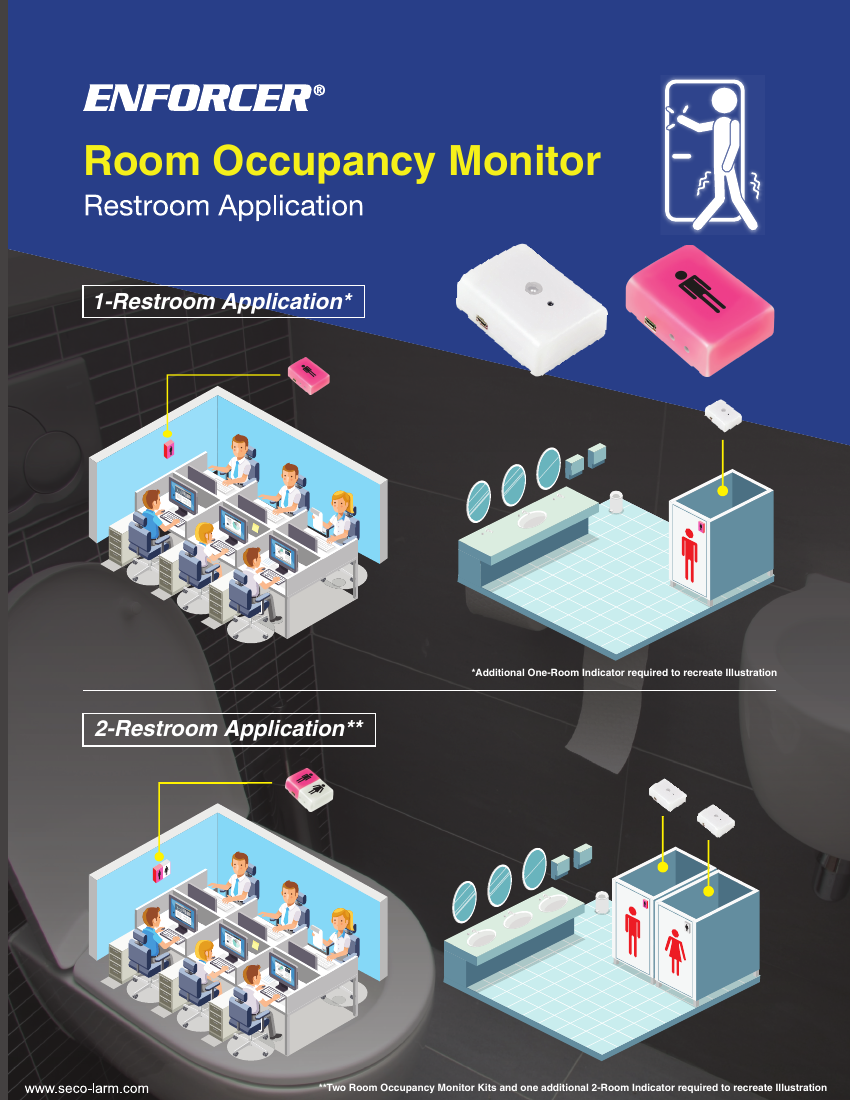

- 1-Restroom: One sensor with an additional 1-Room Indicator (RM-R100-RB1Q) for remote viewing at a staff desk.
- 2-Restroom: Requires two Room Occupancy Monitor kits plus an additional 2-Room Indicator (RM-R100-R2Q) to monitor both rooms from one display.
Multiple decals are included with the kit for labeling occupied/vacant status at the room entrance. Manufacturer: SECO-LARM U.S.A., Inc., 16842 Millikan Avenue, Irvine, CA 92606. Phone: (949) 261-2999 / (800) 662-0800.
