SECO-LARM ENFORCER Bluetooth Access Controllers — Product Brochure
Product brochure for the SECO-LARM ENFORCER Bluetooth Access Controllers.
Full text manual (for reference)
Product brochure for the SECO-LARM ENFORCER Bluetooth® Access Controllers — a line of app-programmed keypads and proximity readers (SK-B241-PQ, SK-B141-PQ, SK-B141-DQ, PR-B1124-PQ) that use the free SL Access™ app for setup and management, with no cloud, no subscription fees, and no control panel required.

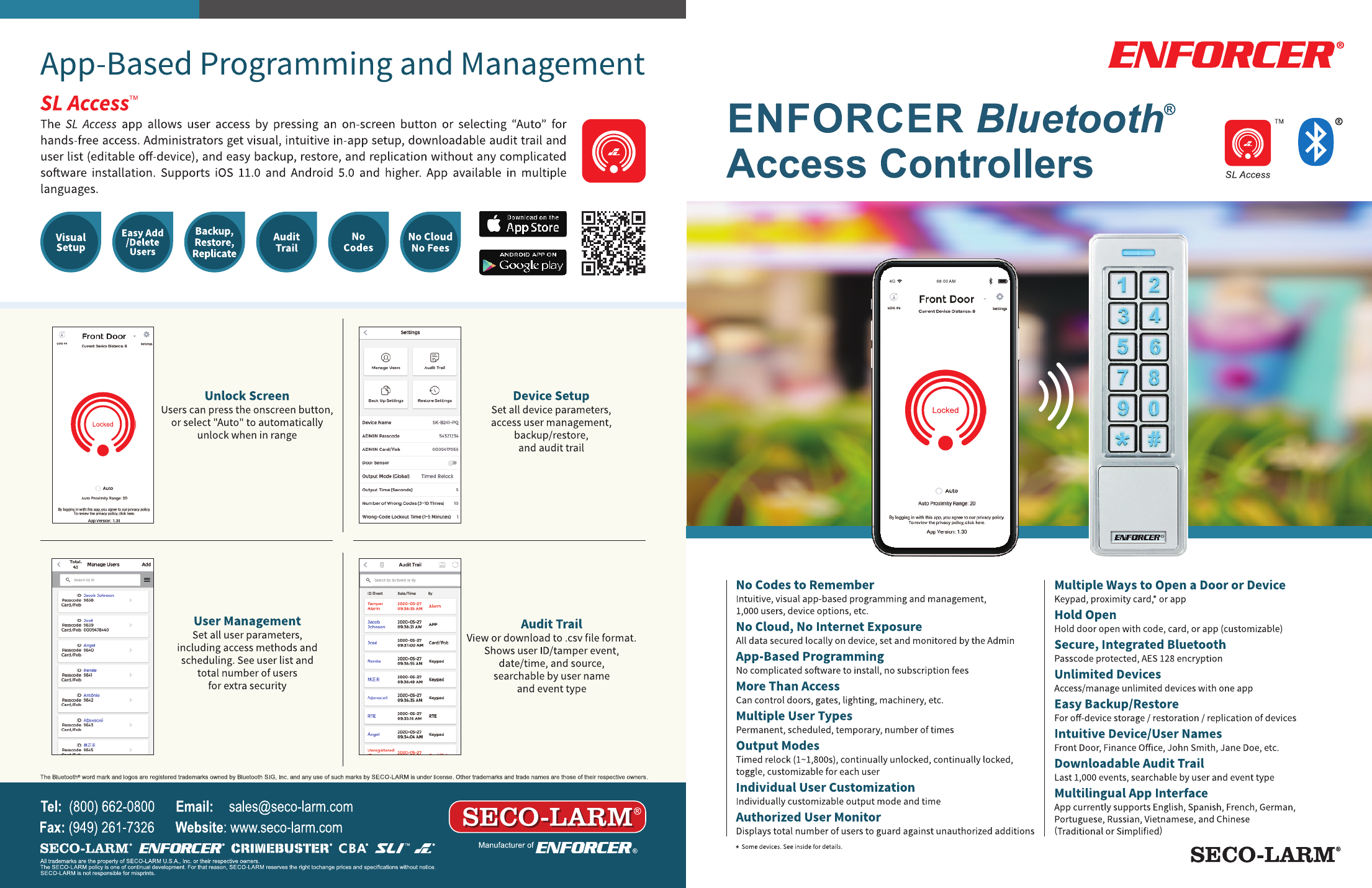

App-Based Programming: SL Access™
The SL Access app lets installers and admins set up and manage every device visually — no access codes to remember, no software installation, and no monthly fees. Users can unlock a door by pressing an on-screen button in the app, or enable "Auto" mode for hands-free unlock when in Bluetooth range. The app is available for iOS 11.0+ and Android 5.0+, and supports English, Spanish, French, German, Portuguese, Russian, Vietnamese, and Chinese (Traditional/Simplified).
Key Features
For Users
- Multiple ways to unlock: keypad code, proximity card/fob, or the SL Access app.
- "Auto" hands-free unlock when the paired phone is within Bluetooth range.
- Customizable hold-open via code, card, or app.
For Administrators / Installers
- No codes to remember — visual, app-based programming with no software install and no subscription fees.
- No cloud, no internet exposure — all data is secured locally on the device and managed by the admin.
- Secure, integrated Bluetooth Low Energy (BLE 4.2), passcode protected with AES 128 encryption.
- Manage unlimited devices from a single app; intuitive device and user naming (e.g. "Front Door," "Finance Office," "John Smith").
- Multiple user types: permanent, scheduled, temporary, and limited-use.
- Downloadable, searchable audit trail — last 1,000 events, exportable to CSV.
- Authorized user monitor displays total user count to guard against unauthorized additions (supports up to 1,000 users plus admin).
- Easy backup, restore, and replication across devices without any software installation.
- Output modes: timed relock (1–1,800 sec.), continually locked/unlocked, or toggle — globally or customized per user.
- Wrong-code lockout: 3–8 attempts trigger a 1–5 minute lockout; tamper alarm with adjustable vibration sensitivity and alarm timing (1–255 min).
- Anti-tailgating (auto-locks once the door closes) and door-forced-open/door-propped-open buzzer alerts.

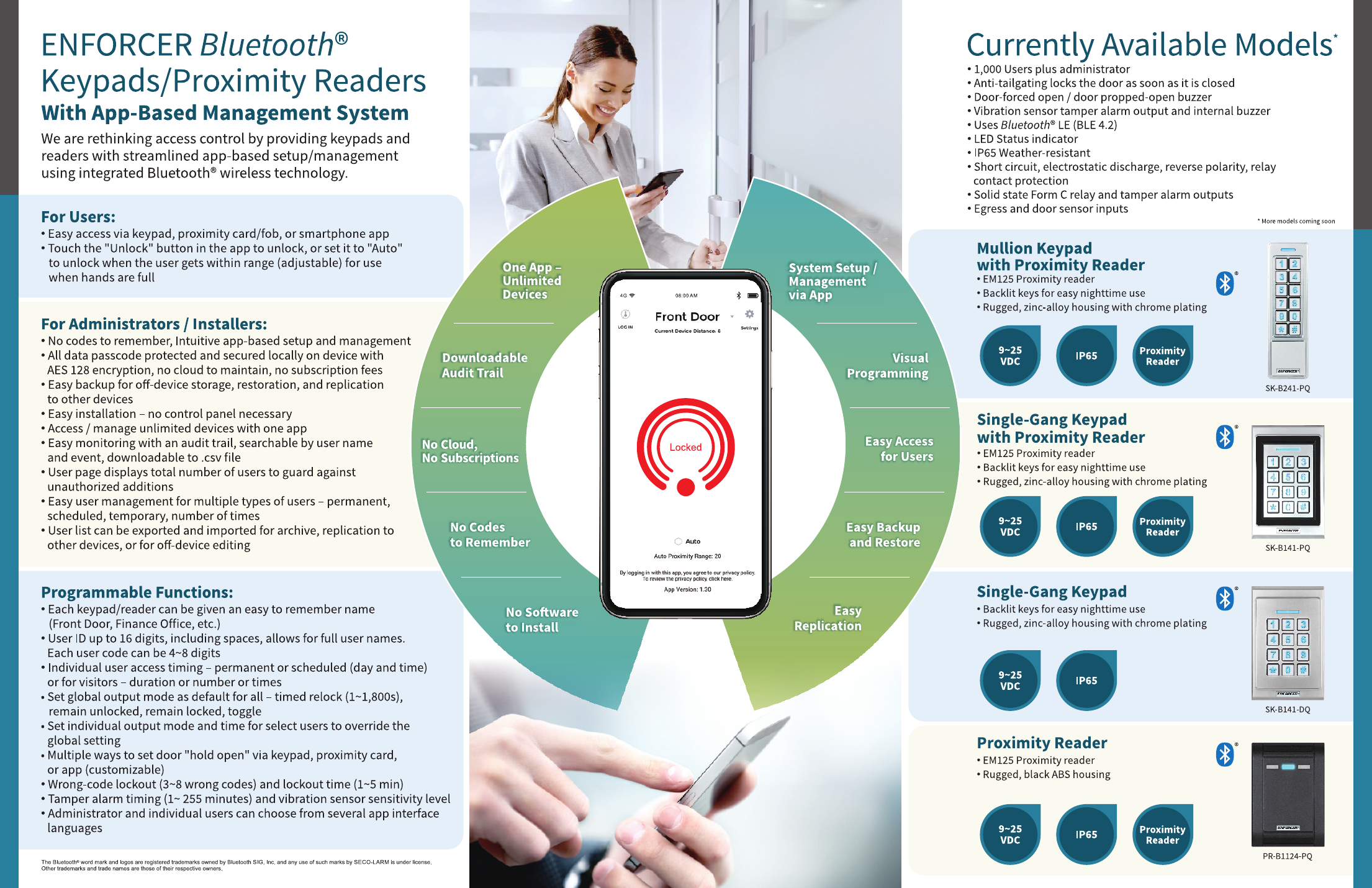

Available Models
| Model | Type | Details |
|---|---|---|
| SK-B241-PQ | Mullion keypad with proximity reader | EM125 proximity reader, backlit keys for nighttime use, rugged zinc-alloy housing with chrome plating |
| SK-B141-PQ | Single-gang keypad with proximity reader | EM125 proximity reader, backlit keys, rugged zinc-alloy housing with chrome plating |
| SK-B141-DQ | Single-gang keypad | Backlit keys, rugged zinc-alloy housing with chrome plating (no proximity reader) |
| PR-B1124-PQ | Proximity reader | EM125 proximity reader, rugged black ABS housing, no keypad |
General Specifications
- Operating voltage: 9~25 VDC.
- IP65 weather-resistant rating.
- Bluetooth Low Energy (BLE 4.2) with AES 128 encryption.
- 1,000 users plus administrator; LED status indicator.
- Vibration sensor tamper alarm with internal buzzer.
- Solid-state Form C relay and tamper alarm outputs; egress and door sensor inputs.
- Protection against short circuit, ESD, reverse polarity, and relay contact issues.
Warranty
SECO-LARM's policy is one of continual development; specifications and prices are subject to change without notice. SECO-LARM is not responsible for misprints. Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc. and used by SECO-LARM under license.
SECO-LARM U.S.A., Inc. — 16842 Millikan Avenue, Irvine, CA 92606 | (949) 261-2999 / (800) 662-0800 | www.seco-larm.com
