    SECO-LARM E-941S-600/LQ L-Bracket — Maglock Mounting Diagram

    September 08, 2026 1 min read

    Dimensional diagram for the SECO-LARM E-941S-600/LQ L-Bracket accessory, used for mounting 600-lb ENFORCER electromagnetic locks.

    💾 Download Original PDF
    Full text manual (for reference)

    Dimensional diagram for the SECO-LARM E-941S-600/LQ — an L-Bracket accessory used for mounting 600-lb ENFORCER electromagnetic locks. This is a single-page mechanical dimension drawing; the diagram below shows all mounting measurements.

    L-Bracket Diagram

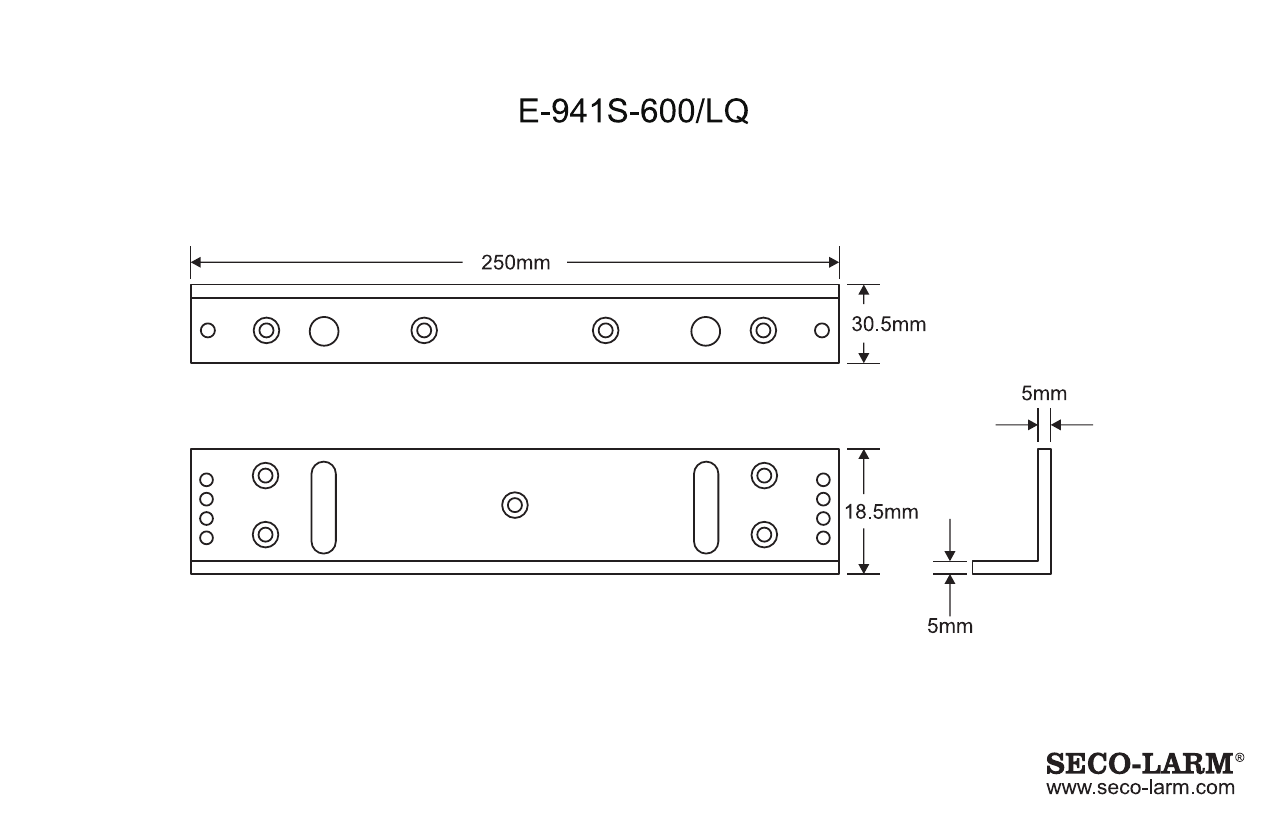

    SECO-LARM E-941S-600/LQ L-Bracket dimensional drawing showing top and side views with mounting hole placements
    L-Bracket dimensions: 250mm length, 30.5mm width, 18.5mm depth, 5mm flange thickness, with mounting hole placements

    Overview

    • Used with SECO-LARM ENFORCER 600-lb electromagnetic locks for mounting on doors where a standard face/surface-mount installation is not suitable
    • Precision-formed metal bracket, matches OEM ENFORCER lock accessory line
    • See the diagram above for exact hole spacing and overall dimensions before ordering or fabricating a mounting surface

    SECO-LARM® U.S.A., Inc. — 16842 Millikan Avenue, Irvine, CA 92606. Specifications subject to change without notice.
