OPTEX Photoelectric Beam Towers — AX-TW100 / AX-TW200 / AX-TW200M Specifications

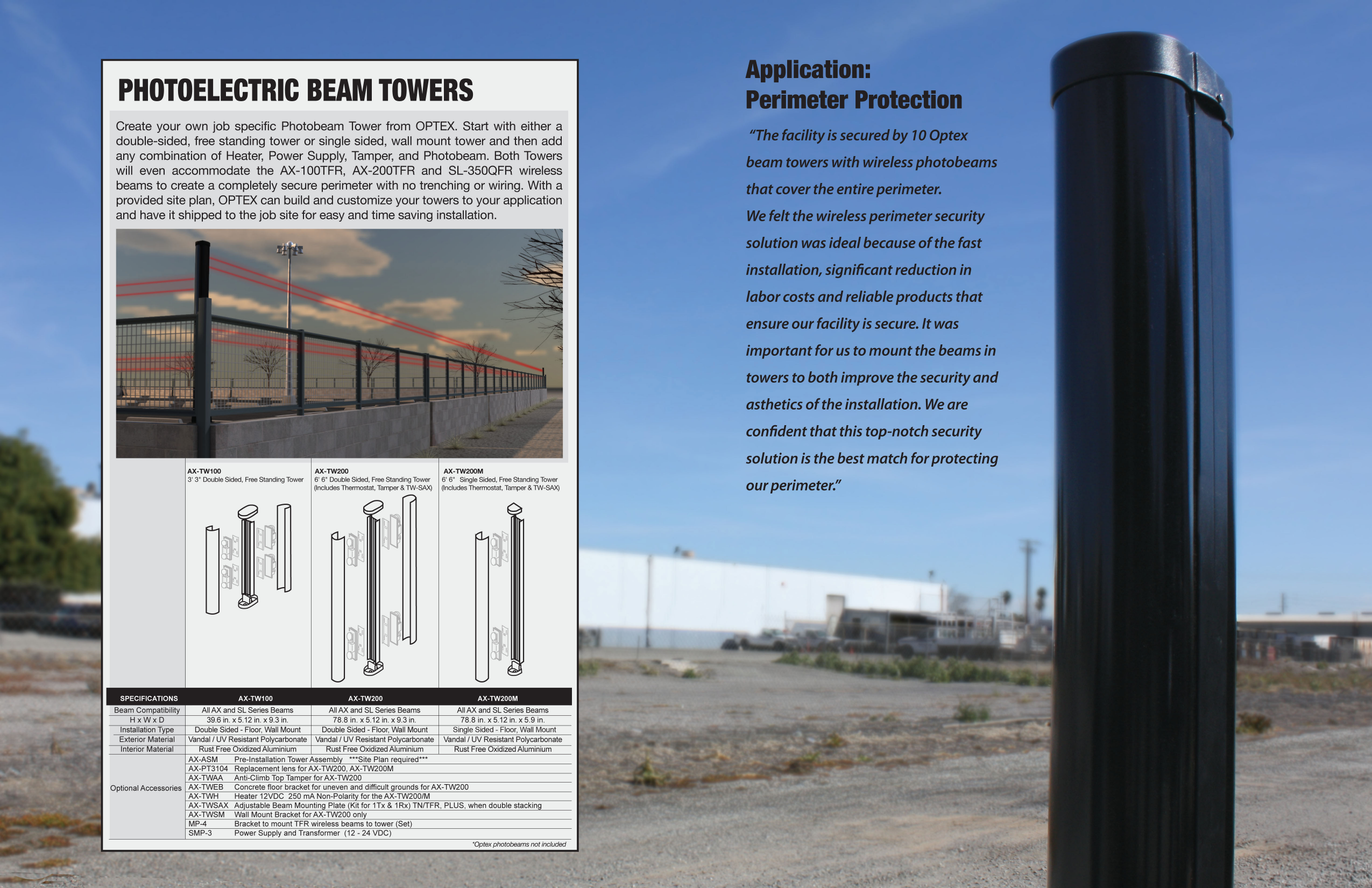

Product specification sheet for OPTEX Photoelectric Beam Towers (AX-TW100, AX-TW200, AX-TW200M).
Full text manual (for reference)
Product specification sheet for OPTEX Photoelectric Beam Towers, including the AX-TW100, AX-TW200, and AX-TW200M — job-specific towers that host up to four Optex photobeams (Tx/Rx pairs) plus Heater, Power Supply, and Tamper accessories to build a complete wireless perimeter security solution with no trenching or wiring required.
Overview
OPTEX Photobeam Towers let you build a custom perimeter security solution. Start with either a double-sided, free-standing tower (AX-TW100 or AX-TW200) or a single-sided, wall-mount tower (AX-TW200M), then add any combination of Heater, Power Supply, Tamper, and Photobeam. Both towers accommodate the AX-100TFR, AX-200TFR, and SL-350QFR wireless beams to create a completely secure perimeter with no trenching or wiring. With a provided site plan, OPTEX can build and customize towers to your application and ship them to the job site for easy, time-saving installation.
Tower Models
- AX-TW100 — 3' 3" double-sided, free-standing tower.
- AX-TW200 — 6' 6" double-sided, free-standing tower (includes Thermostat, Tamper & TW-SAX).
- AX-TW200M — 6' 6" single-sided, free-standing tower (includes Thermostat, Tamper & TW-SAX).
Specifications
| Specification | AX-TW100 | AX-TW200 | AX-TW200M |
|---|---|---|---|
| Beam Compatibility | All AX and SL Series Beams | All AX and SL Series Beams | All AX and SL Series Beams |
| H x W x D | 39.6" x 5.12" x 9.3" | 78.8" x 5.12" x 9.3" | 78.8" x 5.12" x 5.9" |
| Installation Type | Double-sided — floor, wall mount | Double-sided — floor, wall mount | Single-sided — floor, wall mount |
| Exterior Material | Vandal/UV-resistant polycarbonate | Vandal/UV-resistant polycarbonate | Vandal/UV-resistant polycarbonate |
| Interior Material | Rust-free oxidized aluminium | Rust-free oxidized aluminium | Rust-free oxidized aluminium |
Note: Optex photobeams are not included with the towers.
Optional Accessories
| Model | Description |
|---|---|
| AX-ASM | Pre-installation tower assembly (site plan required) |
| AX-PT3104 | Replacement lens for AX-TW200, AX-TW200M |
| AX-TWAA | Anti-climb top tamper for AX-TW200 |
| AX-TWEB | Concrete floor bracket for uneven/difficult grounds for AX-TW200 |
| AX-TWH | Heater, 12VDC, 250mA, non-polarity, for AX-TW200/M |
| AX-TWSAX | Adjustable beam mounting plate kit (1Tx & 1Rx), TN/TFR/PLUS, for double stacking |
| AX-TWSM | Wall mount bracket for AX-TW200 only |
| MP-4 | Bracket set to mount TFR wireless beams to tower |
| SMP-3 | Power supply and transformer (12–24 VDC) |
Application: Perimeter Protection
"The facility is secured by 10 Optex beam towers with wireless photobeams that cover the entire perimeter. We felt the wireless perimeter security solution was ideal because of the fast installation, significant reduction in labor costs, and reliable products that ensure our facility is secure. It was important for us to mount the beams in towers to both improve the security and aesthetics of the installation. We are confident that this top-notch security solution is the best match for protecting our perimeter."
