    OEM Systems Preference — Full Architectural Speaker Line Brochure & Specifications

    September 08, 2026 2 min read

    Full product line brochure and specifications for OEM Systems' Preference architectural loudspeakers.

    💾 Download Original PDF
    Full text manual (for reference)

    Preference® by OEM Systems Company is a reference-standard architectural loudspeaker line built on nearly 20 years of in-wall speaker manufacturing experience, designed for both critical music listening and home theater applications.

    Timbre-Matching Design Concept

    Every speaker in the Preference line is voice-matched (timbre-matched) across the full lineup. This ensures that sound moving between front, center, and surround channels in a home theater — or between rooms in a whole-house system — maintains a consistent tonal character, improving sound imaging and listening continuity.

    Key Technologies

    • Accurate Imaging Baffles (AIB) — a ribbed baffle design engineered to control diffraction and improve stereo imaging
    • Baffle-mounted EQ switches — mid/high-frequency adjustment built into the speaker baffle for room-specific tuning
    • Tetoron® soft-dome pivoting tweeters for smooth, extended high frequencies
    • Kevlar® woofers for tight, accurate bass with minimal coloration
    • Kapton voice coils for improved thermal handling and power capacity
    • Phase-plug technology to improve high-frequency dispersion
    • Clamp-ring mounting system and IR receiver knockouts for flexible custom installation
    • Removable, paintable grille frames to blend into any decor

    Product Line & Specifications

    The full spec sheet below lists every model in the Preference line with dimensions, cutout sizes, and matching pre-construction brackets.

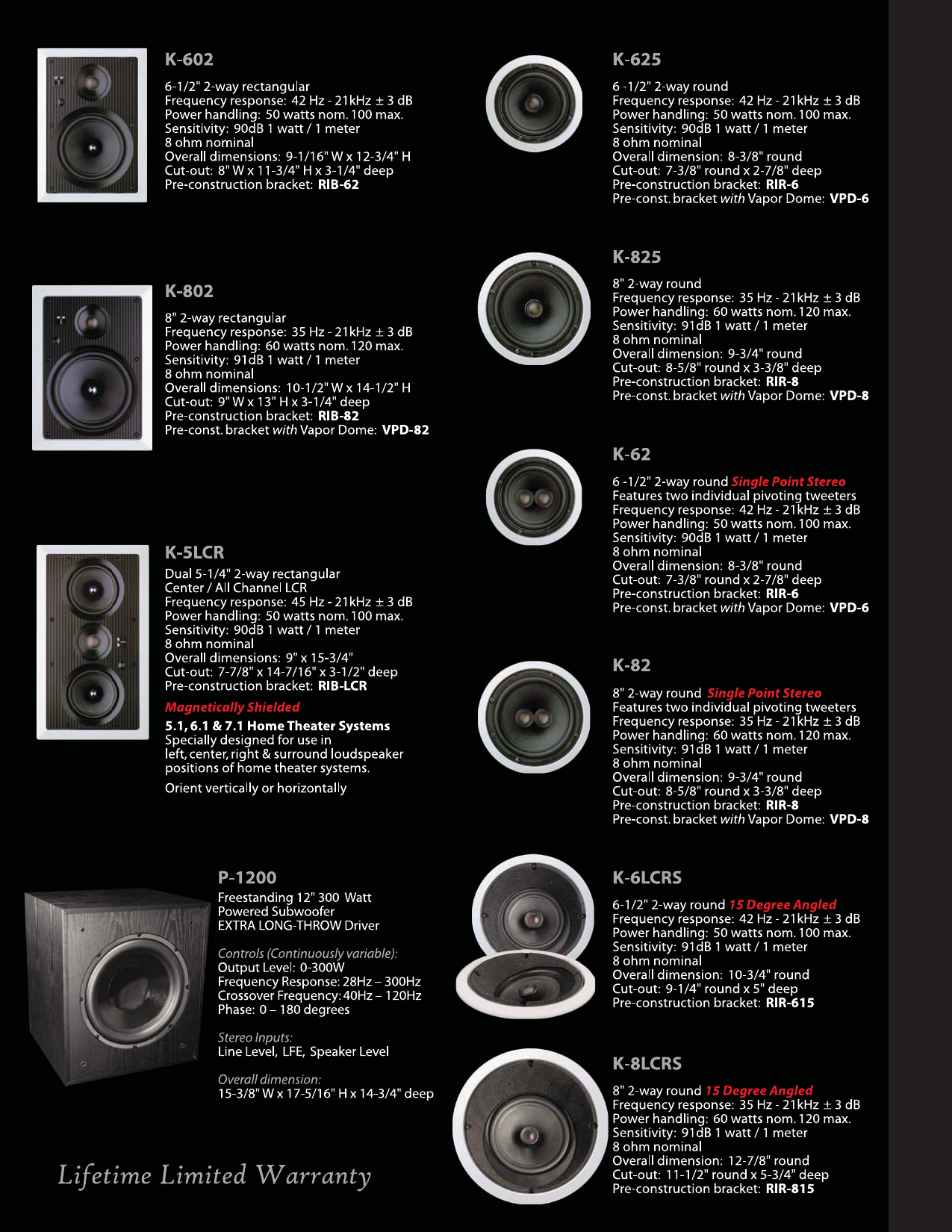

    Preference by OEM Systems full product line specification sheet listing models K-602, K-802, K-5LCR, K-625, K-825, K-62, K-82, K-6LCRS, K-8LCRS, and P-1200 with dimensions and specs
    Preference full product line specification sheet
    Model Description Power Sensitivity Overall Dim. Bracket
    K-602 6-1/2" 2-way rectangular 50W nom / 100W max 90dB 9-1/16" x 12-3/4" RIB-62
    K-802 8" 2-way rectangular 60W nom / 120W max 91dB 10-1/2" x 14-1/2" RIB-82 (or VPD-82 w/ vapor dome)
    K-5LCR Dual 5-1/4" 2-way rectangular LCR (magnetically shielded, for 5.1/6.1/7.1 HT systems, mounts vertically or horizontally) 50W nom / 100W max 90dB 9" x 15-3/4" RIB-LCR
    K-625 6-1/2" 2-way round 50W nom / 100W max 90dB 8-3/8" round RIR-6 (or VPD-6 w/ vapor dome)
    K-825 8" 2-way round 60W nom / 120W max 91dB 9-3/4" round RIR-8 (or VPD-8 w/ vapor dome)
    K-62 6-1/2" 2-way round "Single Point Stereo" (two individual pivoting tweeters) 50W nom / 100W max 90dB 8-3/8" round RIR-6 (or VPD-6 w/ vapor dome)
    K-82 8" 2-way round "Single Point Stereo" (two individual pivoting tweeters) 60W nom / 120W max 91dB 9-3/4" round RIR-8 (or VPD-8 w/ vapor dome)
    K-6LCRS 6-1/2" 2-way round, 15° angled 50W nom / 100W max 91dB 10-3/4" round RIR-615
    K-8LCRS 8" 2-way round, 15° angled 60W nom / 120W max 91dB 12-7/8" round RIR-815
    P-1200 Freestanding 12" extra long-throw powered subwoofer, 300W, variable crossover (40-120Hz) & phase (0-180°), line/LFE/speaker-level stereo inputs 0-300W — 15-3/8" x 17-5/16" x 14-3/4" deep —

    All models: 8 ohm nominal impedance. Lifetime limited warranty. ISO 9002 registered factory. CEDIA & RoHS compliant.
