    OEM Presence Valueline — Home Theater Loudspeaker Brochure

    September 08, 2026 1 min read

    Product brochure for OEM's Presence Valueline home theater loudspeakers — 15° angled in-ceiling models and an MTM-style center/all-channel speaker, with full specifications.

    💾 Download Original PDF
    Full text manual (for reference)

    Product overview for the Presence® Valueline series of home theater loudspeakers by OEM Systems Company — 15° angled in-ceiling models and an MTM-style center/all-channel speaker designed for cinematic sound imaging.

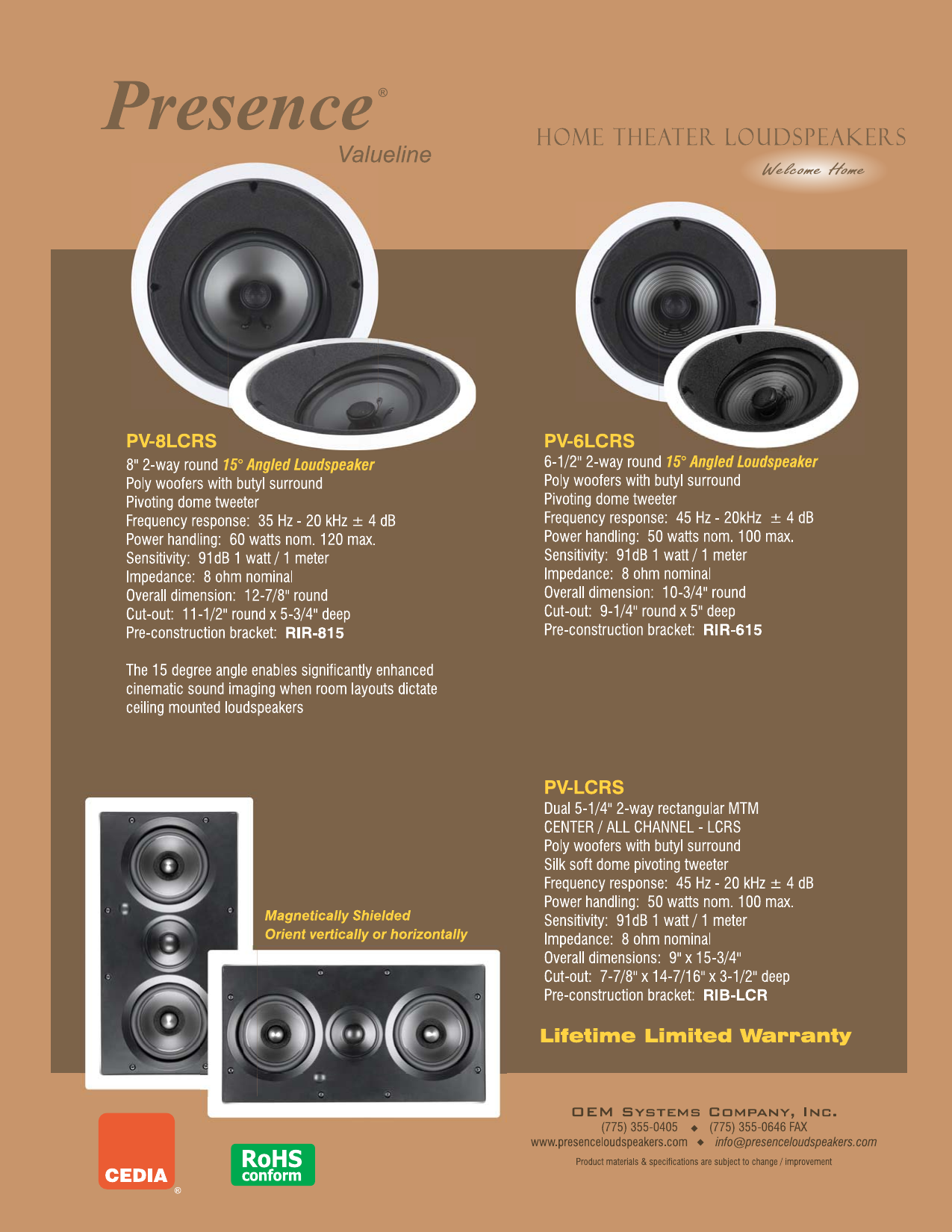

    Presence Valueline home theater loudspeaker brochure showing PV-8LCRS, PV-6LCRS, and PV-LCRS models with specifications
    Presence Valueline product line — PV-8LCRS, PV-6LCRS, and PV-LCRS

    Models & Specifications

    Model Type Freq. Response Power (nom/max) Overall / Cut-Out Bracket
    PV-8LCRS 8" 2-way round, 15° angled 35Hz-20kHz ±4dB 60 / 120 watts 12-7/8" round / 11-1/2" x 5-3/4" deep RIR-815
    PV-6LCRS 6-1/2" 2-way round, 15° angled 45Hz-20kHz ±4dB 50 / 100 watts 10-3/4" round / 9-1/4" x 5" deep RIR-615
    PV-LCRS Dual 5-1/4" 2-way rectangular MTM (center/all-channel), silk soft dome tweeter 45Hz-20kHz ±4dB 50 / 100 watts 9" x 15-3/4" / 7-7/8" x 14-7/16" x 3-1/2" deep RIB-LCR

    All models: poly woofers with butyl surround, pivoting dome tweeters, 91dB @ 1w/1m sensitivity, 8 ohms nominal impedance. The PV-LCRS is magnetically shielded and can be oriented vertically or horizontally.

    Features

    • 15° angled design (PV-8LCRS, PV-6LCRS) enhances cinematic sound imaging for ceiling-mounted applications
    • Lifetime Limited Warranty on all products
    • CEDIA and RoHS conformant

    Contact

    OEM Systems Company, Inc. — Phone: (775) 355-0405 | Fax: (775) 355-0646 | www.presenceloudspeakers.com
