Leviton EPCMX-OF3 — Side by Side Dual Mount Pedestal Dimensional Drawing

Technical dimensional drawing for the Leviton Evr-Green EPCMX-OF3 Side-by-Side Dual Mount Pedestal — the freestanding pedestal system used to mount two EV Series charging stations side by side.

Overview

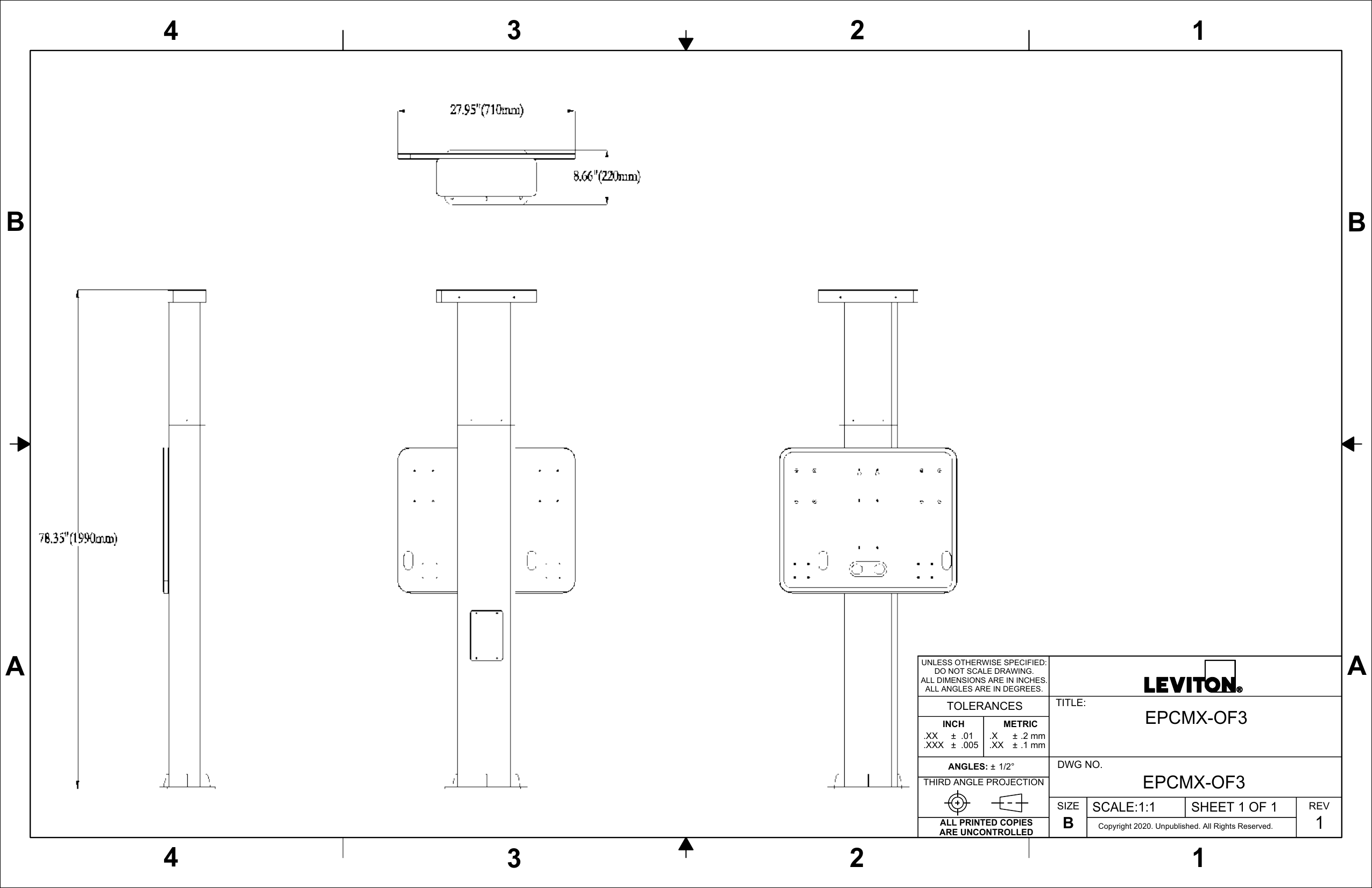

This engineering drawing sheet shows the full-envelope dimensions of the EPCMX-OF3 pedestal in multiple orthographic views (top, side, front) per third-angle projection convention, with overall height, width, and depth callouts for planning installation clearances.

Key Dimensions

• Overall height: 78.35 in. (1990 mm)
• Top mounting plate width: 27.95 in. (710 mm)
• Top mounting plate depth: 8.66 in. (220 mm)

Drawing Notes

• Unless otherwise specified: do not scale drawing.
• All dimensions are in inches; all angles are in degrees.
• Tolerances: .XX ± .01 in. (.X ± .2 mm), .XXX ± .005 in. (.XX ± .1 mm), angles ± 1/2°
• Third angle projection
• Drawing No.: EPCMX-OF3, Scale 1:1, Sheet 1 of 1

This pedestal is used with the Leviton EV Series Dual Mount Pedestal System (side-to-side, with retractable cord management) — see the full Dual Mount EV Series Pedestal System Specifications for compatible chargers, ordering info, and installation-related dimensions.

Manufacturer: Leviton Manufacturing Co., Inc., 201 N Service Rd, Melville, NY 11747 · Copyright 2020, unpublished, all rights reserved.
