    Leviton EHOOK — EV Pedestal Wall Hook Dimensional Drawing

    September 08, 2026 2 min read

    Dimensional drawing for the Leviton EHOOK wall-mounted cable hook accessory, used with Leviton EV Series charging pedestals to organize the charging cable.

    💾 Download Original PDF
    Full text manual (for reference)

    Technical dimensional drawing for the Leviton EHOOK — a wall-mounted cable hook accessory for Leviton EV Series charging pedestals, used to hold the charging cable when not in use.

    Overview

    The EHOOK is a curved, J-shaped mounting hook designed to attach to a wall or EV pedestal to cradle and organize the charging cable of Leviton EV Series Level 2 charging stations. It ships as part of a full pedestal kit (see the Leviton EV Series Pedestals & Accessories line) or can be ordered as a standalone accessory.

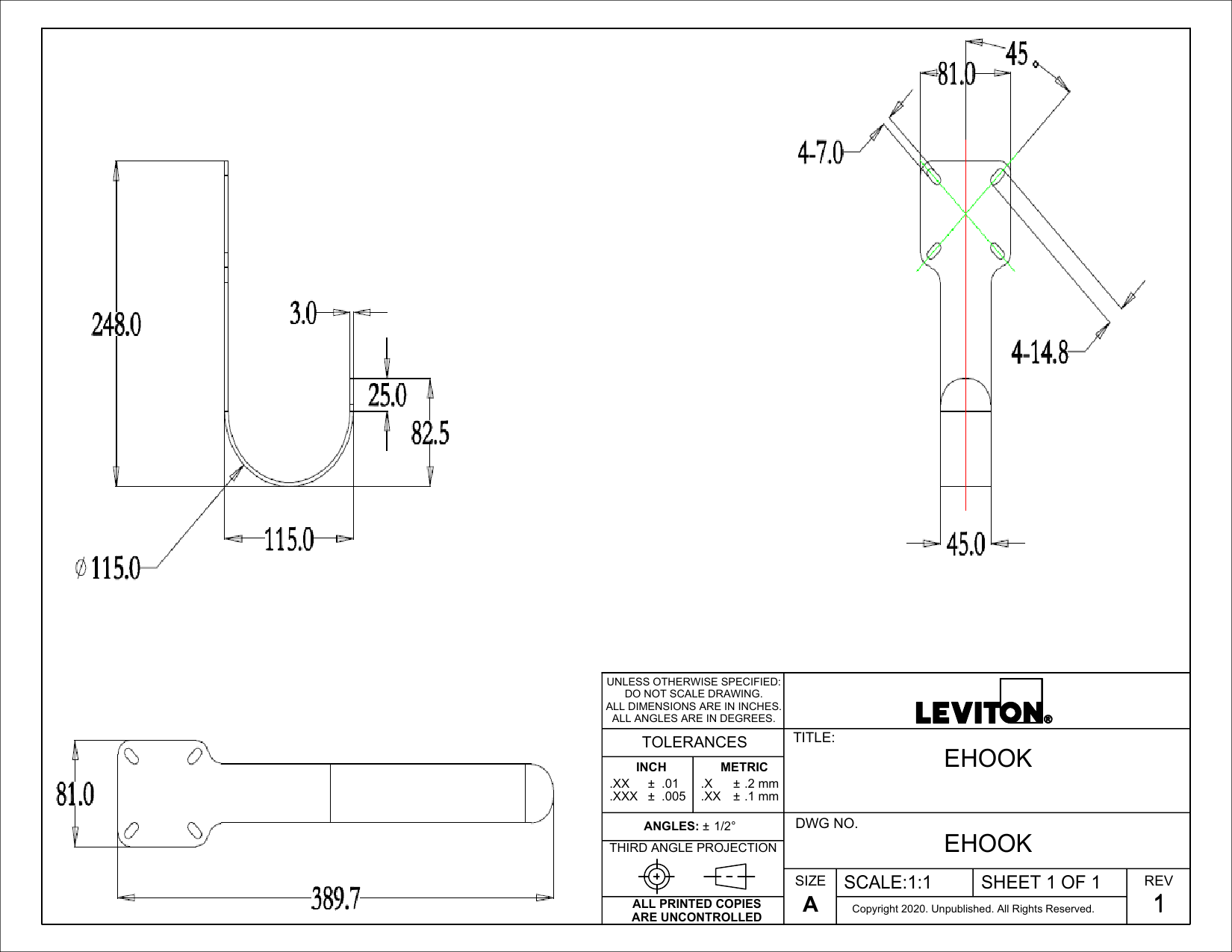

    Leviton EHOOK dimensional drawing
    Dimensional drawing (scale 1:1) showing the mounting plate, hook profile, and hole pattern.

    Key Dimensions

    • Overall hook height: 248.0 mm
    • Total arm length: 389.7 mm
    • Mounting plate footprint: 81.0 mm × 115.0 mm
    • Plate thickness: 3.0 mm
    • Arm angle from mounting plate: 45°
    • 4 mounting holes (slotted), 7.0 mm diameter, 14.8 mm spacing pattern

    Installation Notes

    Mount using 4 fasteners through the slotted holes in the mounting flange. The hook arm projects outward at 45° and curves into a rounded J-shape to safely cradle the charging cable without kinking or excessive strain.

    Compatibility

    Designed for use with Leviton EV Series Level 2 charging stations (EV320, EV480, EV800, EV32W, EV48W, EV80W) and the Leviton EV Series Pedestal accessory line (single-mount EPED1, dual-mount EPED2/EPCM1-OF3).

    Notes

    Third angle projection drawing, Size A, Sheet 1 of 1, Rev 1. © 2020 Leviton — unpublished, all rights reserved. Do not scale drawing; all dimensions in inches with metric equivalents shown.
