    Lee Electric LE5S16VAC Electric Door Strike — Dimensional Specifications

    September 08, 2026 1 min read

    Dimensional drawing and specifications for the Lee Electric LE5S16VAC electric door strike/latch mechanism.

    💾 Download Original PDF
    Full text manual (for reference)

    Dimensional specification drawing for the Lee Electric LE5S16VAC electric door strike/latch mechanism.

    Overview

    This is a manufacturer dimensional drawing showing the exact mounting and body dimensions of the LE5S16VAC electric door strike, used for planning door frame preparation and mortise cutouts. This model has a slightly different keeper/latch profile and body thickness than the standard LE516VAC.

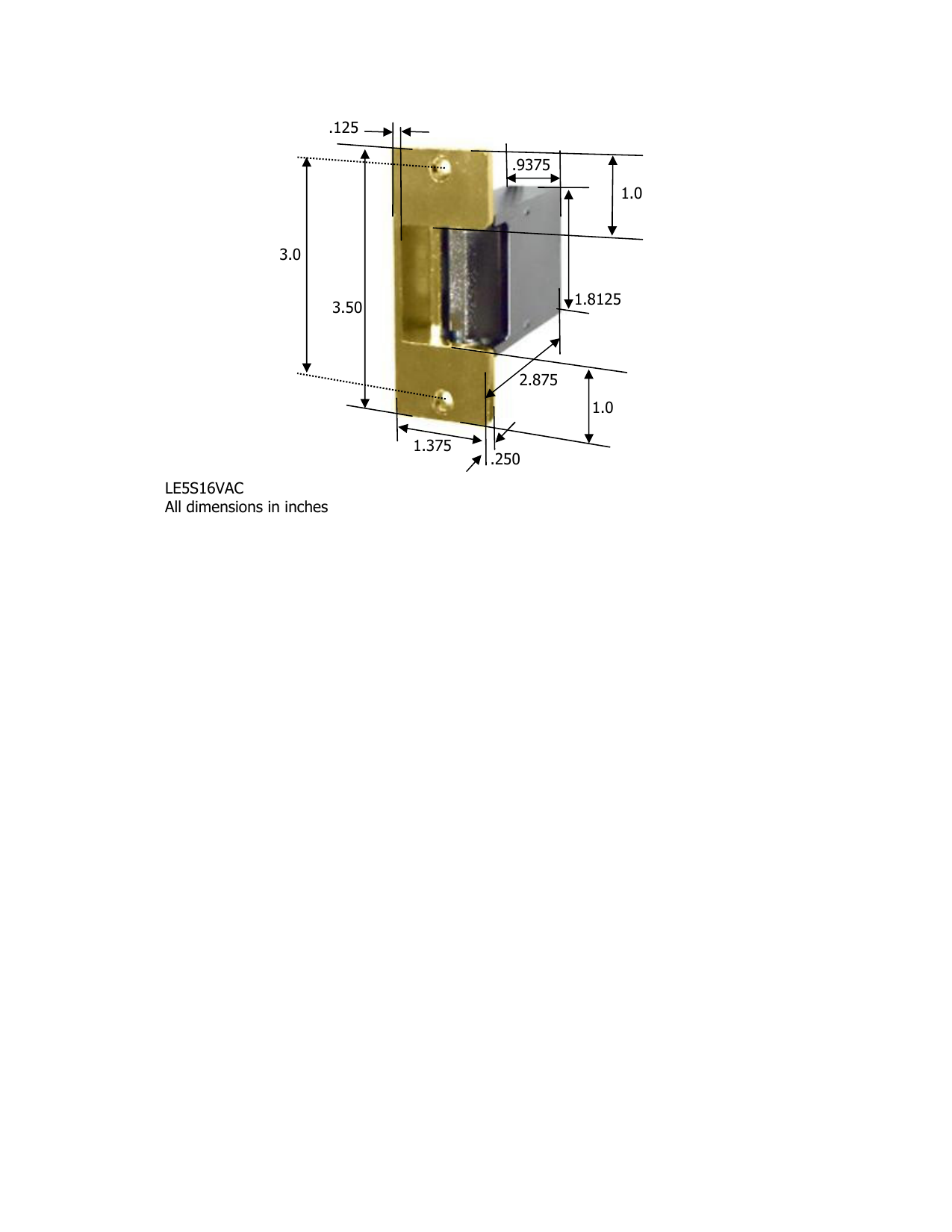

    LE5S16VAC electric door strike dimensional drawing showing gold faceplate, mounting hole locations, and internal solenoid coil dimensions
    LE5S16VAC dimensional drawing — all dimensions in inches

    Key Dimensions (inches)

    • Left edge offset from top: 0.125"
    • Overall mounting span (top hole to bottom hole): 3.0" / 3.50" reference lines
    • Upper width segment (near top): 0.9375"
    • Vertical measurement, top edge to coil top: 1.0"
    • Solenoid/coil housing depth: 1.8125"
    • Diagonal (coil base to faceplate corner): 2.875"
    • Lower-right vertical measurement: 1.0"
    • Bottom width segment: 1.375"
    • Bottom edge thickness: 0.250"

    Gold/brass-finish faceplate with round mounting holes at top and bottom and an open rectangular cutout revealing the solenoid coil mounted in a light-gray metal housing bracket.

    All specifications are subject to manufacturer revision without notice.
