    Lee Electric LE516VAC Electric Door Strike — Dimensional Specifications

    September 08, 2026 1 min read

    Dimensional drawing and specifications for the Lee Electric LE516VAC electric door strike/latch mechanism.

    💾 Download Original PDF
    Full text manual (for reference)

    Dimensional specification drawing for the Lee Electric LE516VAC electric door strike/latch mechanism.

    Overview

    This is a manufacturer dimensional drawing showing the exact mounting and body dimensions of the LE516VAC electric door strike, used for planning door frame preparation and mortise cutouts.

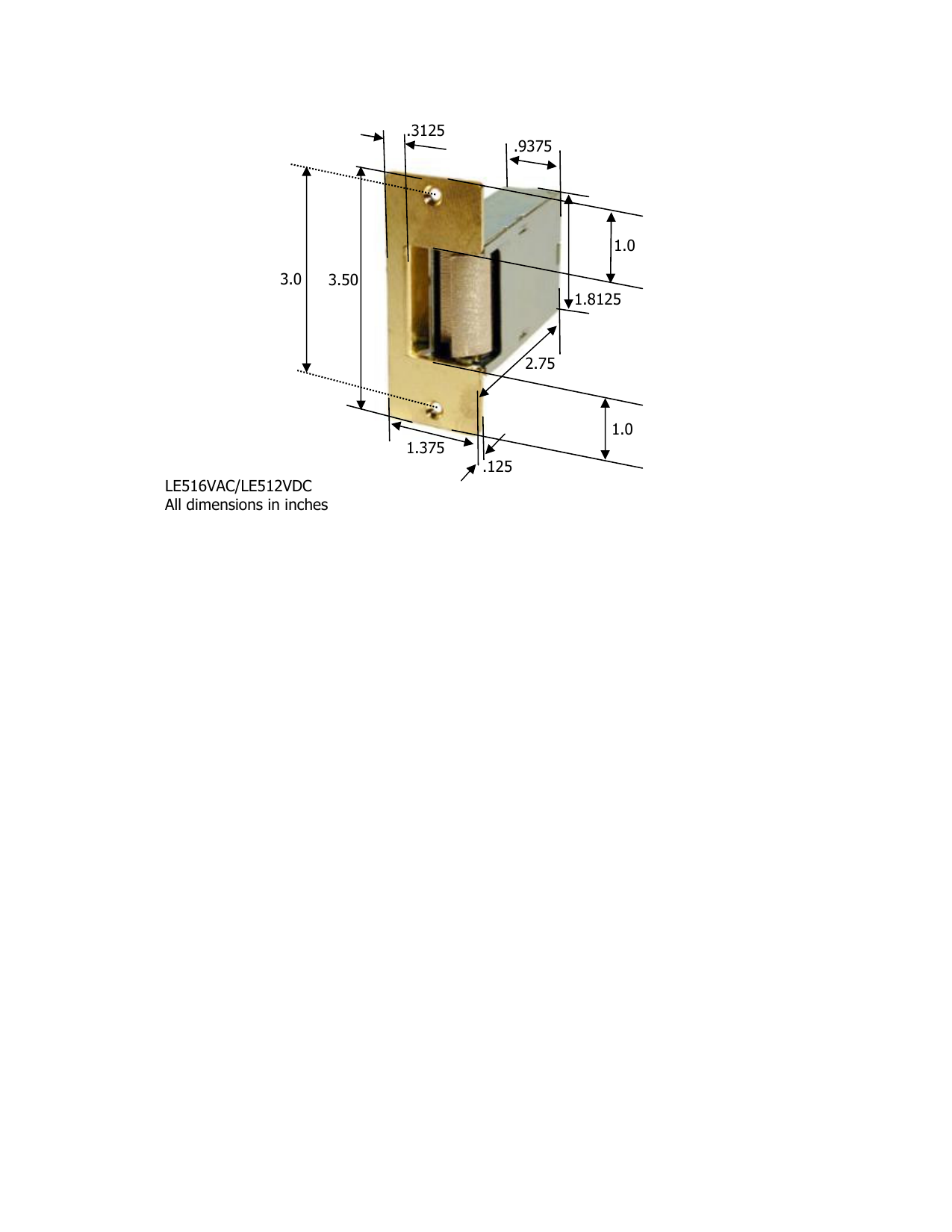

    LE516VAC electric door strike dimensional drawing showing brass faceplate, mounting screw locations, and internal solenoid coil dimensions
    LE516VAC dimensional drawing — all dimensions in inches

    Key Dimensions (inches)

    • Overall mounting span (top screw to bottom screw): 3.0" / 3.50" reference lines
    • Top edge width segment: 0.3125"
    • Upper-right width segment: 0.9375"
    • Vertical measurement, top edge to coil top: 1.0"
    • Solenoid/coil depth: 1.8125"
    • Diagonal (coil base to faceplate edge): 2.75"
    • Lower-right vertical measurement: 1.0"
    • Bottom width segment: 1.375"
    • Faceplate edge thickness: 0.125"

    Brass-finish faceplate with two mounting screw holes (top and bottom) and an internal keeper/latch cutout revealing the cylindrical solenoid coil assembly.

    All specifications are subject to manufacturer revision without notice.
