    GreenField Direct Clamp-On Actuator — Quick Start Installation Guide

    September 08, 2026 2 min read

    Quick start guide for the GreenField Direct Clamp-On Actuator, a motorized valve actuator that clamps onto an existing copper-pipe manual ball valve for remote control.

    💾 Download Original PDF
    Full text manual (for reference)

    Quick start guide for the GreenField Direct Clamp-On Actuator — an electric motorized actuator that clamps onto an existing manual ball valve (copper piping only) to enable remote open/close control.

    Important Safety Note

    This product is only intended for installation on copper piping. Do NOT install on pipe material other than copper.

    What's Included

    Part Name Qty
    A 3/4" Adapter Sleeve 1
    B Upper Mounting Bracket 1
    C Lower Mounting Bracket 1
    D Actuator Handle 1
    E Manual Handle Set Screw 1
    F Electric Actuator 1
    G Horizontal Adjustment Bracket 1
    H Vertical Adjustment Bracket 1
    I Cotter Pin and Key 1
    J 3/8" Bolts 12
    K 7/16" Nuts 15

    Tools Needed

    • 7/16" Crescent Wrench
    • 3/8" Crescent Wrench
    • 5/32" Allen Wrench

    Pre-Installation Checklist

    • Determine the direction of open/close for the installed manual ball valve.
    • Determine which side of the manual ball valve has at least 6 inches of clear space along the pipe from the solder connection to the pipe.
    • Ensure the pipe and valve are at least 2 inches from any obstruction, such as a wall.
    • Ensure a power source is within 6 ft. of the Clamp-On Actuator.

    If the 6" of clear space is on the non-handle side of the manual ball valve, mount the actuator accordingly; if it's on the handle side, make sure clearance around the actuator's handle distance clears the manual ball valve handle.

    Assembly Overview

    The full illustrated exploded-parts diagram and 5-step assembly sequence (including alignment check) are shown below. The 3/4" Adapter Sleeve (Part A) is only used when installing on 3/4" pipe.

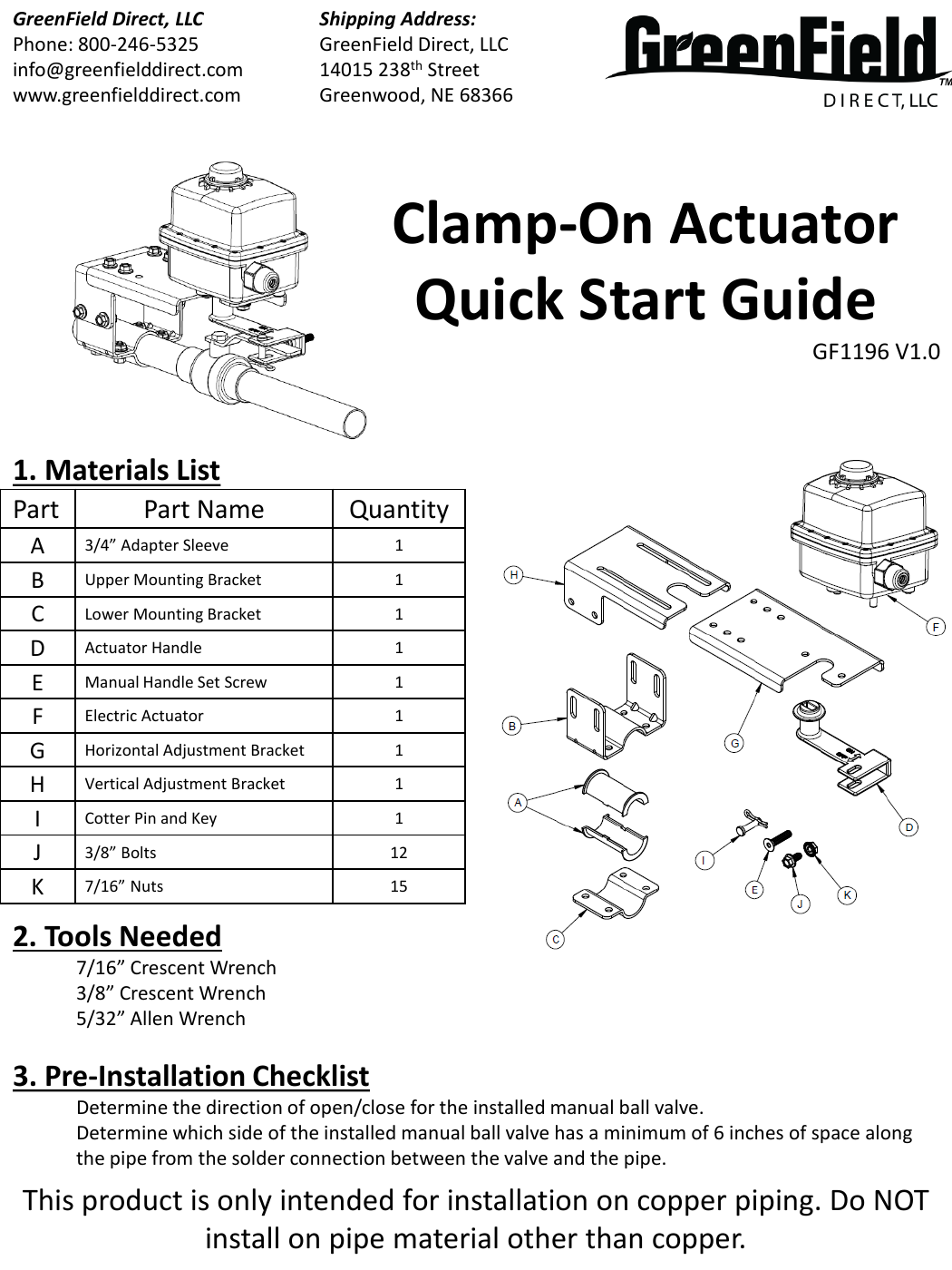

    GreenField Direct Clamp-On Actuator exploded parts diagram showing hero product illustration and labeled components A through K
    Product overview and exploded parts diagram (Parts A–K)

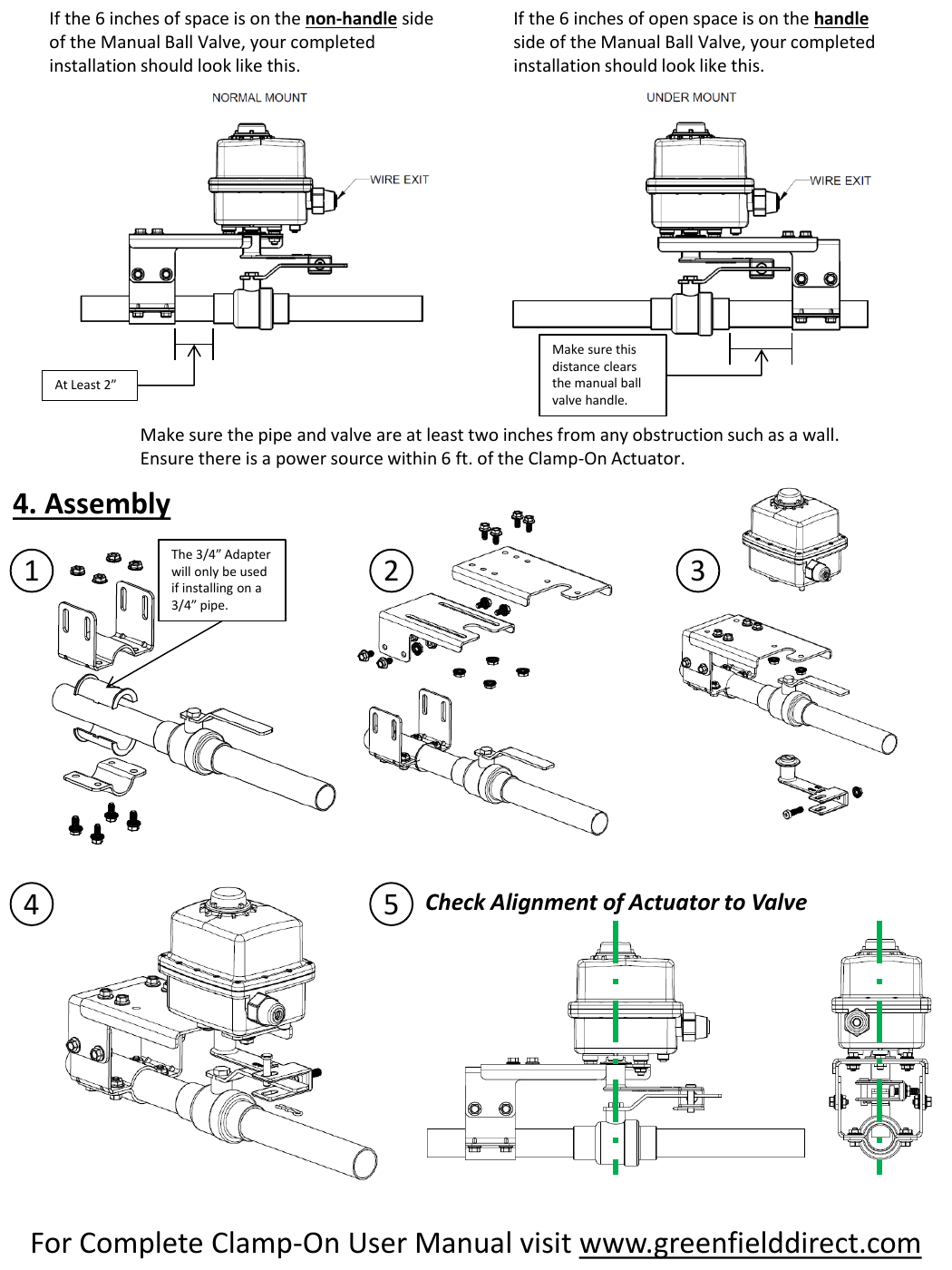

    GreenField Direct Clamp-On Actuator 5-step assembly diagram with mounting orientation comparison and alignment check
    5-step assembly sequence, mounting orientation options, and actuator-to-valve alignment check

    For the complete Clamp-On Actuator user manual, visit www.greenfielddirect.com.

    Manufacturer: GreenField Direct, LLC — Phone: 800-246-5325, info@greenfielddirect.com
