    FortrezZ WV-01 Valve Actuator — Engineering Drawing & Specs

    September 08, 2026 1 min read

    Engineering drawing and specifications for the FortrezZ WV-01 series motorized valve actuator, covering 1/2" through 1-1/4" valve sizes.

    💾 Download Original PDF
    Full text manual (for reference)

    Engineering drawing and specifications for the FortrezZ WV-01 series motorized valve actuator — a Z-Wave controllable ball valve for automated water shut-off systems.

    Overview

    The WV-01 is an automated ball valve assembly consisting of a motorized actuator mounted atop a full-port brass ball valve. It's used for whole-home or zone water shut-off in leak detection and smart-home water control systems.

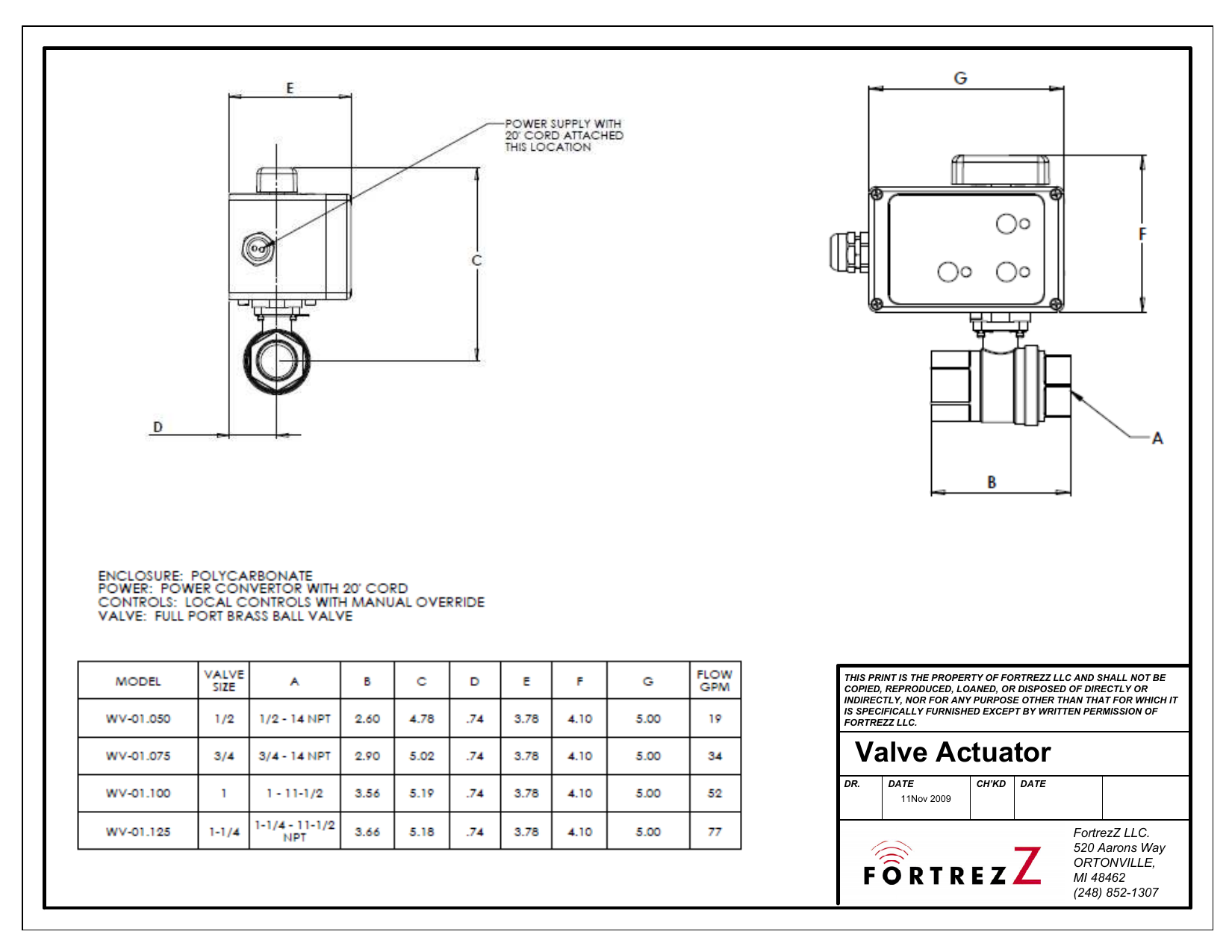

    FortrezZ WV-01 Valve Actuator engineering drawing showing front, top, and valve body views with dimensions
    Engineering drawing: WV-01 valve actuator assembly — front view, top view, and valve body with dimension callouts (A–G).

    Key Features

    • Enclosure: Polycarbonate housing
    • Power: Power converter with 20 ft cord attached at the actuator
    • Controls: Local controls with manual override
    • Valve type: Full-port brass ball valve

    Model Variants & Specifications

    Model Valve Size Pipe Thread Flow Rate (GPM)
    WV-01.050 1/2" 1/2-14 NPT 19
    WV-01.075 3/4" 3/4-14 NPT 34
    WV-01.100 1" 1-11-1/2 NPT 52
    WV-01.125 1-1/4" 1-1/4-11-1/2 NPT 77

    All four models share the same actuator enclosure dimensions (approx. 3.78" x 4.10" x 5.00" for the top-view footprint, per the drawing), with body length and height varying by valve size (see dimensions B and C in the drawing above).

    Manufacturer

    FortrezZ LLC, 520 Aarons Way, Ortonville, MI 48462 — (248) 852-1307.
