    Chief RXF2 — Medium Rail Mount Dimensional Print

    September 08, 2026 2 min read

    Customer dimensional print for the Chief Manufacturing RXF2 Medium Rail Mount interface plate for large flat-panel display mounts.

    💾 Download Original PDF
    Full text manual (for reference)

    Customer dimensional print for the Chief Manufacturing RXF2 Medium Rail Mount — a wall/rail interface plate for large flat-panel display mounts, showing hole spacing, wall plate opening dimensions, and kickstand tilt feature.

    Overview

    The RXF2 is a medium rail mount interface used with Chief's large flat panel mounting systems. It provides multiple mounting hole spacing options (16", 24", and 32" centers) to fit a range of stud/rail patterns, plus centerline orientation and diamond alignment notches for accurate installation.

    Dimensional Diagram

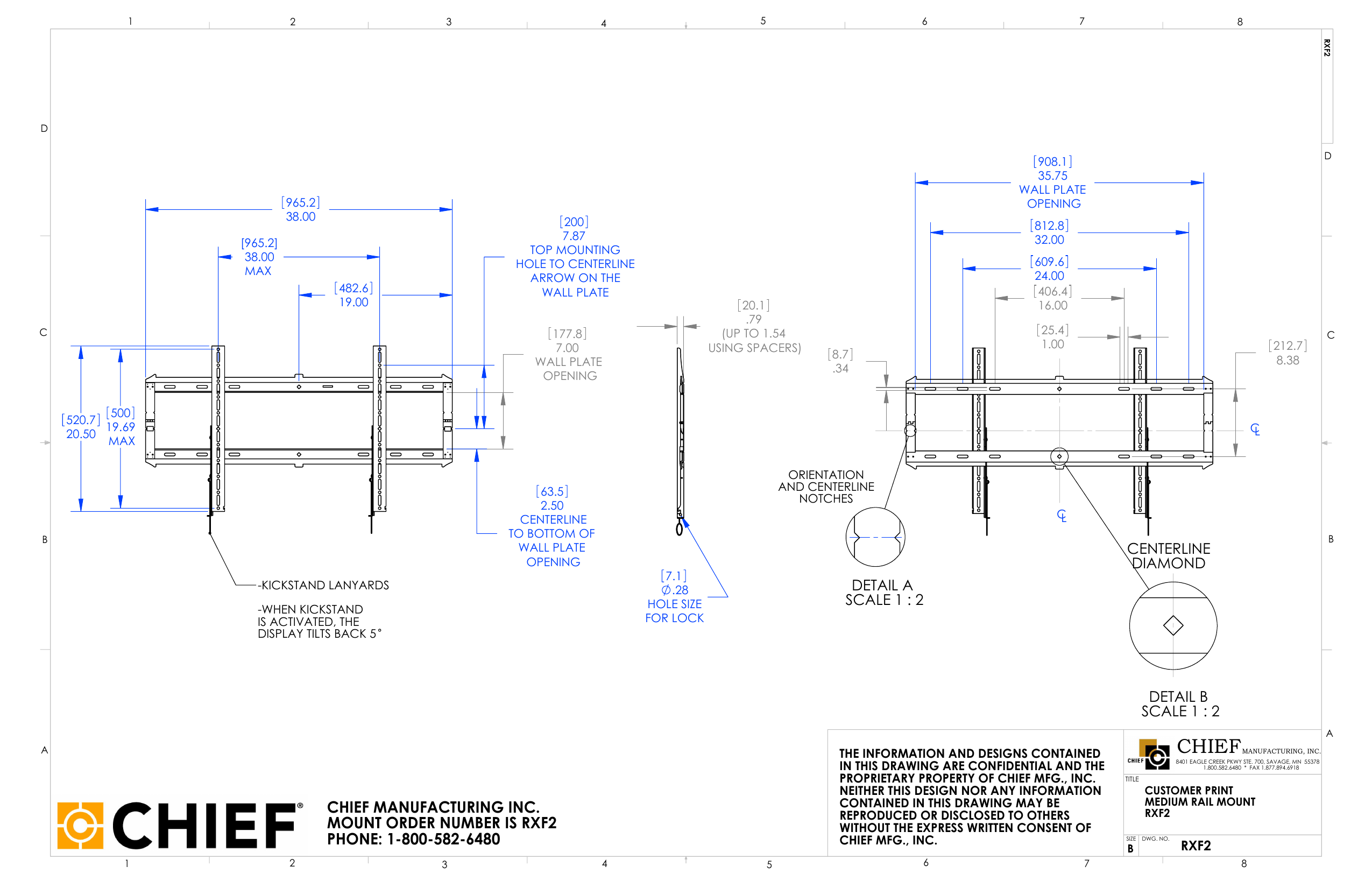

    Chief RXF2 Medium Rail Mount dimensional drawing
    Customer print showing overall dimensions, wall plate opening, mounting hole spacing, and kickstand lanyard detail for the RXF2.

    Key Dimensions

    Dimension Value
    Overall Width (max) 38.00" (965.2 mm)
    Overall Height (max) 20.50" (520.7 mm)
    Wall Plate Opening 35.75" x 7.00" (908.1 mm x 177.8 mm)
    Mounting Hole Spacing (centers) 16", 24", or 32" (406.4 / 609.6 / 812.8 mm)
    Top Mounting Hole to Centerline 7.87" (200 mm)
    Wall Plate Opening Centerline to Bottom 2.50" (63.5 mm)
    Lock Hole Size 0.28" (7.1 mm)
    Spacer Clearance Up to 1.54" (39.1 mm) using spacers, standard 0.79" (20.1 mm)

    Features

    • Kickstand lanyards: when activated, tilts the display back 5°
    • Orientation and centerline notches for accurate alignment
    • Centerline diamond alignment mark

    Ordering

    Mount order number: RXF2. Contact Chief Manufacturing at 1-800-582-6480 to order.

    Manufacturer

    Chief Manufacturing, Inc. — 8401 Eagle Creek Pkwy Ste. 700, Savage, MN 55378. Phone: 1-800-582-6480, Fax: 1-877-894-6918.

    Note: This drawing is provided by Chief Manufacturing as a customer print. The design and dimensional information are proprietary to Chief Mfg., Inc.
