    Chief RLF2 Medium Rail Mount — Engineering Drawing

    September 08, 2026 2 min read

    Customer print / dimensional drawing for the Chief RLF2 Medium Rail Mount, a tilting wall mount rail system with kickstand tilt feature.

    💾 Download Original PDF
    Full text manual (for reference)

    Customer print / dimensional drawing for the Chief RLF2 Medium Rail Mount — a tilting wall mount rail system with a kickstand tilt feature.

    Overview

    The RLF2 is a Chief Manufacturing medium rail mount for wall-mounting displays, featuring a kickstand mechanism: when activated, the kickstand tilts the display back 5°. Mount order number is RLF2.

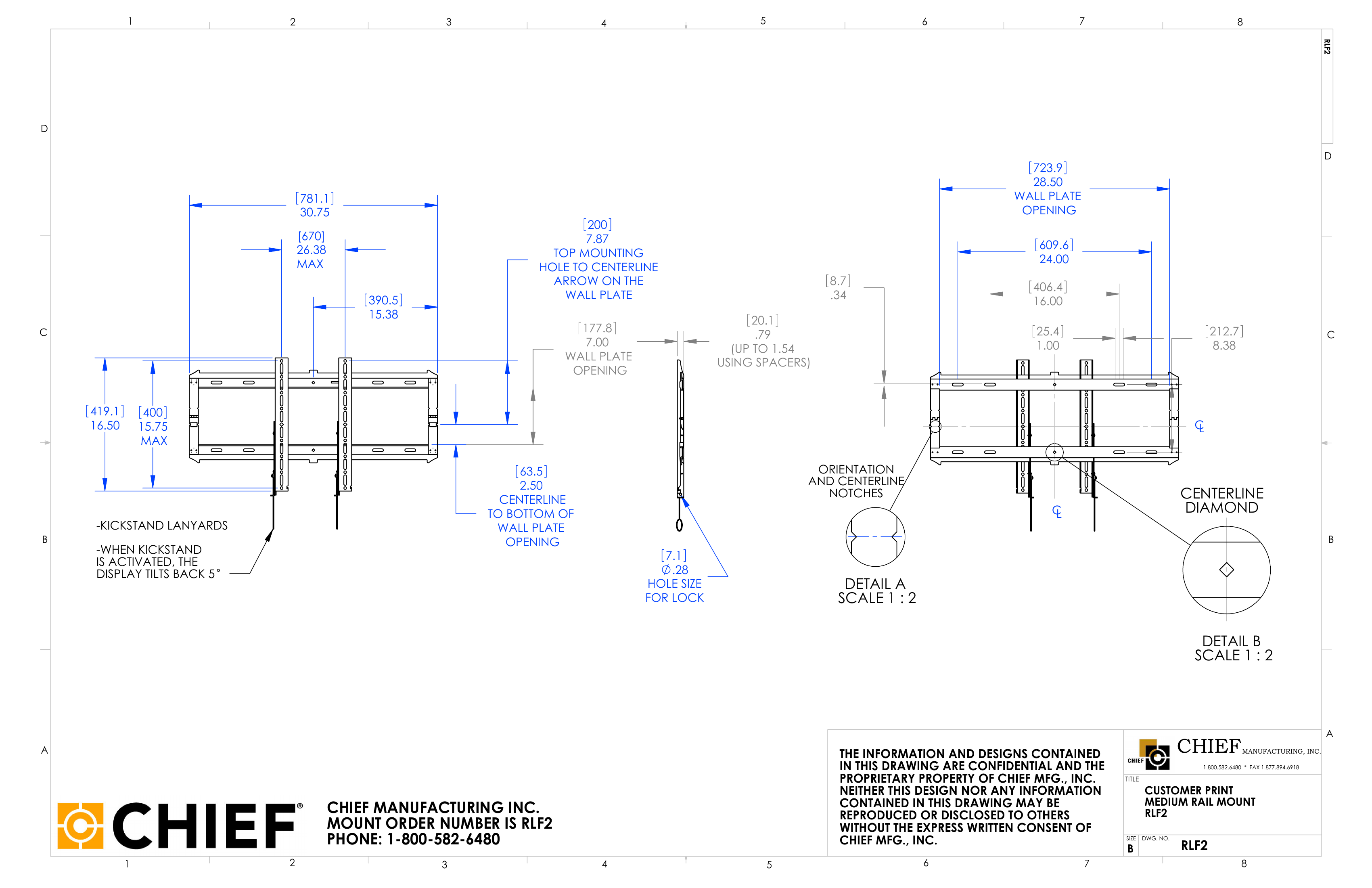

    Chief RLF2 medium rail mount dimensional drawing showing wall plate opening, mounting hole spacing, and kickstand tilt detail
    RLF2 customer print — full dimensional drawing

    Key Dimensions

    • Overall width: 781.1mm [30.75"]; max width: 670mm [26.38"]
    • Overall height: 419.1mm [16.50"]; max height: 400mm [15.75"]
    • Wall plate opening: 177.8mm [7.00"] wide x 20.1mm [.79"] deep (up to 1.54" using spacers)
    • Top mounting hole to centerline arrow on the wall plate: 200mm [7.87"]
    • Centerline to bottom of wall plate opening: 63.5mm [2.50"]
    • Lock hole size: 7.1mm [Ø.28"]
    • Rail-side wall plate opening: 723.9mm [28.50"]; centerline: 609.6mm [24.00"]
    • Additional rail spacing references: 406.4mm [16.00"], 212.7mm [8.38"], 25.4mm [1.00"], 8.7mm [.34"]

    Orientation and centerline notches (Detail A) and a centerline diamond marker (Detail B) are provided on the wall plate for correct alignment during installation, both shown at scale 1:2 in the drawing.

    Kickstand lanyards: when the kickstand is activated, the display tilts back 5°.

    Manufacturer

    Chief Manufacturing, Inc. · Phone: 1-800-582-6480 · Fax: 1-877-894-6918

    The information and designs contained in this drawing are confidential and the proprietary property of Chief Mfg., Inc. Neither this design nor any information contained in this drawing may be reproduced or disclosed to others without the express written consent of Chief Mfg., Inc.
