    Channel Vision AB-904 4-Source 4-Zone A-BUS Kit — Product Specifications

    September 08, 2026 1 min read

    Product specification sheet for the Channel Vision AB-904, a 4-source 4-zone A-BUS whole-house audio kit.

    💾 Download Original PDF
    Full text manual (for reference)

    Product specification sheet for the Channel Vision AB-904 4-Source, 4-Zone A-BUS whole-house audio kit.

    Overview

    The Channel Vision AB-904 is a 4-Source, 4-Room A-BUS Kit — an excellent whole-house music solution. It allows up to four different audio sources to be played in four different zones simultaneously, ideal for families with a variety of listening interests. Control is simple thanks to the P-1044's source-specific IR repeating, which allows independent control of identical source components. The included A0505 remote lets you adjust the AB-134 volume level without leaving your favorite chair.

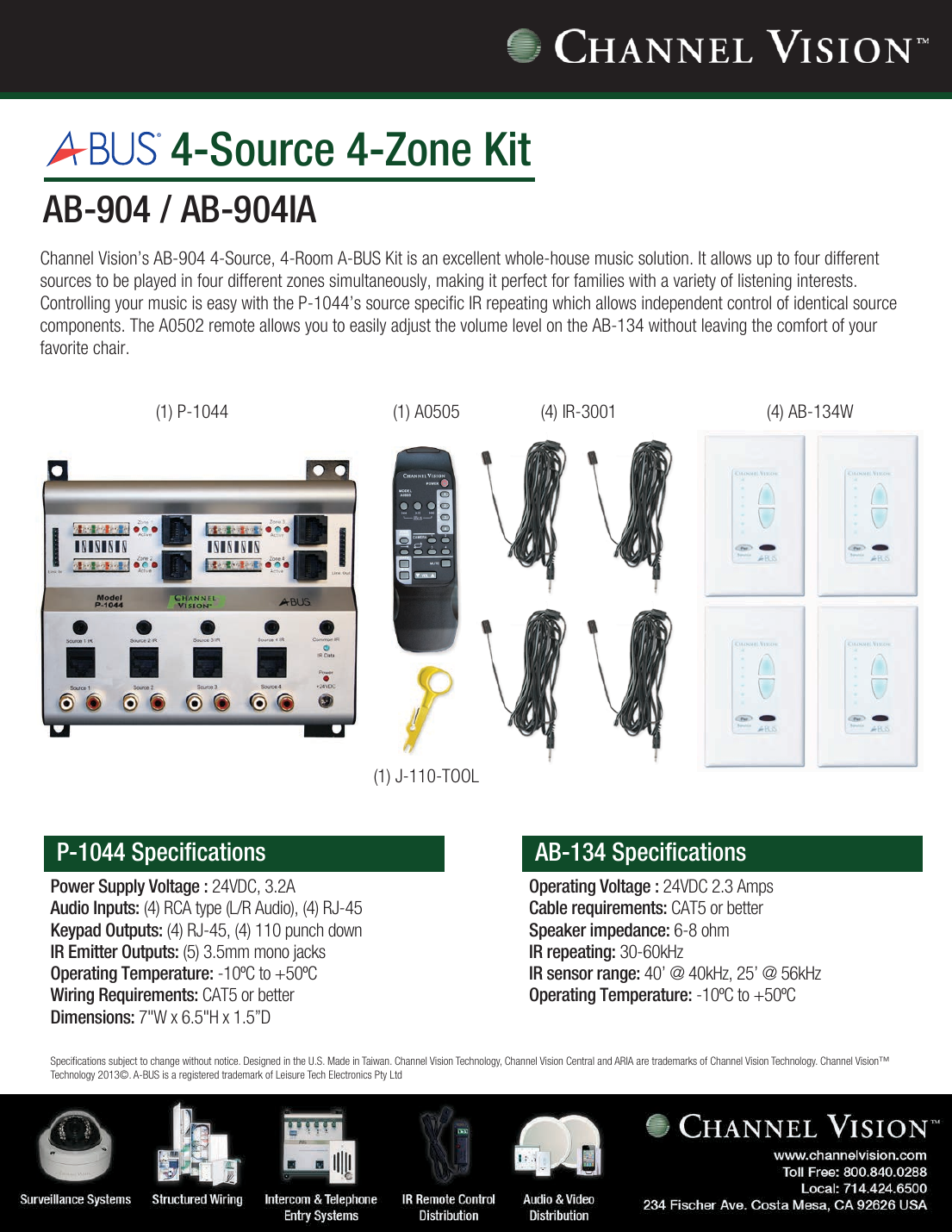

    Channel Vision AB-904 kit contents: P-1044 controller, A0505 remote, IR-3001 emitters, AB-134W keypads, and J-110 tool
    AB-904 kit contents

    What's Included

    • (1) P-1044 controller
    • (1) A0505 remote
    • (4) IR-3001 IR emitters
    • (4) AB-134W amplified keypads
    • (1) J-110 punch-down tool

    P-1044 Specifications

    Spec Value
    Power Supply Voltage 24VDC, 3.2A
    Audio Inputs (4) RCA type (L/R Audio), (4) RJ-45
    Keypad Outputs (4) RJ-45, (4) 110 punch down
    IR Emitter Outputs (5) 3.5mm mono jacks
    Operating Temperature -10°C to +50°C
    Wiring Requirements CAT5 or better
    Dimensions 7"W x 6.5"H x 1.5"D

    AB-134 Keypad Specifications

    Spec Value
    Operating Voltage 24VDC, 2.3 Amps
    Cable Requirements CAT5 or better
    Speaker Impedance 6–8 ohm
    IR Repeating 30–60kHz
    IR Sensor Range 40 ft @ 40kHz, 25 ft @ 56kHz
    Operating Temperature -10°C to +50°C

    Designed in the U.S. Made in Taiwan. A-BUS is a registered trademark of Leisure Tech Electronics Pty Ltd. Specifications subject to change without notice.
