ABB-Welcome Video Indoor Station 7'' (M22381) — Product Overview & Installation
Product overview and installation reference for the ABB-Welcome Video Indoor Station 7'' (M22381-W / M22381-B) — a frameless touchscreen indoor station for video door entry systems.
Full text manual (for reference)
Product overview and installation reference for the ABB-Welcome Video Indoor Station 7'' (Model M22381-W / M22381-B). This frameless 7" touchscreen indoor station is part of the ABB-Welcome video door entry system, supporting surface-mounted, flush-mounted, and desktop installation.
Overview
The 7" panel is the newest member of the ABB-Welcome indoor lineup. It features a frameless, glass-finish capacitive touchscreen with an intuitive icon-based interface, at only 7.8 mm thick after flush-mount installation. It supports 2-wire non-polarized installation — one power supply can support up to 20 panels simultaneously.
Key Features
- 7" capacitive touchscreen, 1024×600 resolution, frameless glass-finish design
- Display and record video from the outdoor station or external cameras

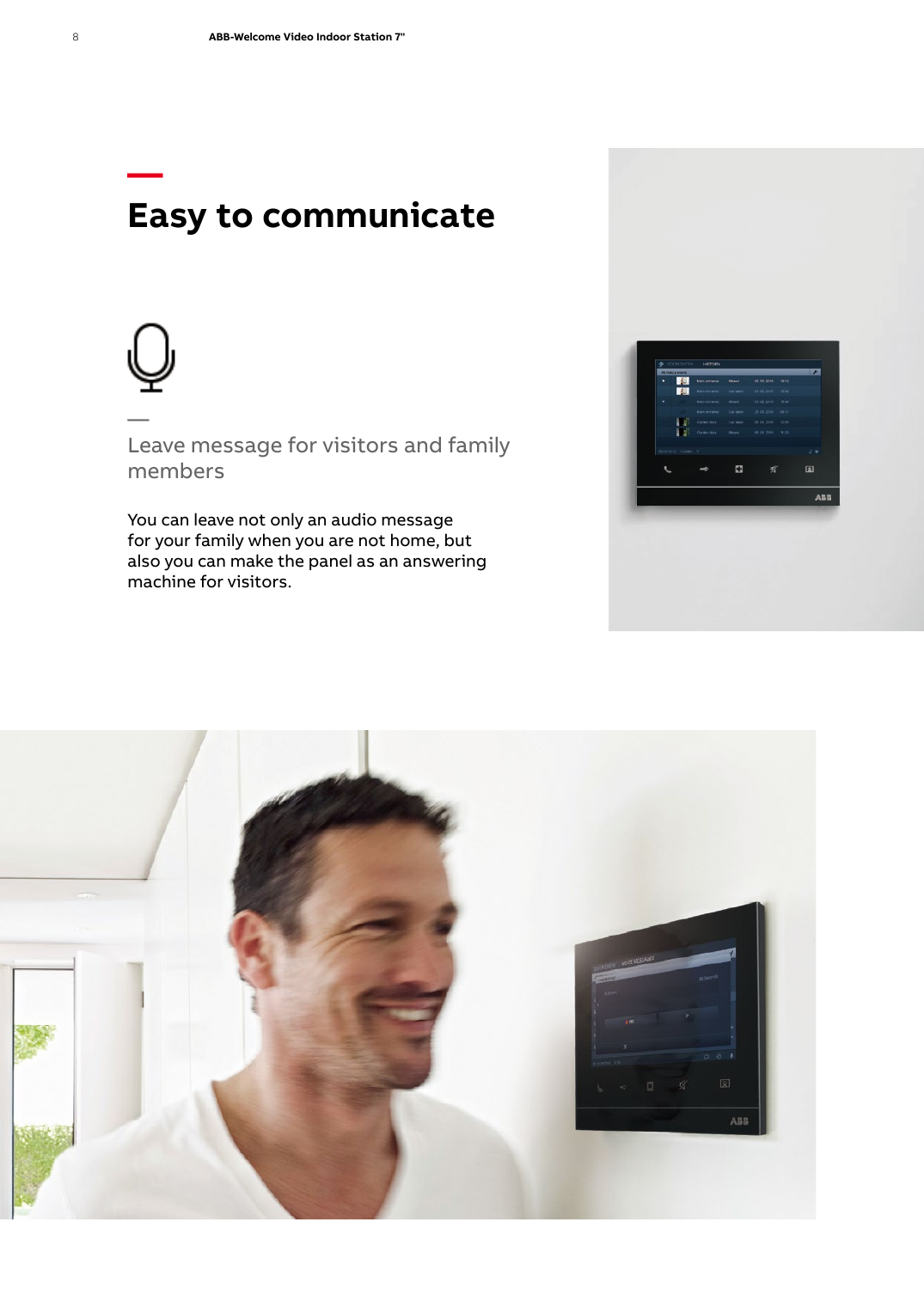

- Leave audio/video messages for family members or visitors when away from home
- Five selectable bell sounds, plus custom ringtone playback from SD card

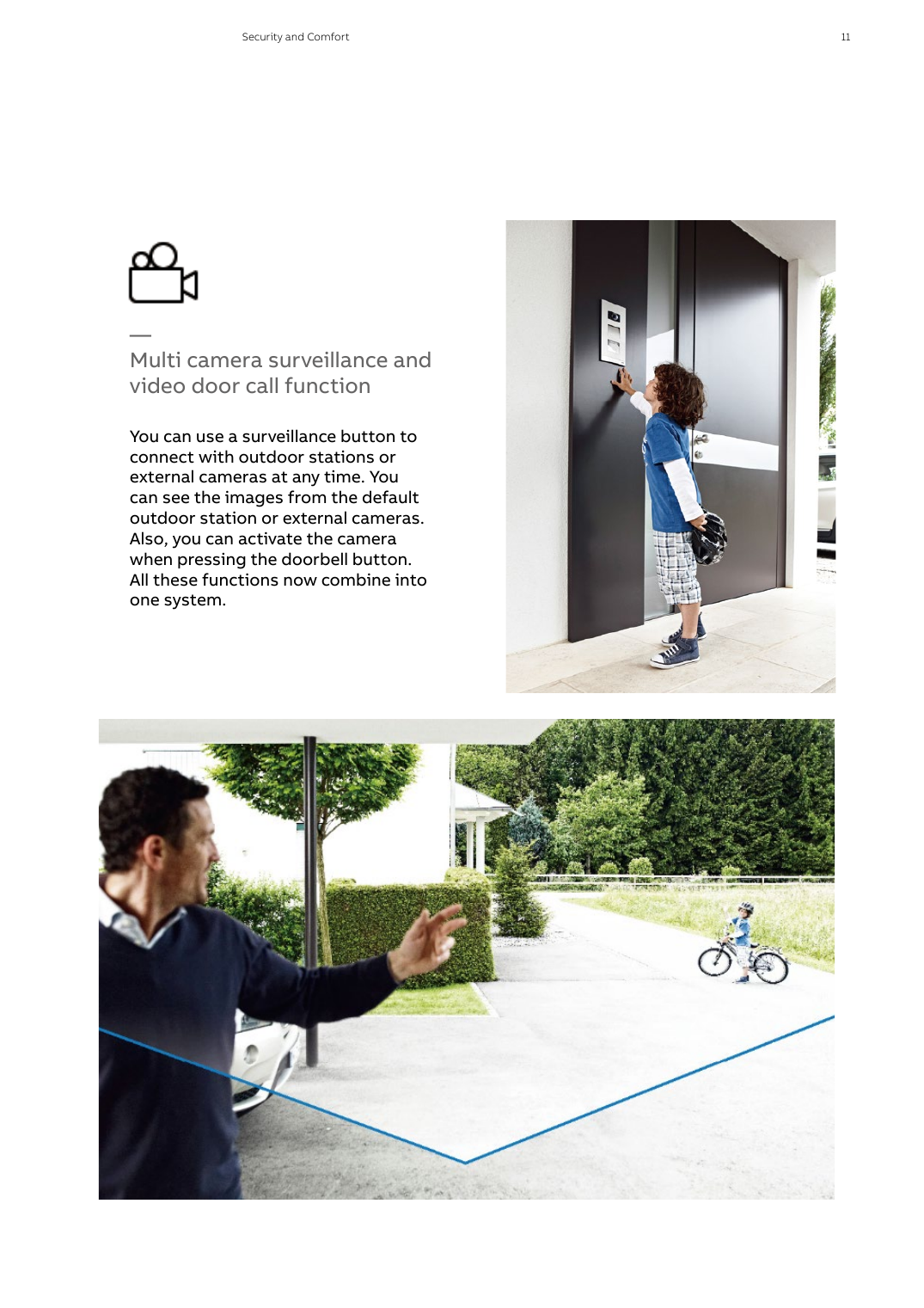

- Multi-camera surveillance — connect to the default outdoor station or additional external cameras at any time; camera can auto-activate on doorbell press
- "Doctor" function for automatic unlock
- Internal calling to other users/apartments or neighbors in the same system
- Call concierge/guard unit if present, and send SOS alarm to guard unit
- Supports surface-mounted, flush-mounted, and desktop installation with the appropriate mounting box

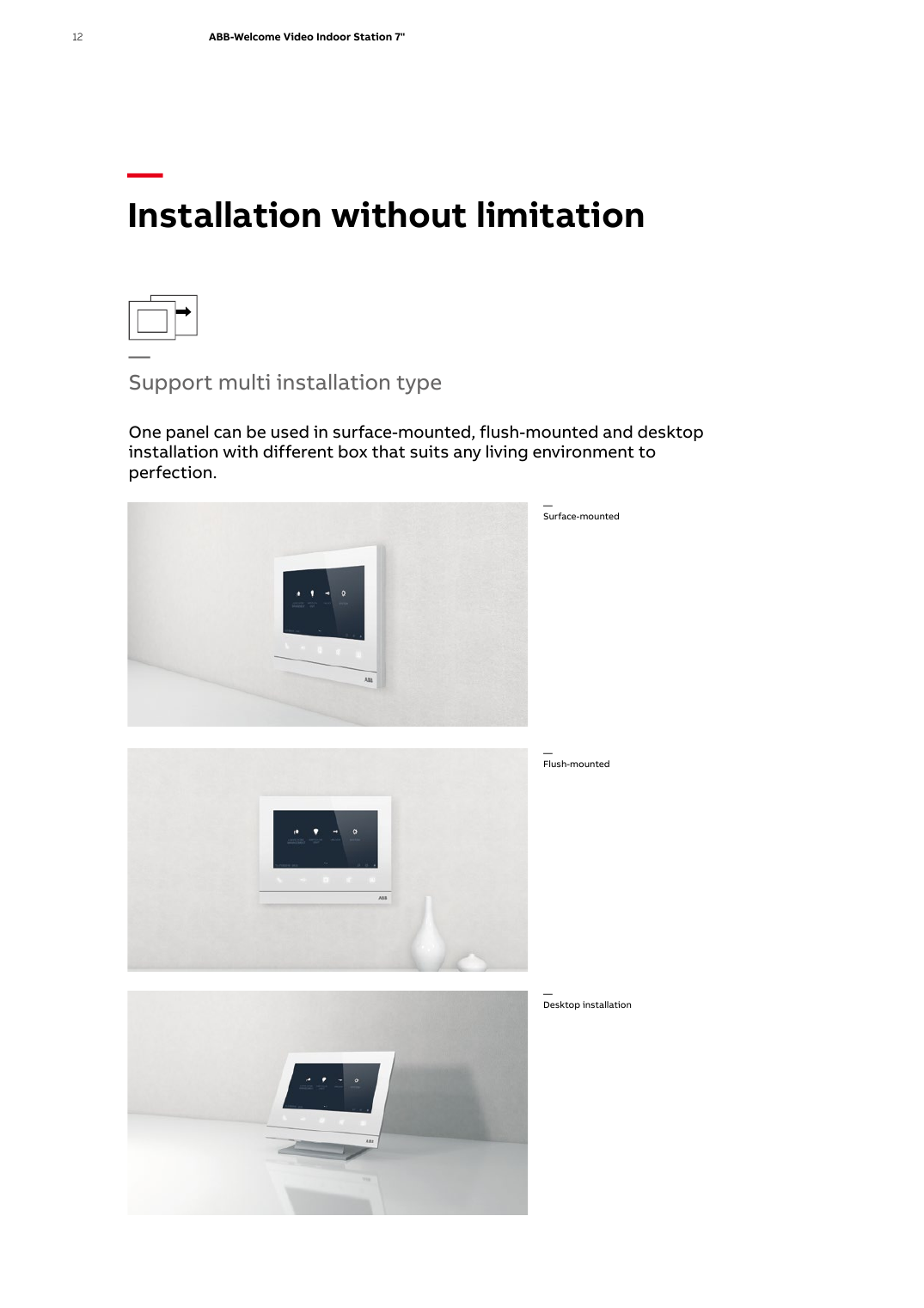

Installation Options and Feature Photos
5-Key Control Layout
The panel uses 5 keys for the main video door entry functions:
- Touch screen — main interface
- Communication button — press within 30 s of an incoming call to answer; press again to end the call
- Unlock button — opens the door at any time
- Programmable button — default function releases the 2nd lock connected to the outdoor station; can be reprogrammed for additional functions (e.g. switching on a light, relay unlock)
- Mute button — mutes the ringtone (standby: this station only; long-press: all indoor stations in the apartment); also rejects incoming calls or mutes the microphone during a call
- Surveillance button — in standby mode, surveils the outdoor station and any available external cameras
An in-built LED indicates missed calls, auto-unlock status, and mute status.
Connection & Addressing Reference
- a1/b1 — bus connector
- Doorbell connector, station switch
- Address selector switches — set the indoor station address: X10 = tens digit, X1 = units digit, X100/X200 = hundreds digit
- Master/Slave switch — only one indoor station per apartment can be set to "Master" (ON = Master)
- Terminal resistor switch — in video or mixed audio/video installations, set to "RC on" at the last device on the line
- Microphone, dismantling switch, Micro-SD card slot, speaker
Specifications
| Spec | Value |
|---|---|
| Display | 7" capacitive touchscreen |
| Resolution | 1024 × 600 px |
| Operating voltage range | 20–30 V DC |
| Standby current | 24 V DC, 12 mA |
| Operating current | 24 V DC, 330 mA |
| Operating temperature | -10°C to +55°C |
| Single-wire clamps | 2 × 0.28 mm² – 2 × 0.75 mm² |
| Fine-wire clamps | 2 × 0.28 mm² – 2 × 0.75 mm² |
| Product dimensions | 198.5 mm × 162.3 mm × 17 mm |
Order Codes
| Item | Color | Order Code | Article |
|---|---|---|---|
| Indoor station w/ surface-mounted box | White | 2TMA220050W0007 | M22381-W |
| Indoor station w/ surface-mounted box | Black | 2TMA220050B0004 | M22381-B |
| Surface-mounted box | White | 2TMA220160W0002 | 42381S-W |
| Surface-mounted box | Black | 2TMA220160B0002 | 42381S-B |
| Flush-mounted box + pre-install box | Black | 2TMA130160B0132 | 42361F |
Regulatory / Manufacturer
- Manufacturer: ABB Genway Xiamen Electrical Equipment Co., Ltd, No.7 Fangshan South Road, Xiang An, Xiamen, Fujian, China
- Complies with EN 60950-1:2006/A2:2013, EN 62368-1:2014/A11:2017, EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011
- Follows the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU
- Tested and found to comply with Class B digital device limits, Part 15 of the FCC rules
Safety Warning
Danger: Direct or indirect contact with live components can cause dangerous electric shock, burns, or death. Improper work on current-carrying parts can cause fires. Disconnect mains voltage before mounting or dismantling. Work on 110–240 V mains must only be performed by specialist personnel. The device must only be installed in dry indoor rooms and operates exclusively with components from the ABB-Welcome system.
