Yale nexTouch Cylindrical Z-Wave Plus v2 Pushbutton Lock with Augusta Lever

Smart Lever Lock With Push Button Keypad & Turnkeys

Upgrade the look and security of your door with the Yale nexTouch Cylindrical Z-Wave Plus v2 Pushbutton Lock with Augusta Lever. This smart lock is designed with a push button keypad, a traditional keyhole, and an attractive Augusta-styled lever to provide superior style, security, and access control to your home or business. The nexTouch Cylindrical Pushbutton Lock gives you 3 ways to access your property: inputting a 4-8 digit code into the keypad, using a traditional turnkey, or remotely accessing the lock via a Z-Wave controller or smartphone app. Create up to 500 unique PIN codes you can share with a variety of family members, visiting guests, or contractors, plus a master code for programming and managing access for all created codes.

• Keyed push button lever keypad with backlit acrylic keypad
• Lock/unlock via numbered access code, turnkey, or remotely via Z-Wave
• Give unique codes to friends, family, or temporary guests
• Remove individual codes whenever you need to
• Weather-resistant keypad numbers won't wear off
• Voice assistance guides you through programming in 3 languages
• ANSI/BHMA A156.2, Series 4000 Grade 1. certified for strong, reliable security

As a part of the nexTouch series, this Yale lock comes with several advanced features including ANSI/BHMA Grade 1 certification for long-lasting use, a Door Position Switch to disable the exterior keypad for privacy, free passage modes, lockout keypad functionality, voice-guided programming in 3 languages, and more! The lock's Z-Wave Plus capabilities allow it to be easily integrated into your Z-Wave network for home automation scenes. You'll also be able to use a compatible third party app downloaded for your hub to control it remotely with a smartphone or tablet and receive notifications of when the lock was accessed and by whom.

Installation Details

Designed for use with most standard interior or exterior doors, the lever lock installs on standard doors measuring 1-3/4 inches thick or on 1-3/8" thick doors with a thin door kit (not included, part# 14-4761-0106). All the necessary hardware (latch, strike, screws, etc.) is included, along with a template for door preparation and detailed instructions.

• Installs on a standard door 1-3/4 inches or on 1-3/8 thick door with a thin door kit
• Suitable for right-handed or left-handed operation
• Installation is easier with the BILT app for Android or iOS

This smart lock is powered by four (4) AA batteries, which are included and should last for about one year. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered. Programming is accomplished at the lock via the push button keypad.

Z-Wave Plus v2 Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Push Button nexTouch Lock
• (4) AA Batteries
• (2) Turnkeys
• Mounting Hardware
• Instruction Manual

Notes

• Requires Z-Wave compatible product and hub.
• Remote access requires a smartphone or mobile device with a compatible Z-Wave hub app for iOS and Android.

NexTouch – One Lock Platform, Three Technologies

Yale nexTouch locks feature fully modular designs for users to enjoy multiple advanced security technologies for secure access to their homes or businesses. nexTouch locks and deadbolts give users the convenience of remote and local access control with Zigbee or Zigbee wireless integration and cloud-based management software.

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

• Manufacturer Part #:
• NTB612-ZW3-BSP: Black Suede
• NTB612-ZW3-613E: Dark Oxidized Satin Bronze
• NTB612-ZW3-626: Satin Chrome
• Wireless Protocol: Z-Wave Plus (500 series)
• Lever Style: Augusta
• Max. User Codes: Up to 500 user codes; 4-8 digits each
• Keypad Type: Push button
• Handing: Non-handed
• Batteries: 4 AA Alkaline Batteries (Included)
• Backset: 2-3/4" standard backset, 2-3/8" backset optional
• Latchbolt: 1/2" throw deadlocking latchbolt supplied standard
• Door Thickness:
• 1-3/4" for standard doors
• 1-3/8" for thick doors (requires a thin door kit, part# 14-4761-0106)
• Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4"
• Number of Keys: 2

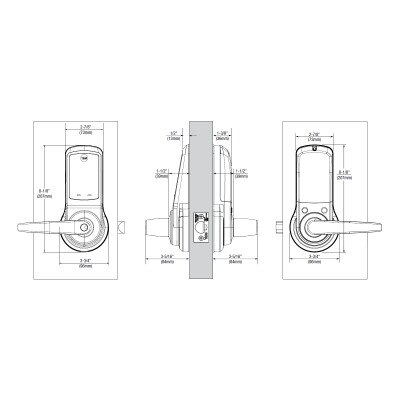

• Lock Dimensions: 2-7/8 x 8-1/8 x 3-3/4 inches (73 x 207 x 96mm)
• Grade: Certified ANSI/BHMA A156.2, Series 4000 Grade 1
• Warranty: 3-Year Limited

»Yale nexTouch Keypad Locks Catelog (.pdf)
