Yale ProSL Key Free Z-Wave Plus Push Button Deadbolt, Gen5

Slim Push Button Deadbolt Controlled With Z-Wave Plus, No Keyhole

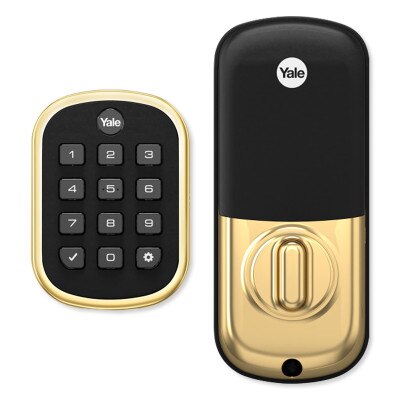

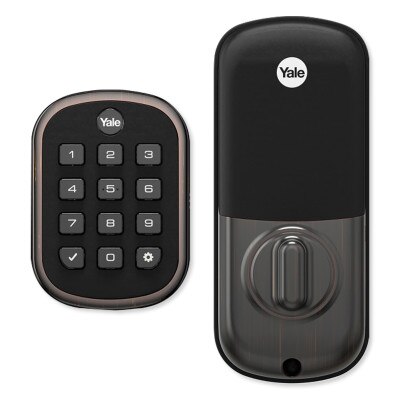

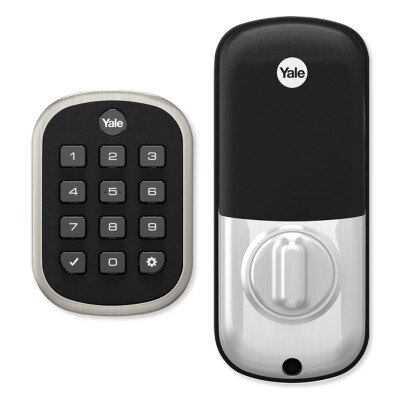

Enhance security at your front door by replacing your old standard deadbolt with the Yale ProSL Key Free Push Button Deadbolt with Z-Wave Plus. This electronic, motorized deadbolt features a slim design, while offering a push button keypad on the outside and a thumbturn on the inside. To unlock the door, input your 4-8 digit code into the keypad, or turn the indoor thumbturn. You have the option to lock it using a Z-Wave remote control, by inputting a numbered access code, or by pressing the Yale Logo Button on the lock.

As a no-cylinder "key-free" model, the deadbolt prevents lock picking or bumping. Plus, by integrating this Z-Wave Plus lock into your Z-Wave network (optional), you can make your home even smarter with wireless capabilities.

• Slim key-free deadbolt eliminates risk of lock picking/bumping
• Lock/unlock via Z-Wave or numbered access code
• Illuminated pushbutton for nighttime code entry
• Give unique codes to friends and family
• Remove individual codes whenever you need to
• Z-Wave Plus certified for wide compatibility
• Easy to install, battery-powered with optional backup
• Voice assistance guides you through programming
• Weather-resistant keypad numbers won't wear off
• ANSI/BHMA Grade 2 for strong, reliable security

The Yale ProSL Key Free Push Button Deadbolt is designed with built-in Z-Wave Plus technology, allowing integration into your Z-Wave network. The lock can seamlessly integrate into 50+ home automation and security systems including ADT, Honeywell, Alarm.com, Vera, Qolsys, 2Gig and more. Once integrated, the Z-Wave deadbolt gains additional features*:

• Lock/unlock deadbolt remotely via Z-Wave
• Max. number of user codes increases from 25 to 250
• Create codes, view access history, and adjust settings via Z-Wave
• History log shows when family/friends come and go in real time
• Trigger other Z-Wave devices upon valid/invalid code entries
• Privacy mode locks out all users for enhanced security

*Features may vary based on the Z-Wave controller.

Installation Details

Designed for use with most standard interior or exterior doors, the deadbolt installs on doors measuring 1-3/8 to 2-1/4 inches thick. All the necessary hardware (latch, strike, screws, etc.) is included, along with a template for door preparation and detailed instructions.

• Installs on a standard door 1-3/8 to 2-1/4 inches thick

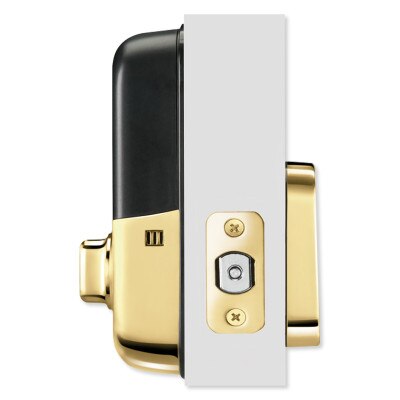

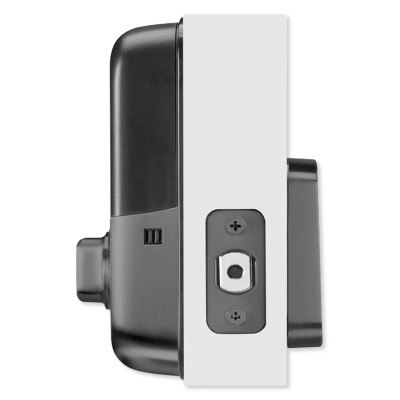

• Adjustable latch fits existing backset of either 2-3/8 or 2-3/4 inches
• Suitable for right-handed or left-handed operation
• Motorized tapered deadbolt accommodates misaligned doors
• Rubber gasket increases protection from outdoor elements

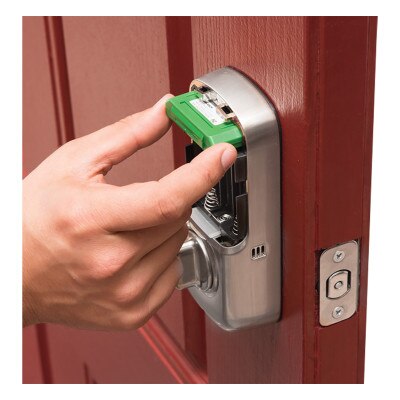

The deadbolt is primarily powered by four (4) AA batteries, which are included and should last for about one year. You may additionally install a 9-volt battery (not included) for backup power. The Z-Wave Network Module easily snaps in above the batteries. When the battery is low or the lock is tampered with, an alert is triggered.

Programming is accomplished either at the lock via the pusbutton screen, or through your Z-Wave system controller. This pushbutton model provides voice-assisted programming to help you through the setup process. Voice assistance is available in three languages (English, Spanish, French) and has adjustable volume.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Yale ProSL Key Free Pushbutton Deadbolt
• (4) AA Batteries
• Mounting Hardware
• Instruction Manual

NOTE: Optional network integration requires a Z-Wave controller.

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

• Manufacturer Part #:

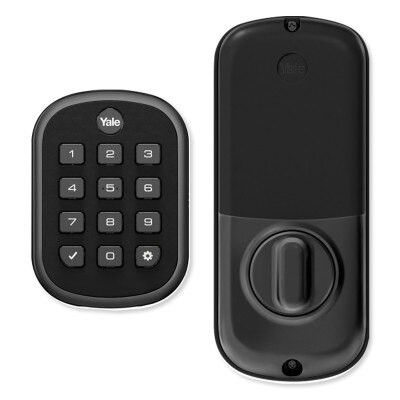

• YRD136-ZW2-BSP: Black Suede
• YRD136-ZW2-P05: Lifetime Brass

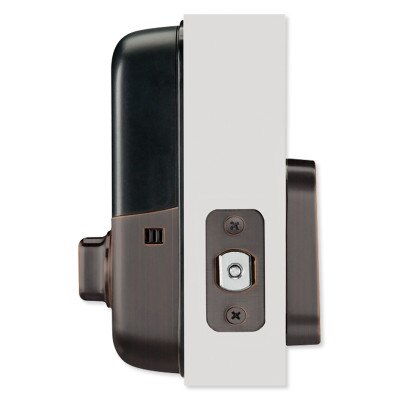

• YRD136-ZW2-0BP: Oil Rubbed Bronze
• YRD136-ZW2-605: Polished Brass

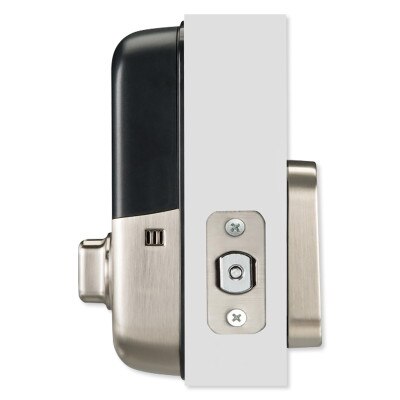

• YRD136-ZW2-619: Satin Nickel
• UPC:
• YRD136-ZW2-BSP: 081023066389
• YRD136-ZW2-P05: N/A
• YRD136-ZW2-0BP: 081023066372
• YRD136-ZW2-605: 081023066365
• YRD136-ZW2-619: 081023066358
• Door Thickness: 1-3/8" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Face Bore: 2-1/8" or 1-1/2" with small bore hole adapter
• Edge Bore:
• 1" Diameter
• 1" Depth
• Latchbolt Type:
• Round Corner
• Adjustable Latch to Accommodate a 2-3/8" or 2-3/4" Backset
• Handing: Self handing (Please hand while in unlocked position)
• Certifications: Grade 2 A156.36 ANSI/BHMA
• Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical
• Batteries: 4 AA Alkaline Batteries (Included)
• Not Compatible With: Mortise Locks, Interconnected Locks, Rim Cylinder Locks
• Lock Dimensions:
• Exterior: 11/16 x 2-9/16 x 3-9/16 inches
• Interior: 3-3/4 x 3-1/8 x 6-3/4 inches
• Grade: Grade 2
• Number of Keys: 0
• Number of Entry Codes: 100

»Yale YRD136 ProSL Key-Free Deadbolt with Z-Wave Plus User Manual (.pdf)
