Yale Pro 2 Keyed Pushbutton Keypad Lock, Bluetooth with Wi-Fi Connect Bridge
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Add Bluetooth and Wi-Fi Connectivity to Your Door

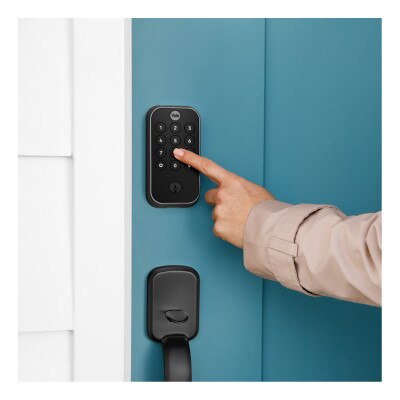

Replace your existing front door lock with a smart lock with wireless access with the Yale Pro 2 Keyed Pushbutton Keypad Lock, Bluetooth with Wi-Fi Connect Bridge. This Bluetooth compatible smart lock replaces your existing lock and deadbolt to provide 4 ways to access your door: entering a 4-8 digit passcode into the pushbutton keypad, Auto Unlock & Auto Lock via proximity detection, using a standard turnkey, or remotely accessing the lock through the Yale Access app when within Bluetooth range. Additional features include Apple Homekit compatibility, voice control via Siri, and IPX5 Coastal Grade Rating and 90 Minute Fire Rating which ensure the lock can continue to operate during rainy weather or in fire related emergencies. Included with this Bluetooth smart lock is the Yale Connect Wi-Fi Bridge, a plug-in connectivity module that connects any nearby Yale Bluetooth lock to the Internet via your Wi-Fi network to enable remote access with the Yale Access app without requiring a Yale Smart Module.
- Bluetooth smart lock with pushbutton keypad offers multiple key-free and remote access options to unlock your front door
- Yale Connect Wi-Fi Bridge connects compatible Bluetooth Yale Locks to the Internet via Wi-Fi
- 4 ways to unlock: 4-8 digit passcode, remote access through the Yale Access app, Auto-Unlock via proximity, and standard turnkey
- Included DoorSense Sensor reports lock and door status and enables Auto-Unlock/Auto-Lock when entering or leaving Bluetooth proximity
- IPX5 Coast Rating and Fire Rated for up to 90 minutes ensures reliable performance in inclement weather and fire emergencies
- Compatible with most left and right handed US and Canada doors
- Two-factor authentication and fingerprint resistant keypad ensure access to your door is kept within your control
- Share passcodes with guests, friends, and family and schedule when passcodes can be used through Yale Access app
- Voice control compatible with Apple Siri, Amazon Alexa, and Google Assistant
Enjoy Hands-Free Access with Auto-Unlock and Auto-Lock
The Yale Pro 2 Lock offers hands-free operation through its smart Auto-Unlock and Auto-Lock features. When your mobile device, authorized through the Yale Access app, enters Bluetooth proximity range of the Yale Pro 2 Lock and the included DoorSense Sensor, the lock will automatically unlock for easy entry. The small magnetic DoorSense Sensor mounts onto or within your door frame to report to the Yale Access app whether your door is open or closed and if the Yale Pro 2 Lock is engaged or unlocked. Once inside and after closing the door, the lock can automatically lock itself once your mobile device leaves Bluetooth range or after a set period of time. This hands-free operation helps when bringing in groceries, large packages, or groups of people, and ensures the door is in the correct position before the lock changes its status, notifying you when the door or lock are not in the correct position.
Physical Operation Ensures Backup Access
This keyed Yale lock includes a traditional keyturn lock to lock/unlock your door from the outside and a thumb turn latch for indoor operation. One physical key is included.

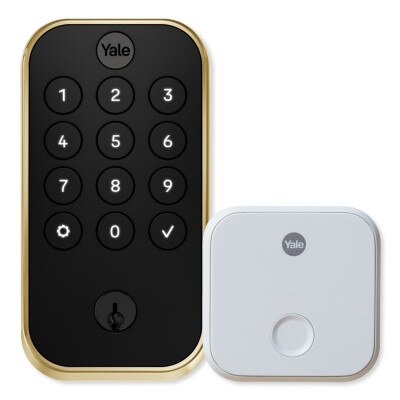

Yale Connect Wi-Fi Bridge
The Yale Connect Wi-Fi Bridge is a plug-in Bluetooth to Wi-Fi bridge module that connects nearby Yale Bluetooth locks to your Internet network via Wi-Fi connection. This module allows you to monitor and control the connected Bluetooth lock from the Yale Access app outside of Bluetooth range without requiring a Yale Smart Module for each lock. Once setup and connected, the Wi-Fi Bridge maintains the Bluetooth connection with your nearby Yale locks, from your Smart Deadbolt to your Cabinet Lock. The Connect Wi-Fi Bridge also permits voice commands via smart voice assistants on your compatible mobile device.
Unlock with Yale Access Mobile App
The Yale Access mobile app gives you total control over your compatible Yale lock. From your mobile device, the Yale Access app enables you to remotely lock/unlock your door, enable Auto-Lock and Auto-Unlock when you are near the lock, create and share passcodes with others, and keep track of the lock's activity through saved records and real-time alerts. The app utilizes your mobile device's Bluetooth and Wi-Fi transmitters to provide remote access features to your Yale lock, including integration into home automation systems and smart scenes, and enabling voice control compatibility with Alexa and Google Assistant. Bluetooth only Yale Locks without a Yale Smart Module or the Yale Connect Wi-Fi Bridge can only be controlled by the Yale Access app when your mobile device is within Bluetooth range.
Share Passcodes for Key Free Operation

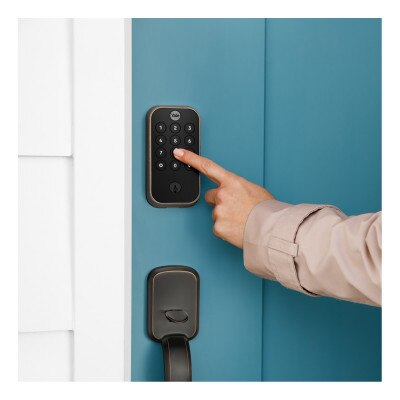

The Yale Pro 2 Lock includes a built-in pushbutton keypad to allow owners and guests to create, share, and input up to 500 4-8 digit codes to unlock the door. All codes are saved on the Yale Access app. Owners can schedule when codes are valid, from certain days of the week or windows of time on a given day, for greater access control over your building.
Installation Details

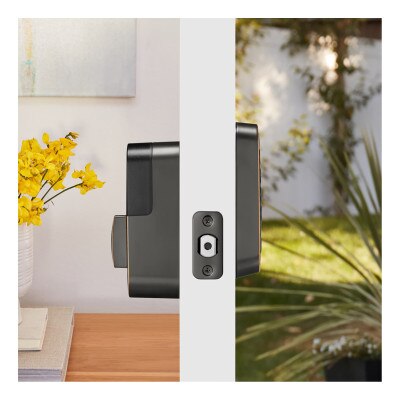

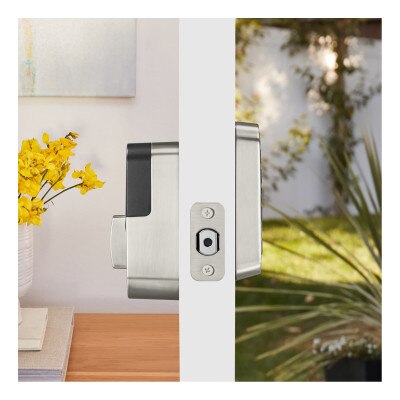

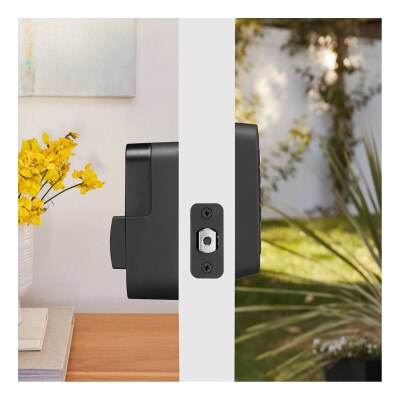

The Pro Lock 2 installs on most standard entryway hinge and pivot doors in the US and Canada measuring 1-3/8 to 2-1/4 inches thick. The lock is suitable for both left or right handed doors. All the necessary hardware is included, along with a template for door preparation and detailed instructions.
- Installs on a standard door 1-3/8 to 2-1/4" thick
- Adjustable latch fits existing backset of either 2-3/8" or 2-3/4"
- Suitable for right-handed or left-handed operation
The deadbolt is powered by four (4) AA batteries, which are included and should last for up to 9 months. In the event that the batteries die, the lock can still be accessed with a turnkey and the interior thumbturn. A Yale Smart Network Module (sold separately) easily snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered.

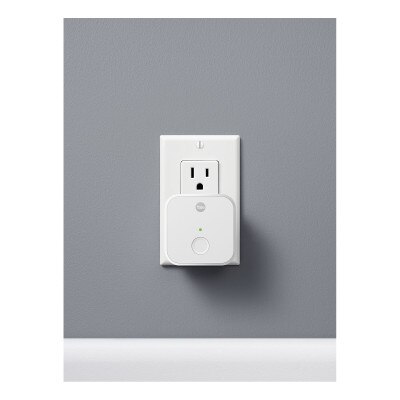

The Yale Connect Wi-Fi Bridge plugs into a power outlet near your Yale Lock and connects to your home Wi-Fi network. The Yale Connect Wi-Fi Bridge should be installed within 30 feet of your Yale Smart Lock; within 15 feet is recommended for optimal performance and reliability.
Contents

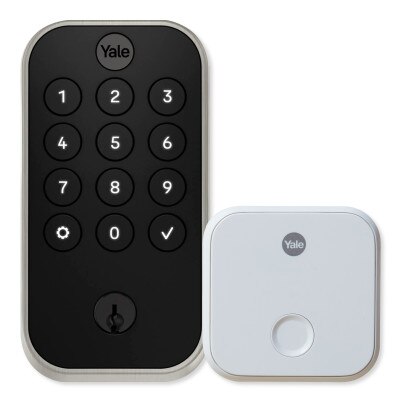

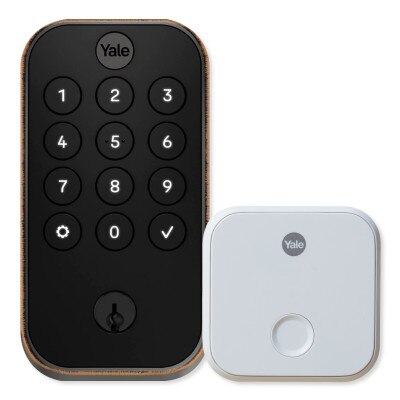

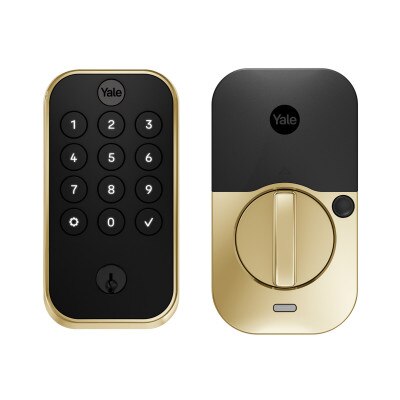

- Yale Pro 2 Exterior Pushbutton Keypad and Deadbolt, Keyed

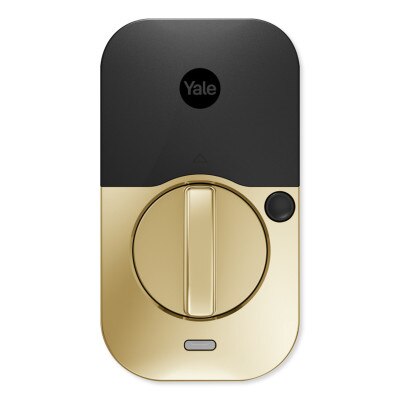

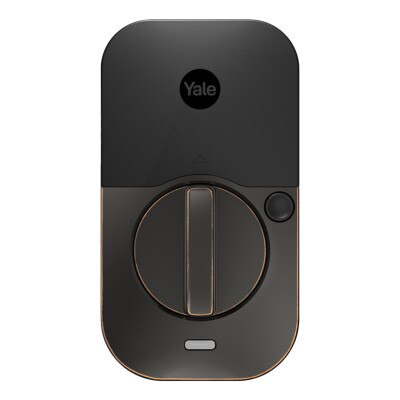

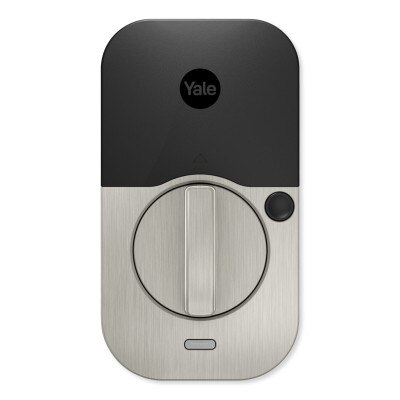

- Yale Pro 2 Interior Lock
- Yale Connect Wi-Fi Bridge
- DoorSense Sensor
- Deadbolt and Strike Plate
- Mounting Hardware
- (4) AA Batteries
- Door Template
- Turnkey
- Installation Manual
Notes
- The Yale Connect Wi-Fi Bridge performs optimally when plugged in within 15 feet of the desired Yale Bluetooth lock.
- Multiple Bluetooth locks may be connected to a single Connect Wi-Fi Bridge at a time, but better connection is experienced when one Yale Lock is connected to one Yale Connect Wi-Fi Bridge.
- Remote access requires a smartphone or mobile device with the Yale Access app for iOS and Android.
Yale: Simpler & More Secure
Yale focuses on making home security simple, secure, and easily accessible for any consumer. They are committed to designing products and services that allow anyone to monitor and manage entry into the home from wherever they are, while keeping intruders out. They've created a thoughtful system of products and services that are easy to use, aesthetically stylish, and completely reliable. Yale products make life simpler and more secure.
Specifications
- Manufacturer Part #:

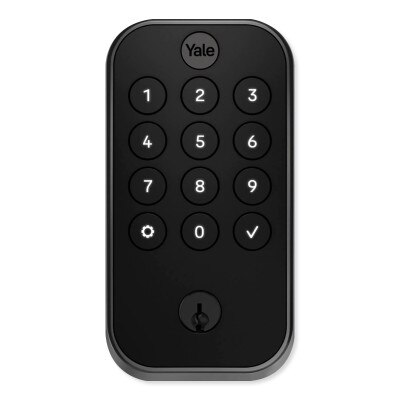

- YRD614-CB1-BSP: Black Suede

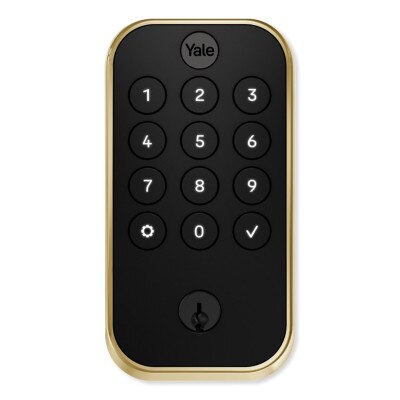

- YRD614-CB1-P05: Lifetime Brass

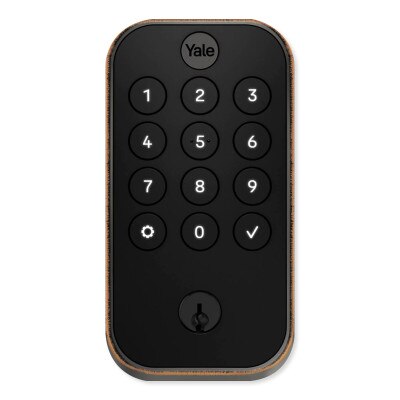

- YRD614-CB1-0BP: Oil-Rubbed Bronze

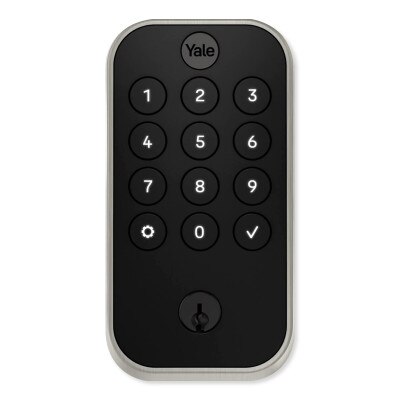

- YRD614-CB1-619: Satin Nickel
- UPC:
- YRD614-CB1-BSP: 081023127752
- YRD614-CB1-P05: 081023127776
- YRD614-CB1-0BP: 081023127769
- YRD614-CB1-619: 081023127738
- Wireless Protocol: Bluetooth and Wi-Fi via Yale Connect Wi-Fi Bridge
- Number of Entry Codes: 500
- Keypad Type: Pushbutton
- Face Bore: 2-1/8" or 1/12"
- Edge Bore: 1"
- Door Thickness: 1-3/8" to 2-1/4"
- Backset: 2-3/8" or 2-3/4"
- Strike Plate: 1" x 2 1/4" RC (Round Corner)
- Latch: 2 3/8" or 2 3/4" Adjustable Latch
- Faceplate: 1" x 2 1/4" RC (Round Corner)
- Keyway: KW-1 5 Pin
- Number of Keys: 1
- Handing: Self-handing
- Outside Temperature: -22 F to 140°F (-30 to 60°C)
- Inside Temperature: 5 F to 158°F (-15 to 70°C)
- Battery Temperature: -14 F to 131°F (-10 to 55°C)
- Storage Temperature: -40 F to 185°F (-40 to 85°C)
- Weight: 4.5 lbs
- Dimensions:
- Exterior: 0.8" L x 2.6" W x 4.9" H
- Interior: 1.7" L x 2.7" W x 4.9" H
- Ratings & Certifications:
- ANSI/BHMA Grade 2
- 90 min fire rated
- Coastal Grade IPX5 rated
- Warranty: 1 Year for Electronics, Lifetime Limited for Finish/Mechanical
