X10 Push Button Relay Wall Switch


Order now and we'll ship same business day (if ordered before 3 pm PST).


WARNING: Cancer and Reproductive Harm –


Push for X10 Control

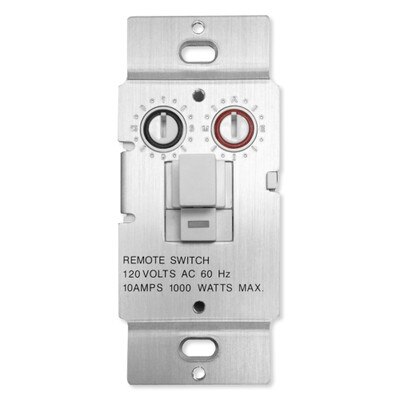

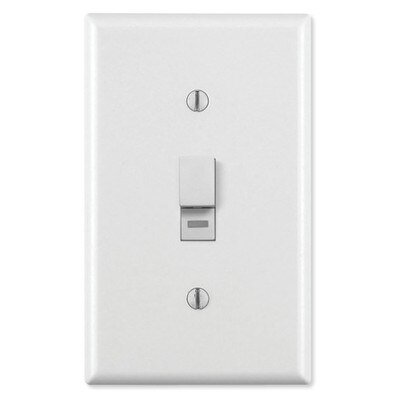

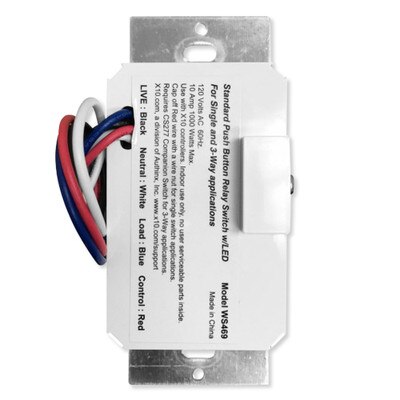

The X10 Push Button Relay Wall Switch replaces a standard wall switch to add X10 control to a connected wired load. The Push Button Relay Wall switch works with lighting fixtures including incandescent, LED, Fluorescent, Halogen, and more! The switch comes with a built-in LED to indicate on/off status and help you find the switch at night.

  • Responds to X10 On/Off commands
  • Supports 1000W lights and 120V/10 Amp appliances
  • Built-in LED indicates On/Off Status and guide you through the dark


  • X-10 Relay Wall Switch

NOTE: Wallplate not included. Neutral wire required.

The X10 Appliance Wall Switch With Silent Relay Is An X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver – both sold separately. Transmitters are control devices that send X10 signals through your home's electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

X10 Makes It So Easy To Automate Your Home!

X10 began manufacturing home automation and security products in the late 70s, establishing X10 as a smart home standard. X10 utilizes powerline technology to transmit control signals anywhere in your house over your existing electrical lines, so you can control lights and appliances throughout your home without running new wires! Have complete, automated control over lights and appliances from anywhere in your home with X10.


  • Manufacturer Part #: WS469
  • Dimensions: 4.8 x 3 x 3 inches
  • Max Voltage: 10 Amp; 1000 Watts
  • Warranty: 120 Day Limited
