Winland Wireless Multi-Function Transmitter

Monitors Temperature, Presence Of Water, And More

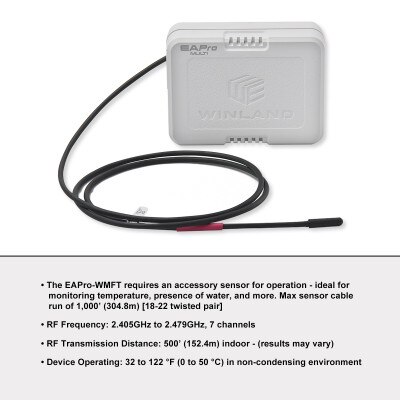

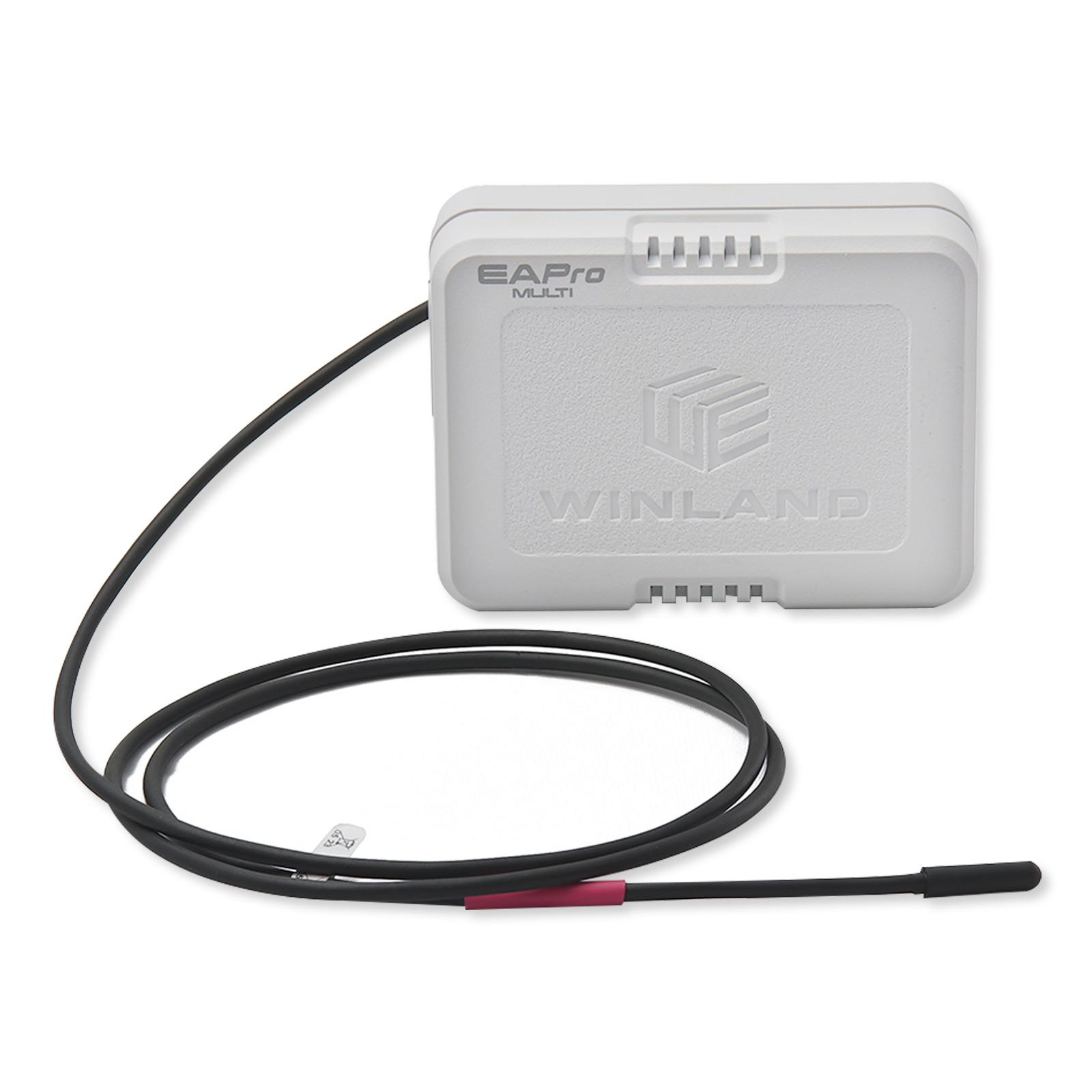

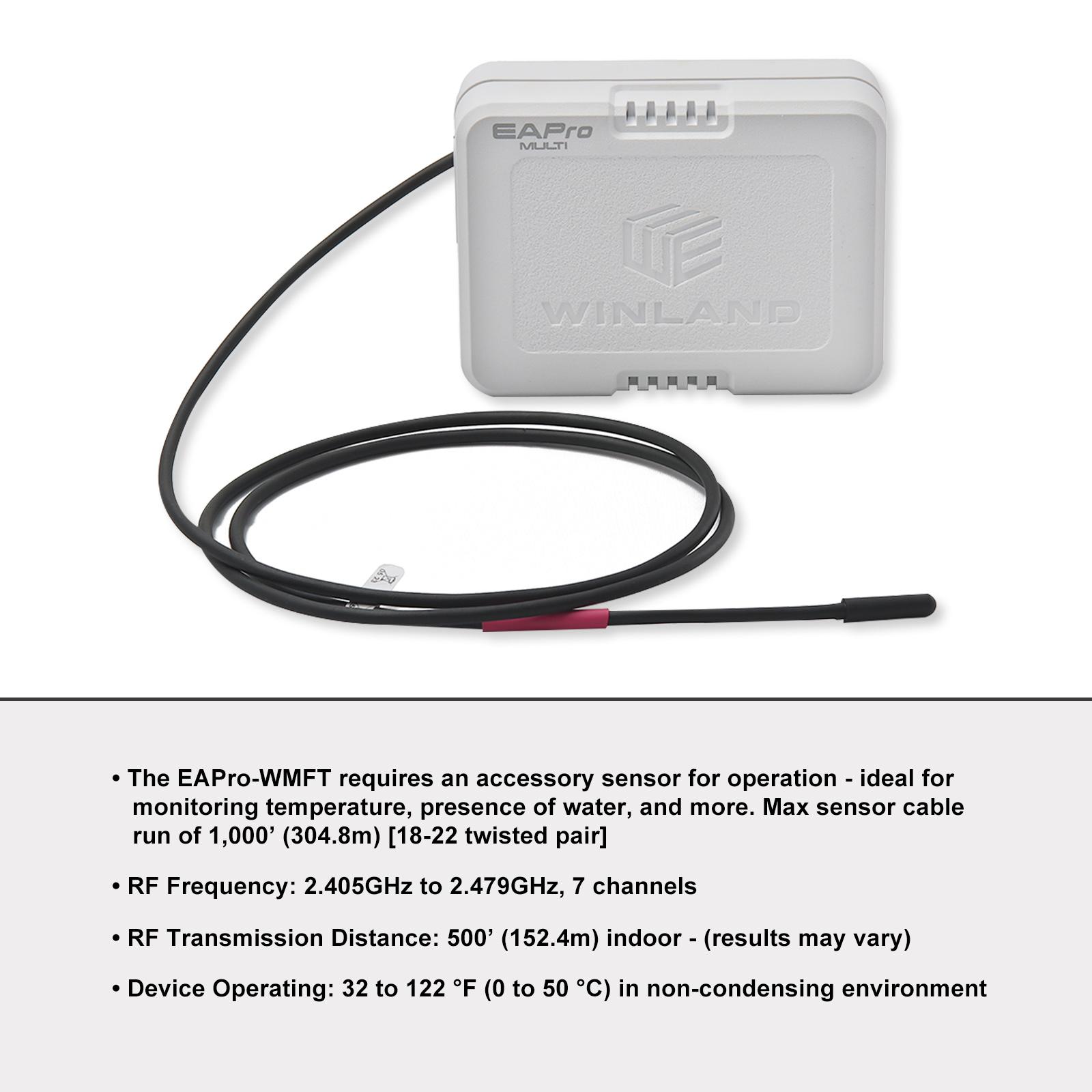

Expand the capabilities of the Winland EnviroAlert Professional EAPro Gateway with the Winland Wireless Multi-Function Transmitter. This multifunction transmitter requires connection to the EAPro Gateway and an additional Winland sensor (both sold separately) to monitor for temperature, the presence of water, and more to help prevent potential damage to delicate equipment or structures of a room. With a maximum sensor cable run of 1,000 feet (304.8 meters) and an indoor transmission distance of 500 feet (152.4 meters), it ensures reliable data collection. Humidity levels can also be easily managed with adjustable high/low set points via the Winland EnviroAlert Professional EAPro Gateway (sold separately), and can be updated remotely using INSIGHT: Winland's real-time and cloud-based, critical-environment monitoring system. Additionally, the transmitter operates on a 2.405GHz to 2.479GHz RF frequency with seven channels to ensure efficient wireless communication.

• Multifunction transmitter monitors for temperature, the presence of water, and more
• Indoor transmission distance of 500 feet (results may vary)
• RF frequency of 2.405GHz to 2.479GHz with 7 channels
• Maximum sensor cable run of 1,000 feet (18-22 AWG twisted pair)
• Updates can be done remotely via INSIGHT (requires subscription)

INSIGHT: Critical-Environment Monitoring System

As Winland's automated, cloud-based critical-monitoring service, INSIGHT provides real-time visibility via alerts of environmental irregularities due to temperature, water, gas, and humidity conditions that may cause damage to environment-dependent assets. Winland offers a fee-based subscription if you want to receive email/text message alerts, reporting, and the ability to configure online.

Contents

• Winland Wireless Multi-Function Transmitter
• Manual

Notes

• Requires an additional Winland sensor and the Winland EnviroAlert Professional EAPro Gateway (all sold separately).
• Should not be placed in cooler or freezer environments; instead, a hardwired sensor should be utilized.
• To receive email/text message alerts, reporting and the ability to configure online, an INSIGHT subscription is required.

Monitoring Critical Environments Has Never Been This Simple

Electronic water detection at its best! For over 25 years Winland Electronics has manufactured environmental security products, providing peace-of-mind solutions to protect against unfavorable water leakage in residential or commercial property. These WaterBug products provide reliable protection to effectively detect water and will send an alert signal to notify you of a problem. The WaterBug products can be integrated with any security system. Don't fall into the trap of only half protecting your property, specify Winland's security product solutions!

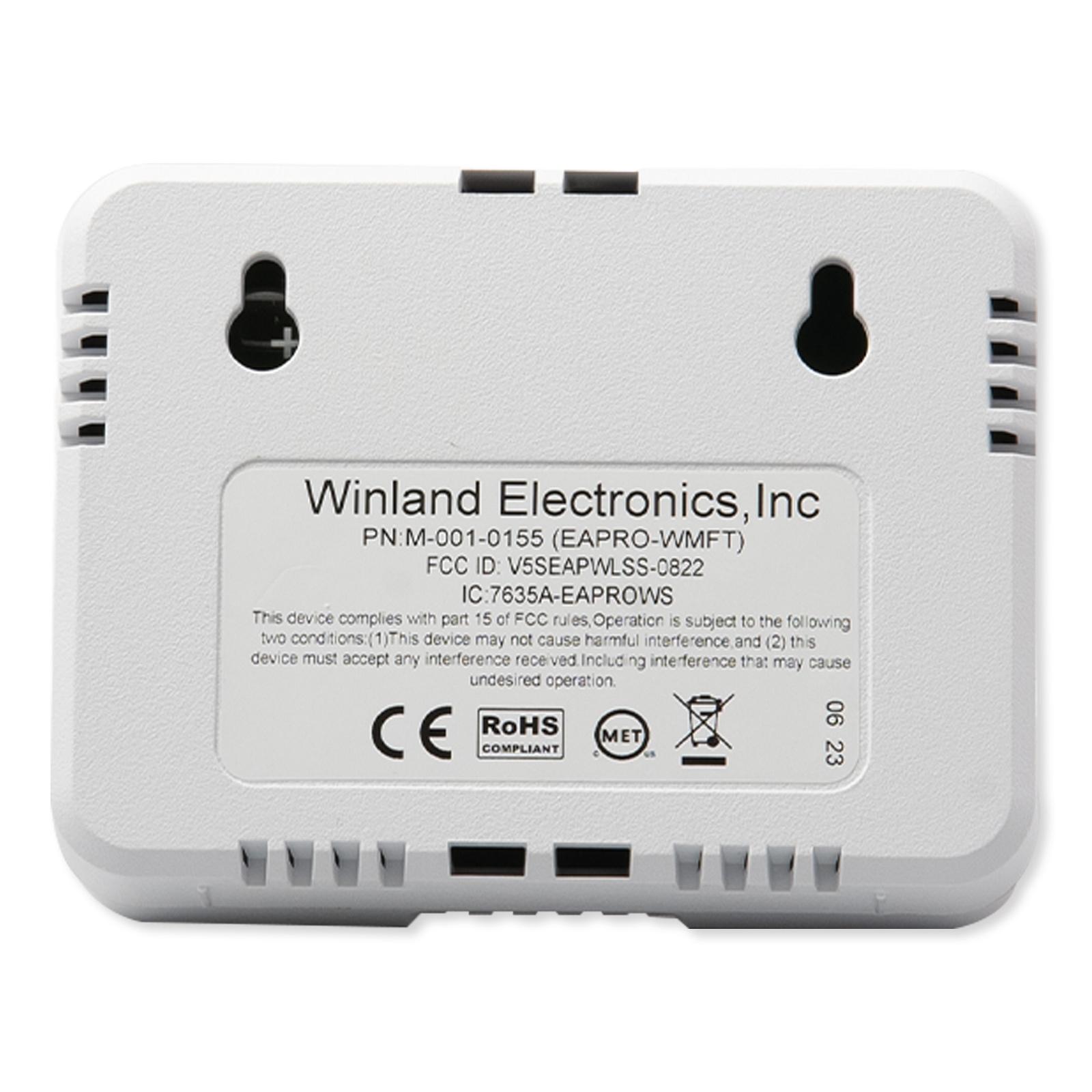

• Manufacturer Part #: EAPro-WMFT
• UPC: 082075011556
• Sensor Temperature Range: Remote sensor dependent
• Device Operating: 32 to 122°F (0 to 50°C) in non-condensing environment
• Temperature Range: Indoor use only
• Power Requirements: Two AA alkaline batteries and/or 12~24V DC transformer
• RF Frequency: 2.405GHz to 2.479GHz, 7 channels
• RF Transmission Distance: 500' (152.4m) indoor – (results may vary)
• Dimensions: 3.9" x 2.9" x 1.7" (9.9cm x 7.4cm x 4.3cm)
• Weight: 3.3oz (93.5g) without batteries / 4.9oz (138.9g) with batteries
• Mounting: Surface Mount
• Certifications: CE, RoHS, WEEE

»Winland EAPro-WMFT EnviroAlert Professional Wireless Multi-Function Transmitter Spec Sheet (.pdf)
