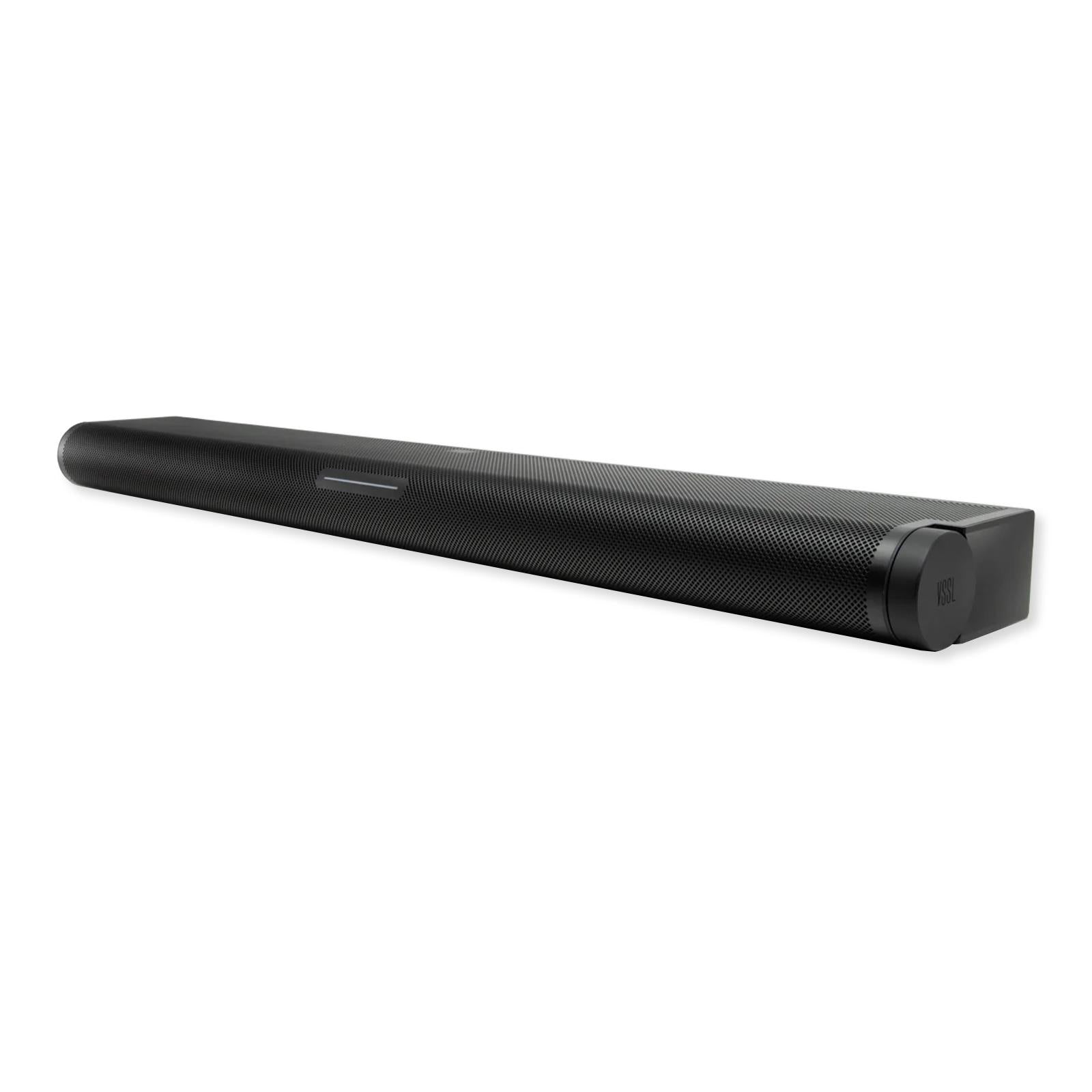

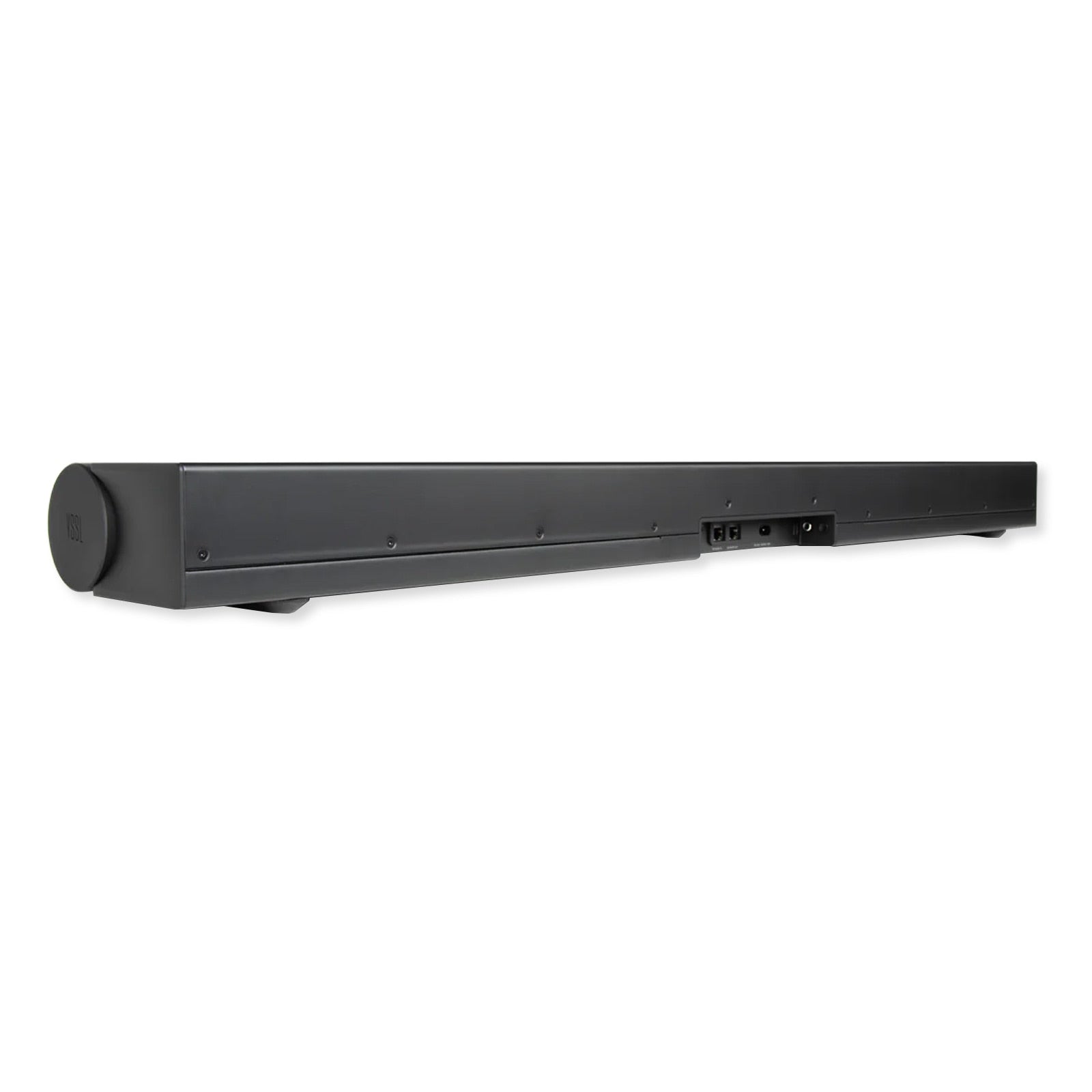

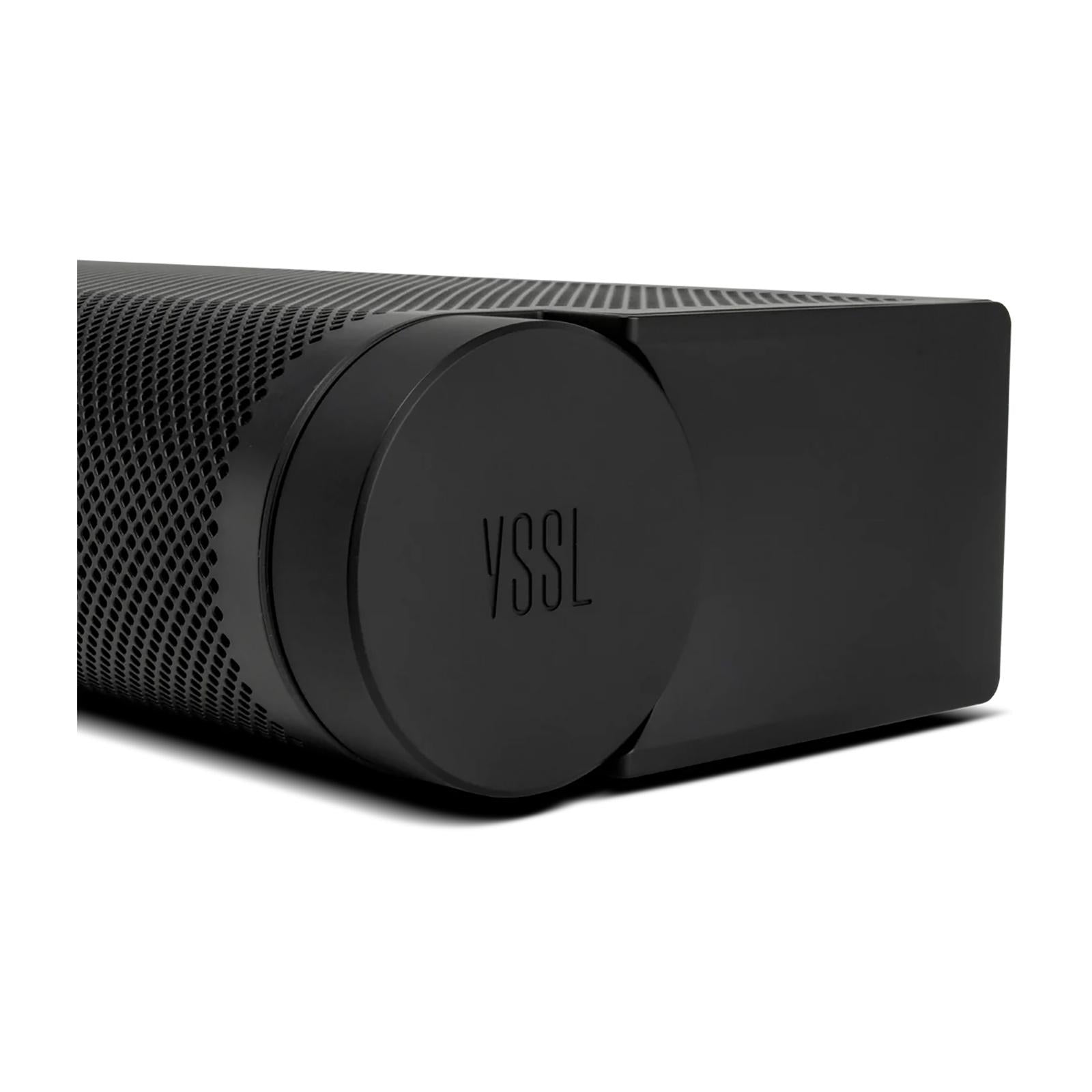

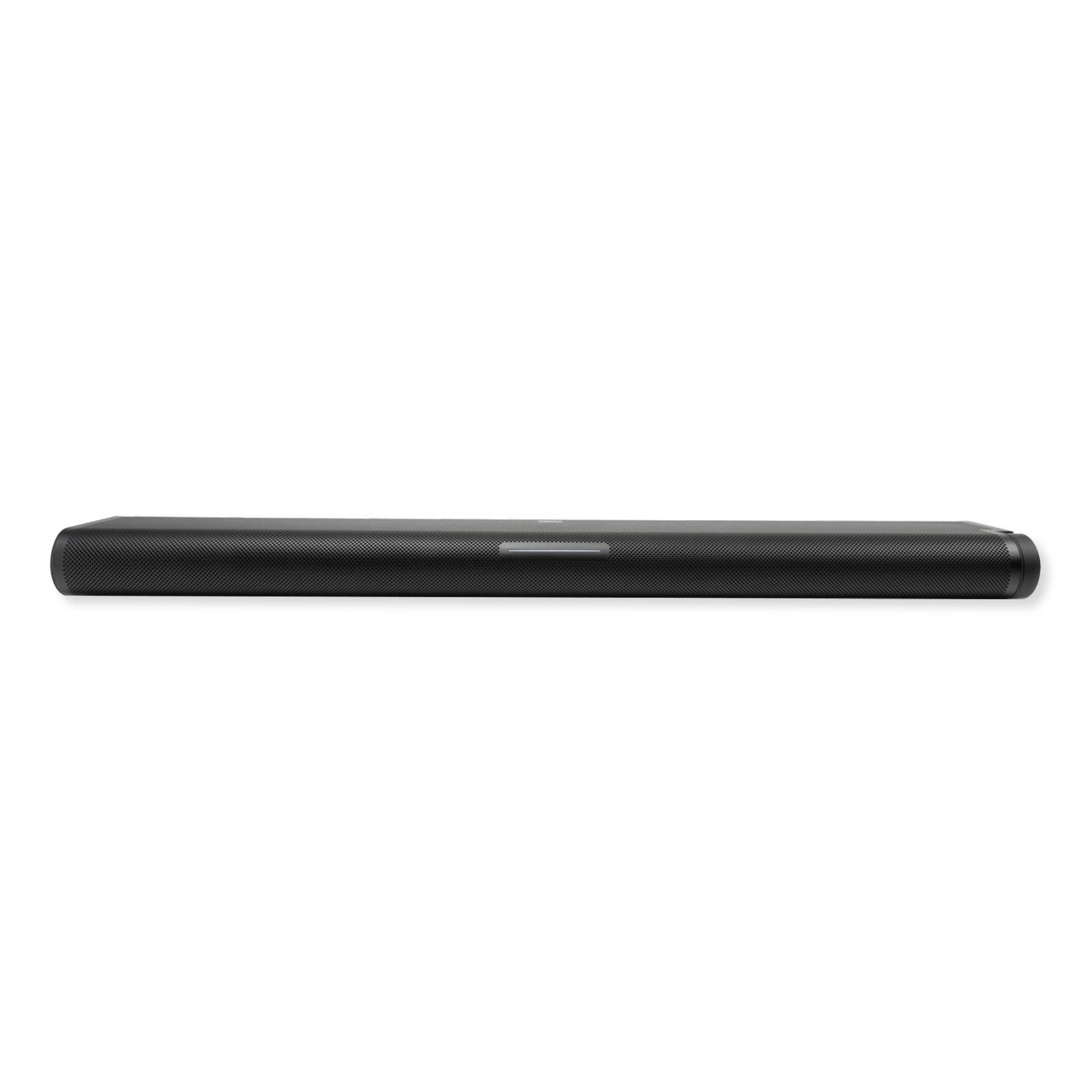

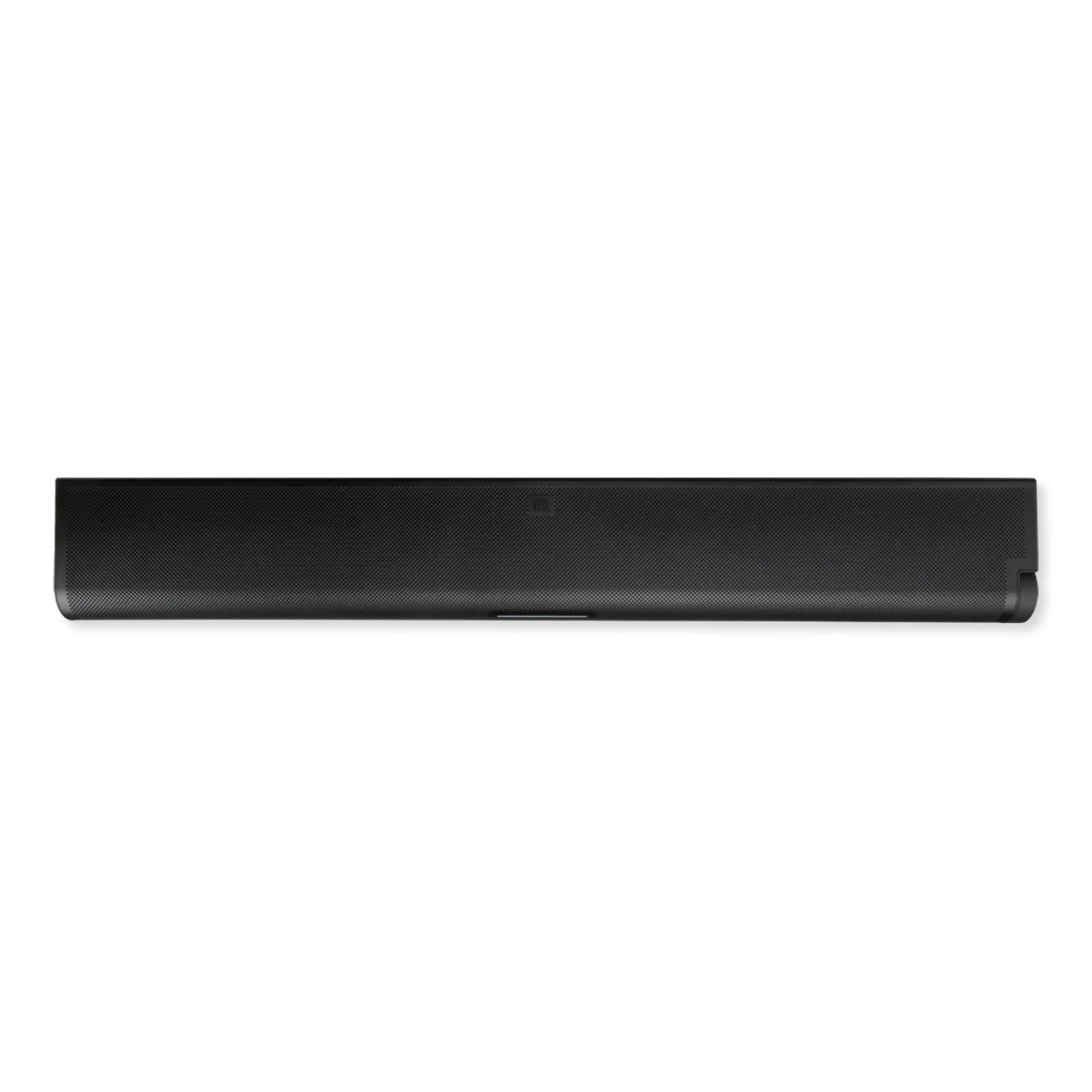

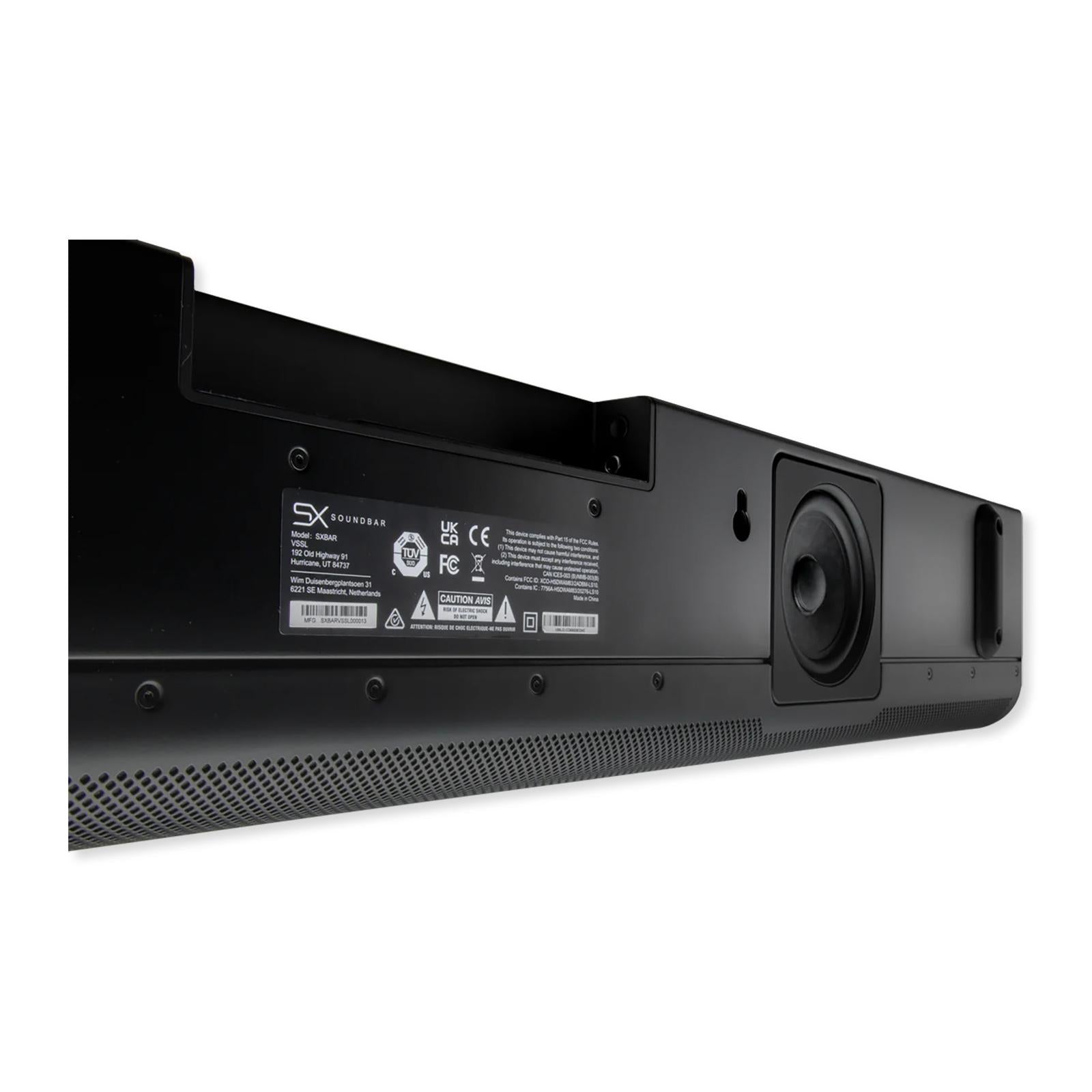

VSSL SX Series Native Streaming Soundbar

Immerse Yourself in Premium Wireless Audio

Bring Hi-Res Dolby Digital quality audio to your home with the VSSL SX Series Native Streaming Soundbar. This wireless 3-Channel soundbar delivers Hi-Res 24-BIT/192 KHZ quality audio to your home entertainment or home theater setup. The Soundbar's 3-channel LCR wide dispersion speakers and Balanced Mode Radiators (BMR) drivers offer a well balanced audio range. 2 active down-firing woofers further accentuate the audio quality for an immersive sound experience in any situation. As a part of VSSL's SX series of audio devices, the SX Soundbar can create a 5.1 wireless stereo surround sound system when paired with the SX Subwoofer and a pair of SX Speakers (each sold separately).

Play audio directly from your wireless streaming device via Apple AirPlay, Chromecast, Spotify Connect or through a wired Ethernet, optical, or HDMI ARC connection. The SX Soundbar uses Native Streaming™ technology which enables you to select where to play your preferred audio from your favorite mobile apps on your smartphone or tablet without having to switch between multiple apps or remote controls. You can even command the SX Soundbar with Alexa or Google Assistant.

• Wireless audio streaming digital soundbar delivers Hi-Res audio as a standalone 3-Channel output or as part of a 5.1 sound system
• Three 3" BMR Drivers and Two 4" Active Long Excursion Drivers offer full range audio
• Room Correction dynamically tunes the soundbar to the unique acoustics of the room the speaker is installed in
• Ethernet, HDMI eARC/ARC, and optical wired connections for TV or audio matrices
• Dolby Digital Certified for theater quality sound at home
• Native Streaming™ via AirPlay 2, Chromecast, and Spotify Connect
• Wirelessly syncs with the SXSUB and SXSPKR to create a wireless 5.1 Surround Sound System, each sold separately
• Voice control compatible with Siri and Google Assistant
• Compatible with wall mount, table top, or soundbar mount configurations

Native Streaming – The New Way to Play Music

VSSL's products utilize a revolutionary streaming technology known as Native Streaming™. Native Streaming allows you to easily command your home audio by controlling the selected zones and volume control through your preferred music or audio playing app. This means you can play music from Spotify, Pandora, or YouTube, select where in your home you wish to hear it, and adjust volume levels without leaving the selected app or using a physical remote control or third-party app. This gives you a seamless and simple home audio experience unlike any other.

After initial setup using the Google Home and VSSL apps, all you have to do is connect to your home Wi-Fi, open your favorite audio app, choose which zone to play in, and your music will immediately begin playing. You don't have to open those two apps again except for audio equalizing and reconfiguring zones. No device syncing like with Bluetooth, and no login ID or passwords necessary, aside from your home Wi-Fi password.

Convenient, Advanced Controls Through the VSSL App

Use the VSSL app to set and adjust audio quality, volume settings, zone configuration, and page announcements with recorded audio. You can set volume limits for individual or all zones, adjust EQ settings, and mirror any preferred settings across other selected zones or for the whole system. The VSSL app also allows you to record one-time audio messages that you can send to individual or multiple zones. Tell your kids to come down for dinner, or ask your family to bring up your laundry through your home audio system.

With multiple VSSL products or pre-existing audio systems, you can create pre-set groups that are separate from the normal zones. These groups, or party zones, allow you to select multiple zones to play audio in one easy button press. These party groups don't overwrite your existing audio zones, so you don't have to worry about resetting your original zones once the party is over.

Installation Details

The SX Soundbar can be wall mounted, placed on a level surface, or set within a soundbar mount. The Soundbar is powered via plug-in to a standard outlet. The Soundbar connects to your Internet via 2.4GHz Wi-Fi or Ethernet connection. The Soundbar can automatically sync with other SX Series devices and VSSL Streaming Amplifiers on the same Internet network via Wi-Fi or Ethernet. SX Series Subwoofers connect to other SX Series devices via Wi-Fi only.

Contents

• SX Soundbar
• Power Supply
• Wall Mount

Notes

• Native Streaming devices must be connected to the same Internet network in order to synchronize and operate together.
• SX Series devices and your selected wireless audio source must be on the same Wi-Fi network in order to stream audio.
• SX Series Subwoofers connect to other SX Series devices via Wi-Fi only.

IMPORTANT NOTE: VSSL products are not available to ship outside the U.S.

Set Your Music Free With VSSL

VSSL creates premium wireless audio products that are easy to use and enjoyable for people of all ages. Their cutting-edge Native Streaming™ technology delivers all of your music to your fingertips, no third-party controllers or apps necessary. VSSL is the only audio company that uses Native Streaming™, and that's why custom installers and homeowners choose VSSL over any other system to play music throughout their home or office. Native Streaming™, enables listeners to use apps they already know and love, to play music directly from their device to any room.

• Manufacturer Part #: SXBAR
• UPC: 865432000277
• Amplifier: X Class-D digital Amplifier
• Speakers: (3) Wide dispersion BMR drivers
• Woofers: (2) Active down-firing woofers
• System Requirements: TV with HDMI ARC or optical digital audio output, broadband internet, and the VSSL app
• Wireless Connectivity: Connects to Wi-Fi network with any 802.11 b/g/n, 2.4GHz broadcast-capable router
• Equalization: Basic EQ settings
• Ethernet Ports: (2) 10/100 Mbps Ethernet ports (optional)
• Built-in IR: Learns volume commands for any IR Remote
• Room Correction: Dynamically tunes the soundbar to the unique acoustics of the room area (iOS device required)
• Power Supply: Auto-switching 100-240V ~50-60Hz 2 A AC universal input
• Weight: 18.2lbs
• Dimensions (LxWxH): 1067mm x 154mm x 84mm
• Operating Temperature: 32° to 104°F (0°to 40° C)
• Multiple Orientations: Tabletop placement or wall mounted
• Rubber Feet: Built-in rubber feet
• Control: Use your TV remote or the VSSL app

»VSSL SX Series Spec Sheet (.pdf)
»VSSL SXBAR SX Series Native Streaming Soundbar User Manual (.pdf)
