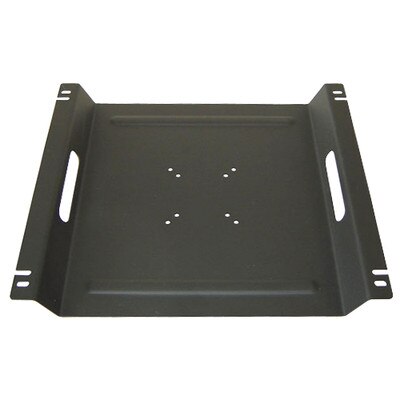

VMP LCD Monitor Rack-Mount

Recess an LCD Monitor Into a Rack

Compatible with standard 19-inch equipment racks, the VMP LCD Monitor Rack Mount allows you to recess-mount a flat screen monitor into the rack. The 9U mount supports monitors sized from 10 to 23 inches with 75mm and 100mm VESA hole patterns. The required mounting screws are included.

• Recesses a flat screen monitor into an equipment rack
• Standard setup holds monitors sized from 10 to 17 inches
• Can be inverted to hold monitors up to 23 inches
• Supports 75/100mm VESA hole patterns
• Powder coat finish resists static/current flow

IMPORTANT NOTE: VMP products are not available to ship outside the U.S. Please contact VMP directly for international orders.

Install With Confidence

VMP mounting systems hang easily from walls or ceilings and are specially designed for maximum tilt and swivel capacity. This flexibility and rotating capability creates easy viewing from any angle. VMP mounting systems are manufactured from tempered high grade steel with a scratch resistant powder coat finish. They offer load capacities of up to 300 pounds, adjust to fit most televisions and monitors, and have been vigorously tested for safety. Many models are UL listed for extra safety and durability. VMP mounting systems include everything needed to assemble a complete mount, in one box, and require no special tools.

• Manufacturer Part #: ER-LCD1017
• Finish: Black powder coat
• Racking Height: 9U
• Load Capacity: 50 pounds
• Dimensions: 19.0(W) x 15.75(H) x 2.2(D) inches
• Weight: 7.1 pounds
• Warranty: "Forever Warranty"

»VMP ER-LCD1017 LCD Monitor Rack Mount Spec Sheet (.pdf)
»VMP ER-LCD1017 LCD Monitor Rack Mount Technical Drawing (.pdf)
