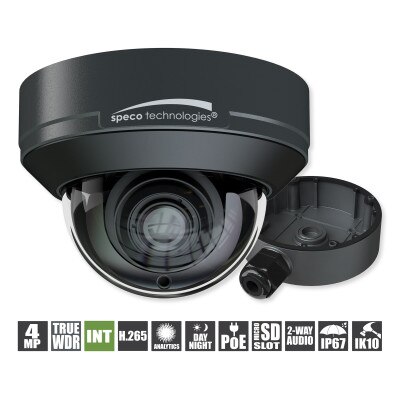

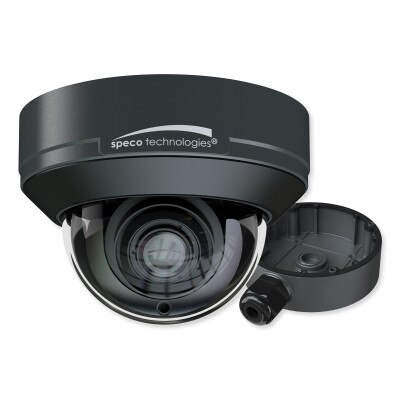

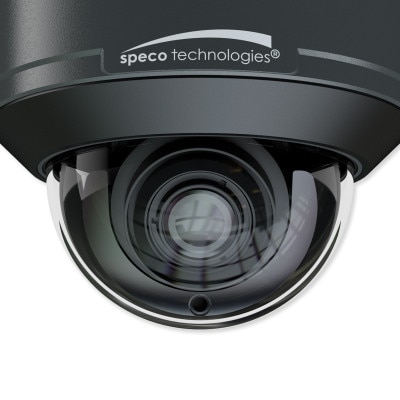

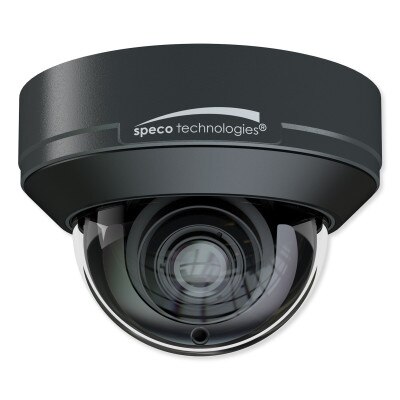

Speco 4MP Intensifier AI IP Dome Camera with Junction Box, 2.8-12mm Lens

Reliable Surveillance In Daytime Or Nighttime

Boost your security at home by capturing clear footage in low-light conditions with the Speco 4MP Intensifier AI IP Dome Camera with Junction Box, 2.8-12mm Lens. This high-quality dome camera records in crystal-clear 4MP @ 30fps (real time) with a max resolution of 2560 x 1440, delivering exceptional image quality for both indoor and outdoor use. Equipped with Advanced Analytics for advanced motion detection, true WDR technology to enhance visibility in high-contrast lighting, and Intensifier Technology to capture full color footage in extreme low-light conditions, this camera ensures exceptional surveillance in any environment. Its rugged, weather-resistant design provides long-lasting durability, while built-in standard PoE simplifies installation by reducing cable clutter. A junction box is included for a secure and professional setup.

• 2.8mm fixed lens captures HD resolution (2592x1520 @ 30fps real time)
• True WDR (wide dynamic range) for image compensation in high contrast areas
• Supports H.265, H.264, MJPEG codecs and multiple streaming (up to 3 streams)
• Intensifier Technology captures full color footage in low-light conditions
• Weather-resistant IP67 and vandal-resistant IK10 ratings for durable use
• Micro SD card slot up to 256GB (card not included)
• Built-in PoE standard (IEEE 802.3af)

This security camera includes Advanced Analytics software that simplifies reviewing saved footage for specialized surveillance tasks. By connecting a camera with Advanced Analytics to a compatible network video recorder (NVR) you can access Advanced Playback functions through the Speco management portal, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area. Advanced Analytics includes motion detection, region entrance, region exiting, region intrusion detection (human/vehicle classification), line crossing detection (human/vehicle classification), video tampering detection, scene change detection, and face detection. It also provides alarm triggers for whenever motion or other events are triggered, and other image settings such as IP address filtering, watermark, video mask, and illegal login lock.

Easy Access To Footage Via Mobile App

View live and stored video from anywhere, anytime through the free SecureGuard mobile app for iOS and Android devices. When the camera is connected to a Speco NVR, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage using a smartphone or tablet. This allows you to monitor your home from any location with an Internet connection, all from the palm of your hand.

Installation Details

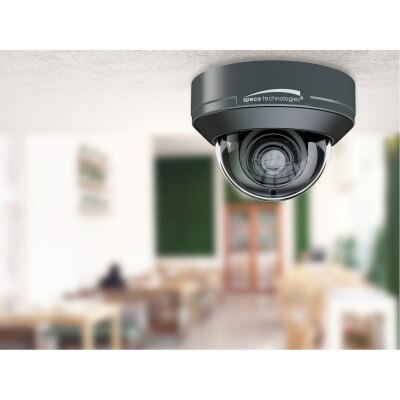

This IP Dome Camera can be installed outdoors or indoors and is IP67 rated for weather resistance. A mounting template and hardware are also included for accurate installation and the camera can be powered by a 12VDC power supply or by Power over Ethernet (all power supply devices sold separately).

Contents

• IP Dome Camera

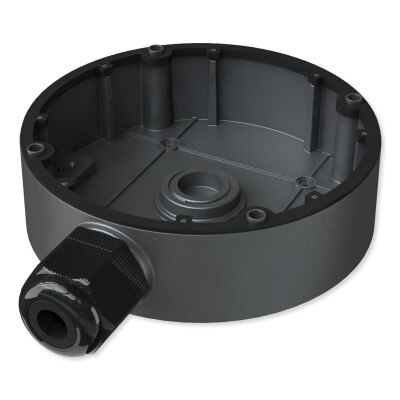

• Junction Box
• Installation Hardware
• Software CD (PC)
• Quick Start Guide

Notes

• This device supports viewing and management via a web browser on a PC.
• 12VDC Power Supply not included (uses PoE as standard).
• Speco network video recorders (NVR) sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #: O4iD2M
• UPC: 030519039819
• Image Sensor: Progressive scan 1/1.8" CMOS
• Maximum Resolution: 2560 x 1440
• Field of View:
• H.FoV: 110° to 48°;
• V.FoV:57° to 27°;
• D.FoV:130° to 56°
• Minimum Illumination: 0.001 lux at F1.3, AGC ON
• White Balance: Auto, Indoor, Outdoor, Manual
• Compensation: True WDR (120dB), BLC, HLC
• Electronic Shutter Speed: 1s to 1/100000s
• DNR: 3D DNR
• Angle Adjustment: Pan: 0° to 345°; Tilt: 0° to 77°; Rotation: 0° to 345°
• Main Resolution: 2560x1440 / 2304x1296 / 1920x1080 / 1280x720 / D1 / CIF / 480 x 240 at 30fps
• Sub Stream: 1280x720 / D1 / CIF / 480 x 240 @30fps
• Third Stream: D1 / CIF / 480 x 240 at 30fps
• Compression:
• Main stream: H.265+ / H.265 / H.264+ / H.264
• Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Video Settings: Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Intensifier® presets, Exposure, Gain, Corridor Pattern, Image flip/mirror
• Bitrate Control: VBR, CBR (64Kbps to 10Mbps)
• Multiple Streaming: 3 streams
• Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS
• DDNS Support: Speco DDNS (free of charge)
• Security: User ID & Password protection, IP/Mac address filtering, digest authentication
• User Access: Max.
• 10 simultaneous users
• Actual number of users may vary depending on bandwidth
• Web Browser Support: Google Chrome, Microsoft Edge, Internet Explorer, Apple Safar
• PC Application: SecureGuard® VMS, SecureGuard® CMS
• Mobile: SecureGuard® App, Speco Blue Mobile App
• Audio Codec: G.711A / G.711U
• Audio Input: Built-In Mic and 3.5mm Input
• Audio Output: 3.5mm Output
• Ethernet: RJ45 Jack, 10/100 Mbps, PoE
• Power: 12VDC input jack
• Video: CVBS out (BNC)
• Audio: Built-in mic, 3.5mm Input, 3.5mm Output
• Card Slot: MicroSD, up to 256GB (not included)
• Alarm: 1CH alarm input; 1CH alarm output
• Reset: Yes
• PoE: Standard (IEEE 802.3af)
• Analytics: Motion detection, region entrance/exiting/intrusion detection (human/vehicle classification), line crossing detection (human/vehicle classification), video tampering detection, scene change detection, face detection
• Alarm Triggers: Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection
• Alarm Events: FTP upload, email upload
• Image Settings: Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction
• Power: PoE, 12VDC (power supply not included)
• Power Consumption: 3.5W (max)
• Operating Temperature: -40°F ~ 140°F
• Operating Humidity: Less than 95 % (non-condensing)
• Unit Dimensions: 5.55" (♦) x 3.94" (H)
• Unit Weight: 2.05 lbs
• Certifications: FCC
• NDAA Compliant: With compatible Speco Blue recorder
• Warranty: 5 Years
