Speaker Wire, 14AWG, 2C, Direct Burial, OFC Shielded, 500'

SKU: WR142SHDB05

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$246.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Cable for High-End Audio Installations

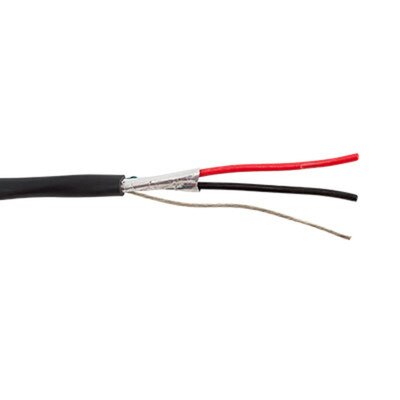

This outdoor Speaker Wire (14AWG, 2C, Direct Burial, OFC Shielded, 500') offers high strand count and has insulated oxygen-free bare copper conductors in an LLDPE jacket for high-end speaker installations. Made for direct burial, the wire features waterproof aluminum foil shielding with a drain wire. It includes the SCP Cable Labeling System for easy identification, and comes in spools of 500 feet.

  • AWG (American Wire Gauge): 14
  • Conductors: 2 (Red and Black for + and -)
  • Jacket Color: Black
  • Package: Spool
  • Applications: High-end professional audio transmissions. Direct burial.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #: 14/2SHDB-500
  • Marking: STRUCTURED CABLE PRODUCTS – – – P/N 14/2SH-DB – – – 2 COND 14 AWG STRANDED SHIELDED PE JKT CMX OUTDOOR / DIRECT BURIAL — CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 3 4 5 6 7 8 9 XXXXFT
  • Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725 EU RoHS 2011/65/EU Compliant
  • Application: Speaker Cable

Construction Characteristics

Conductor

  • Material: Stranded Bare Copper
  • Size: 14AWG X 2C (2.11mm2)
  • Construction: 105/0.16mm (0.0063 inch) ±0.004mm

Insulation

  • Material: PVC
  • Min. Thickness: 0.33mm (0.0130 inch)
  • Avg. Thickness: 0.36mm (0.0142 inch)
  • Diameter: 2.60mm (0.1024") ±0.05mm
  • Colors: Black and Red

Shield

  • Core Wrap: PE Tape
  • Drain Wire: 7/0.20mm (0.0008 inch) ±0.004mm
  • Shield: AL Foil
  • Filler: Waterproof

Jacket

  • Material: LLDPE
  • Min. Thickness: 0.60mm (0.0236 inch)
  • Avg. Thickness: 0.54mm (0.0213 inch)
  • Diameter: 7.20mm (0.2835 inch) ±0.10mm
  • Color: Black

Electrical & Physical Characteristics

  • Rating: 75°C 300V
  • Conductor Resistance: Max 9.2ohm/km at 20°C
  • Insulation Resistance: Min 50M ohm·km at 20°C
  • Dielectric Strength: Min AC1.5KV
  • AC Leakage Current Through Overall Jacket: AC 1500V
  • Twists Per Foot: 2.5
  • Cold Bend Test: -20°C 4 hours; No Cracking

Insulation

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 150 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 80 percent (100°C 168h)

Jacket

  • Unaged:
    • Tensile Strength: 10.8Mpa
    • Elongation: 300 percent
  • Aged:
    • Tensile Strength: 9.2Mpa (100°C 168h)
    • Elongation: 150 percent (100°C 168h)
