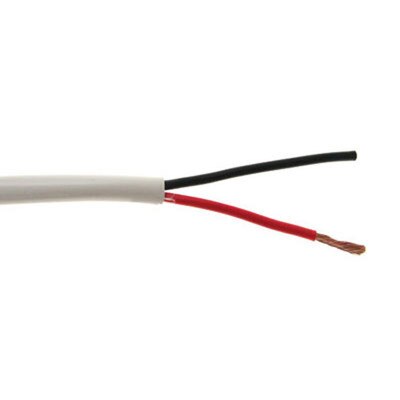

Speaker Wire, 12AWG, 2C, Direct Burial, Oxygen Free, 500'

SKU: WR122SP05

Usually ships in 1-2 days.

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$348.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Cable for High-End Audio Installations

Designed for high-end speaker installations, this indoor/outdoor Speaker Wire (12AWG, 2C, Direct Burial, Oxygen Free, 500') offers high strand count, insulated 99.97 percent oxygen-free bare copper conductors in an unshielded twisted pair configuration. Suitable for in-wall, direct burial, and other versatile applications, the wire is protected by an "easy pull" heavy duty premium UV-treated PVC jacket. It includes the SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy identification. It comes in reels of 500 feet.

  • AWG (American Wire Gauge): 12
  • Conductors: 2 (Red and Black for + and -)
  • Type: (UL) CMR/CL3 c(UL)
  • Jacket Color: White
  • Package: Reel
  • Applications: High-end professional audio transmissions. In-wall rated; sunlight-resistant, outdoor rated; Direct burial, Home theater grade, speaker audio.

NOTICE: This part is a heavy/dimensional product; it is not eligible for free shipping. Wire products are not returnable.

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories SCP can provide all of your cable and accessory solutions.

Specifications

  • Manufacturer Part #: 12/2OFC-HD-WT
  • Marking: STRUCTURED CABLE PRODUCTS – – – 12/2OFC-HD E198137 SCP3 (UL) CL3 C(UL) CMR 2C 12AWG 65 STRAND OXYGEN FREE COPPER INDOOR/OUTDOOR-SUN RES FT4 75C CE RoHS ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 ***M

Construction Characteristics

Conductor

  • Material: Stranded Bare Copper
  • Size: 12AWG x 2C (3.32mm^2)
  • Construction: 65/0.254mm ±0.004mm

Insulation

  • Material: PVC
  • Min. Thickness: 0.33mm
  • Avg. Thickness: 0.36mm
  • Diameter: 3.20mm ±0.05mm
  • Colors: Black and Red

Jacket

  • Material: PVC
  • Min. Thickness: 0.80mm
  • Avg. Thickness: 0.95mm
  • Diameter: 8.3mm ±0.20mm
  • Rip Cord: Nylon
  • Color: White

Electrical & Physical Characteristics

  • Operating Temperature Range: – 20°C + 70°C
  • Conductor Resistance: Max 5.8 ohm/km at 20°C
  • Insulation Resistance: Min 50M ohm*km at 20°C
  • Dielectric Strength: Min AC1.5KV

Insulation

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 100 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 50 percent (100°C 168h)

Jacket

  • Unaged:
    • Tensile Strength: 13.8Mpa
    • Elongation: 100 percent
  • Aged:
    • Tensile Strength: 11.7Mpa (100°C 168h)
    • Elongation: 50 percent (100°C 168h)

Downloads
