Speaker Wire, 16AWG 26-Strand BC, 6C, LED RGB-TW Cable, Unshielded, 500'

Cable For Audio Or LED Strip Lighting Applications

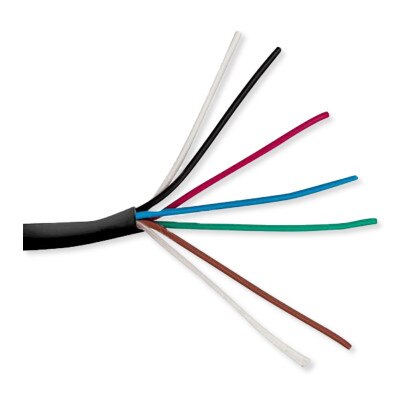

This speaker wire (16AWG, 6C, 26-Strand BC, 500') is designed for general purpose speaker installations and LED strip lighting applications. It's made with stranded bare copper and has a bend radius of Min 15D/120mm. The jacket diameter is 7.0mm (plus or minus 0.20mm) and the insulation is designed with PVC material. The conductor wire colors are black, red, white, green, blue, and brown.

• AWG (American Wire Gauge): 16
• Conductors: 6 (Red, Black, Green, White, Brown, and Blue)
• Jacket Color: Black
• Package: Spool (500 ft.)
• UL 13, Type CL3 c(UL) – EU RoHS 2011/65/EU Compliant

Contents

• Speaker 16AWG LED RGB-TW Cable (500 ft. Wooden Spool)

Quality Installations Deserve Quality Products

Structured Cable Products is a manufacturer of high quality structured wiring products, security, fire alarm, speaker as well as LAN cable and accessories. With over 15 years of manufacturing and distribution experience of quality cable and accessories, SCP can provide all of your cable and accessory solutions.

• Manufacturer Part #: 16/6-RGBTW-BK

Marking:

• STRUCTURED CABLE PRODUCTS: 16/6-RGBTW; E198137 SCP3 (UL) CL3R C(UL) CMR 6C 16AWG; 26 STRAND BC LED RGBTW CABLE-PVC JKT FT4 75C RoHS ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9
• Regulatory:
• UL 13,Type CL3 c(UL)
• EU RoHS 2011/65/EU Compliant
• Application: Speaker Cable

Conductor

• Material: Stranded Bare Copper
• Size: 16AWG X 6C(2.11mm^2)
• Construction: 26/0.25mm ±0.004mm

Insulation

• Material: PVC
• Min. Thickness: 0.28mm (0.0110 inch)
• Avg. Thickness: 0.30mm (1.1811 inch)
• Diameter: 2.0mm ±0.10mm
• Colors: Black, Red, White, Green, Blue, Brown

Jacket

• Material: PVC
• Min. Thickness: 0.60mm (0.0236 inch)
• Avg. Thickness: 0.63mm (0.1181 inch)
• Diameter: 7.00mm (0.2756 inch) ±0.20mm
• Rip Cord: Nylon
• Color: Black

Electrical and Physical Characteristics

• Operating Temperature Range: -4 to 167°F (-20 to 75°C)
• Minimum Installation Temperature: 32 to 104°C (0 to 40°C)
• Conductor Resistance: Max 13.45 ohm/km at 20°C (68°F)
• Insulation Resistance: Min 50Mkm at 20°C (68°F)
• Dielectric Strength: Min AC1.5KV
• Rated Voltage: 300V
• Test Voltage: 800V/min
• Impedance: 30 plus or minus 5 ohms
• Capacitance: 47.6 ±5pf/ft
• Maximum Current: 5.0A @ 25°C (77°F)

»Structured Cable Products 16/6-RGBTW-BK Speaker Wire 16AWG 26-Strand BC 6C LED RGB-TW Cable Unshielded 500 Ft Spec Sheet (.pdf)
