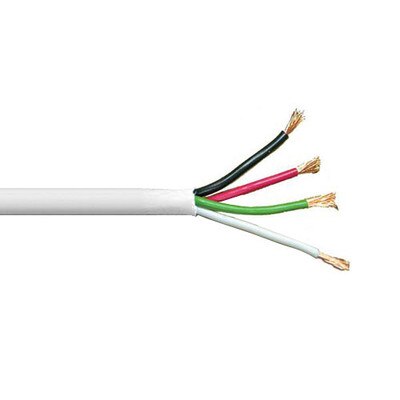

Speaker Wire, 16AWG, 4C, Oxygen Free, 500'

SKU: WR164SP05

Order now and we'll ship same business day (if ordered before 3 pm PST).

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$226.95

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

For High-End Audio Installations

Ultra-flexible high-definition speaker cable. Exceptional performance, sound quality for professional speaker and audio connections.

  • AWG (American Wire Gauge): 16
  • Conductors: 4 (Red, Black, White and Green = Left+, Left-, Right+ and Right-)
  • Type: ETL, CM, CL3
  • Jacket Color: White
  • Package: Reel
  • Applications: High-end audio transmissions, stereo, professional audio and studio requirements, ok with power-limited circuits.

Choosing The Right Speaker Wire

Home Controls offers ultra-flexible high-definition speaker bulk cables. These wires provide exceptional performance, sound quality for professional speaker and audio connections. There are two major considerations when selecting your speaker wire: Gauge and Conductors. Gauge refers to the thickness of a wire; the lower the gauge, the thicker the wire. Wires with a lower gauge contain a thicker copper conductor, so they are better at conducting audio signals. Speaker wires come in 2 Conductor (Red and Black for + and -) or 4 Conductor (Red, Black, White and Green = Left+, Left-, Right+ and Right-). If you need assistance choosing the right wire, then please call our Technical Support Team at 1-800-266-8765 for free product advice!

Specifications

Construction

  • Conductor: 16 AWG 26/30 Stranded Bare Copper
  • Insulation: Polypropylene
  • Insulation: Thickness 0.010" nom.
  • Insulation Diameter: 0.078 nom.
  • Lay Length: 3.5" nom.

Properties

  • Temperature Rating: -20 to 60° C
  • Operating Voltage: 300 Volts max.
  • Capacitance: 22 pf/ft nom.
  • Impedance: 70 Ohms nom.
  • DC Resistance: 4.1 Ohms/M' at 20 at 20° C
  • Flame Rating: UL Vertical Tray
