  • SkylinkHome Wall Switch with Snap-On Remote

SkylinkHome Wall Switch with Snap-On Remote

SKU: SKWE318

Order now and we'll ship same business day (if ordered before 3 pm PST).

$42.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Provides On/Off Local & Remote Control For Wired Loads

The SkylinkHome Wall Switch with Snap-On Remote allows you to wirelessly turn lights on/off with a SkylinkHome transmitter. The Wall Switch (receiver) replaces an existing wall switch and can communicate with up to eight transmitters (additional transmitters sold separately). It is easy to install with no neutral wire needed.The Snap-On Remote (transmitter) allows you to wirelessly operate the switch. It's specifically designed for mounting onto the included wall switch for convenient storage.

  • Turn light on/off with switch or remote
  • Remote snaps onto face of switch for storage
  • Works with light or appliance loads up to 1000W
  • Supports incandescent, CFL or Tungsten light bulbs
  • Wireless range up to 500 feet
  • Installs without neutral wire connection

Contents

  • Wall Switch Receiver (WE-001)
  • Snap-On Remote (TM-318)
  • User Manual
  • Clamshell Pack

IMPORTANT NOTE: Skylink products are not available to ship outside the U.S. Please contact Skylink directly for international orders.

The Skylink Group

The Skylink Group understands the needs and concerns of homeowners in providing a safe haven and comfortable environment for their families. The group offers a comprehensive range of products to meet all home operation and security needs, including wireless alarm systems, emergency dialers, motion detector sets, sensors and alert mechanisms. The group has been manufacturing electronics for over 30 years, and continues to enhance features and test technology on an ongoing basis to ensure reliability.

Specifications

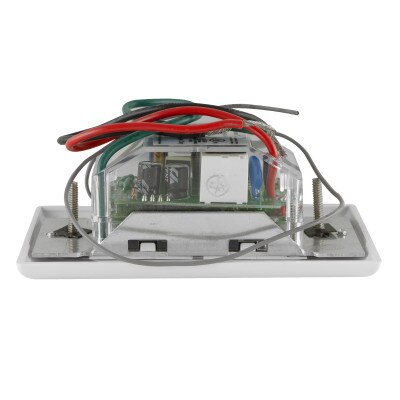

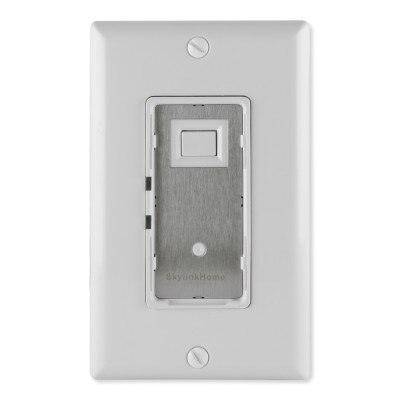

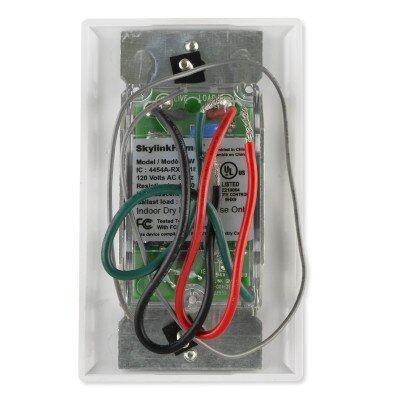

Wall Switch Receiver

  • Input Voltage: 120VAC, 60Hz
  • Standby Current: 0.2mA
  • Minimum Load: 10W
  • Max. Load:
    • Ballast: 500W
    • Tungsten: 600W
    • Resistive: 1000W
  • Operating Frequency: 318 MHz
  • Operational Temperature: -4 to 140° F (-20 to 60° )
  • Humidity: 5 to 95 percent
  • Wireless Range: Up to 500 feet in open area
  • Approvals: FCC, UL, cUL

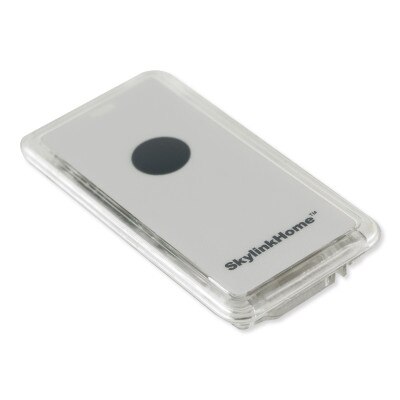

Snap-On Remote Transmitter

  • Wireless Range: Up to 500 feet in an open area
  • Battery: One CR-2032 Lithium Battery (installed)
  • Approvals: FCC

Downloads

»SkylinkHome WR-001 Wall Switch Installation Manual (.pdf)
»SkylinkHome TM-318 Snap-On Remote Installation Manual (.pdf)
